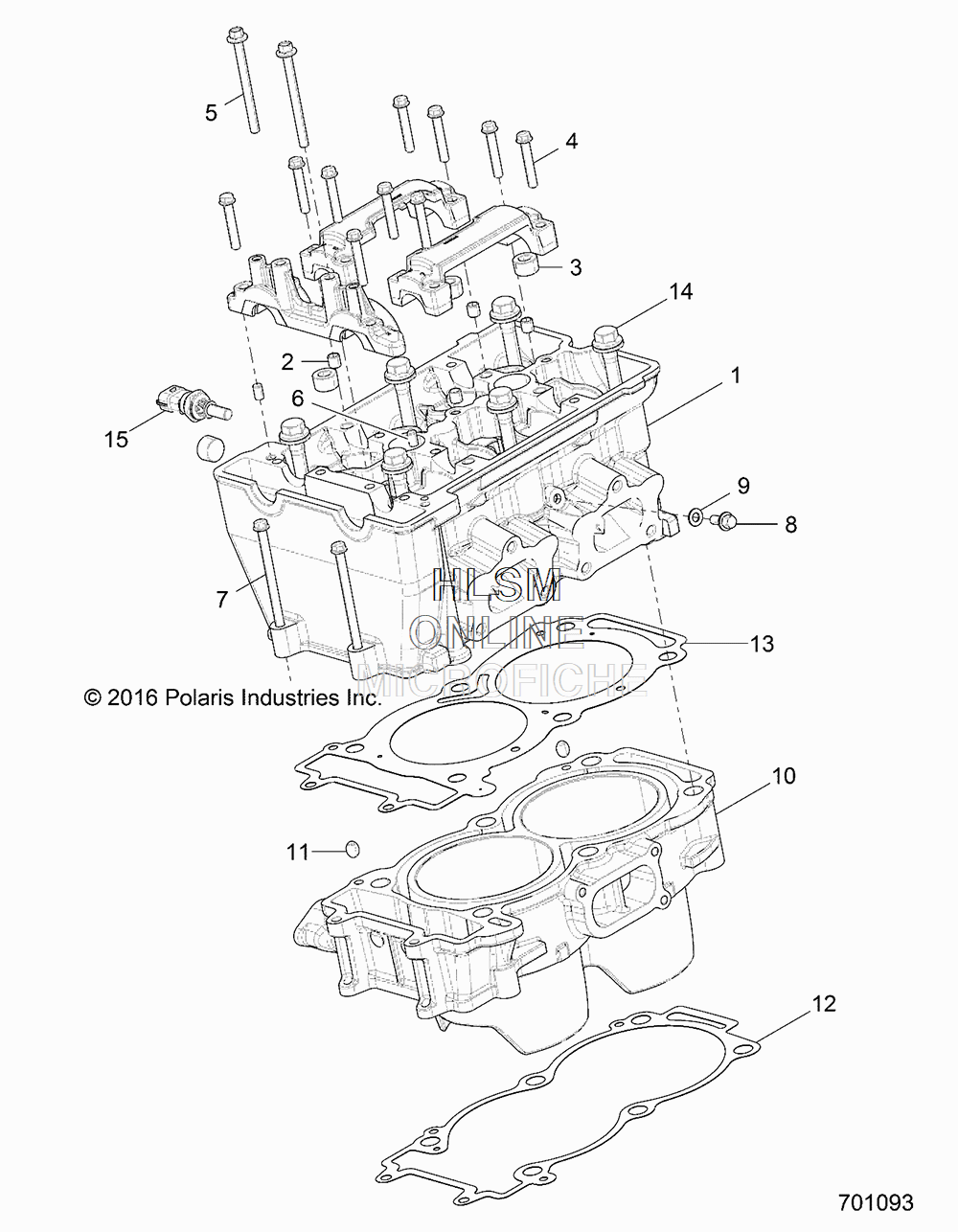

CYLINDER W/ HEAD для Polaris RZR 4 900 EPS (VELOCITY BLUE) [Z17VCE87AB] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    3022798 ASM., CYLINDER HEAD [INCL. 2-6]
    ASM., CYLINDER HEAD [INCL. 2-6]
  • 2
    7662247 DOWEL
    DOWEL
  • 3
    7052413 PLUG
    PLUG
  • 4
    7519870 SCREW
    SCREW
  • 5
    7519871 SCREW
    SCREW
  • 6
    5137624 PIN-DOWEL,M6X10
    PIN-DOWEL,M6X10
  • 7
    7519153 SCREW
    SCREW
  • 8
    7520470 SCREW, BLEED
    SCREW, BLEED
  • 9
    7555998 WASHER, FLAT
    WASHER, FLAT
  • 10
    3023155 ASM., CYLINDER [INCL. 11]
    ASM., CYLINDER [INCL. 11]
  • 11
    5132835 PIN, DOWEL
    PIN, DOWEL
  • 12
    5253037 GASKET, BASE
    GASKET, BASE
  • 13
    5813737 GASKET, CYLINDER HEAD
    GASKET, CYLINDER HEAD
  • 14
    7519123 BOLT, HEAD
    BOLT, HEAD
  • 15
    4010644 SENSOR, THERMOSTER
    SENSOR, THERMOSTER
