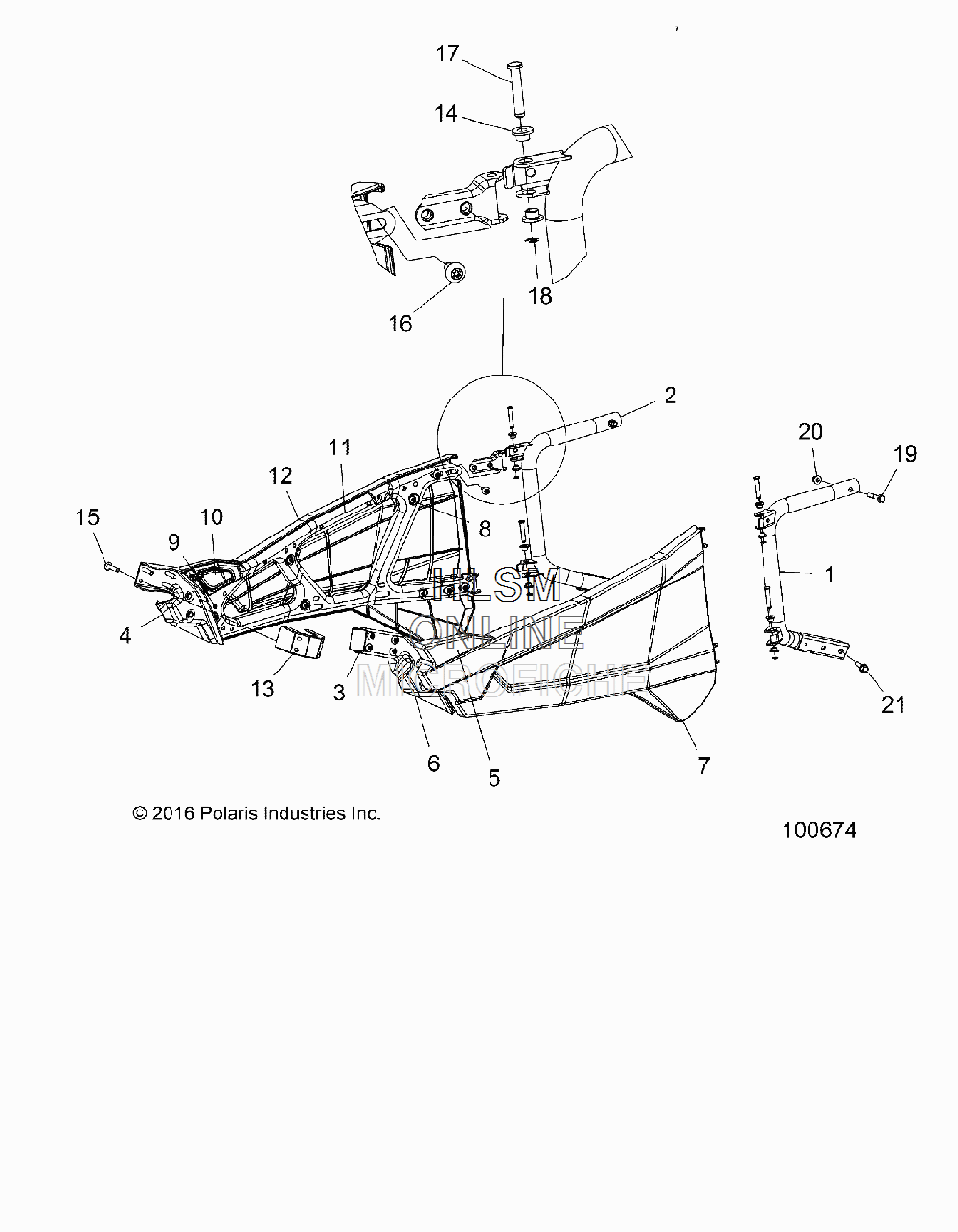

DOORS для Polaris ACE 900 EPS XC [A17DCE87AU] - 2017 года выпуска
-
№АртикулНазвание
-
11022810 WELD-BOLSTER,LH,ACEWELD-BOLSTER,LH,ACE
-
21022811 WELD-BOLSTER,RH,ACEWELD-BOLSTER,RH,ACE
-
31022817 WELD-BRKT,MT,DR LTCH,LH,ACEWELD-BRKT,MT,DR LTCH,LH,ACE
-
41022818 WELD-BRKT,MT,DR LTCH,RH,ACEWELD-BRKT,MT,DR LTCH,RH,ACE
-
52636270 ASM-LATCH,DOOR,LHASM-LATCH,DOOR,LH
-
65257929-458 STAMPING DOOR FRAME,LH,BLKSTAMPING DOOR FRAME,LH,BLK
-
75450636 DOOR SKIN, LHDOOR SKIN, LH
-
87519045 SCR-TX TRUSS-#14X3/4,HI/LO ZBKSCR-TX TRUSS-#14X3/4,HI/LO ZBK
-
97519063 SCR-TXBH-M6X1.0X12 8.8 ZPB D20SCR-TXBH-M6X1.0X12 8.8 ZPB D20
-
102636271 ASM-LATCH,DOOR,RHASM-LATCH,DOOR,RH
-
115257930-458 STAMPING DOOR FRAME,RH,BLKSTAMPING DOOR FRAME,RH,BLK
-
125450638 DOOR SKIN,RHDOOR SKIN,RH
-
135140136 MACH-CLAMP,DOOR,ACE INSIDEMACH-CLAMP,DOOR,ACE INSIDE
-
135140310 MACH-CLAMP,DOOR,ACEMACH-CLAMP,DOOR,ACE
-
145450592 BUSHING-DOOR PIVOTBUSHING-DOOR PIVOT
-
157516732 SCR-SH-M8X1.25X30 8.8 ZPCSCR-SH-M8X1.25X30 8.8 ZPC
-
167519997 SCR-TXTH-M8X1.25X20 8.8 ZB3 P3SCR-TXTH-M8X1.25X20 8.8 ZB3 P3
-
177662138 PIN-DOOR HINGEPIN-DOOR HINGE
-
187710466 E-CLIP,M6,0600101E-CLIP,M6,0600101
-
197520367 SCREWSCREW
-
207547317 NUT, FLANGENUT, FLANGE
-
217519243 SCREWSCREW
