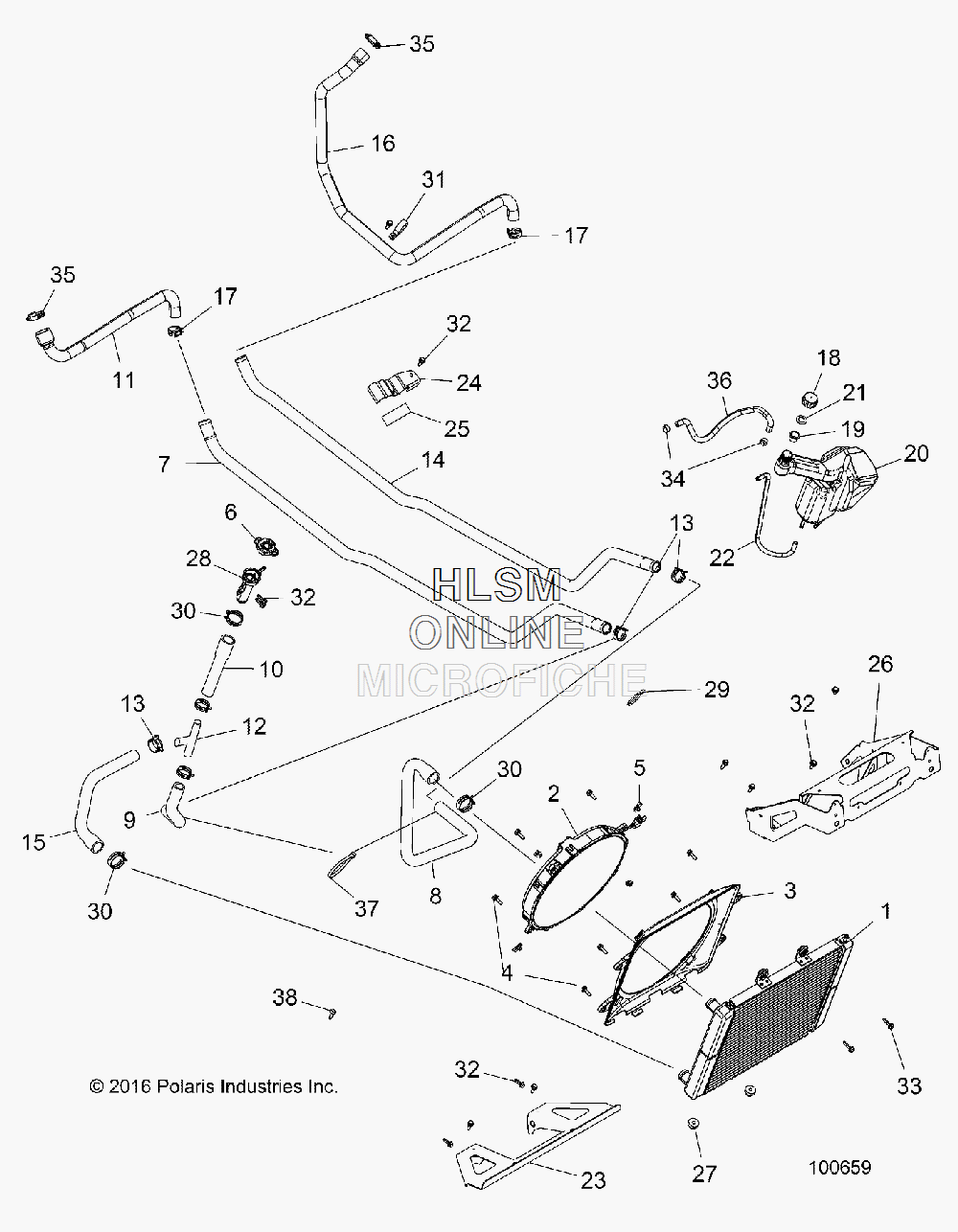

COOLING SYSTEM для Polaris ACE 900 EPS XC [A17DCE87AU] - 2017 года выпуска
-
№АртикулНазвание
-
11241093 ASM-RADIATOR,COREASM-RADIATOR,CORE
-
22410413 FAN-11" ASSEMBLY,ATV,PKRDFAN-11" ASSEMBLY,ATV,PKRD
-
35453434 SHROUD-FAN,RADIATORSHROUD-FAN,RADIATOR
-
47516822 SCR-M6X1.0X20-HX/FL-Y/DSCR-M6X1.0X20-HX/FL-Y/D
-
57547366 CLIP-"U",M6.0X1.0CLIP-"U",M6.0X1.0
-
61240300 CAP-PRESSURECAP-PRESSURE
-
75140812 TUBE-COOLANT,3/4,ENG INTUBE-COOLANT,3/4,ENG IN
-
85416015 HOSE-RADIATOR,COOLANT INHOSE-RADIATOR,COOLANT IN
-
95416006 HOSE-COOLANT,FRONTHOSE-COOLANT,FRONT
-
105416053 HOSE-COOLANT,FRONTHOSE-COOLANT,FRONT
-
115415528 HOSE-COOLANT,REAR,ENG INHOSE-COOLANT,REAR,ENG IN
-
127052093 CONNECTOR-TEE, 3/4", BARBCONNECTOR-TEE, 3/4", BARB
-
137080841 SPRINGBAND-CLAMP 27/12,GREENSPRINGBAND-CLAMP 27/12,GREEN
-
145140811 TUBE-COOLANT,3/4,ENG OUTTUBE-COOLANT,3/4,ENG OUT
-
155416014 HOSE-RADIATOR,COOLANT OUTHOSE-RADIATOR,COOLANT OUT
-
165415527 HOSE-COOLANT,REAR,ENG OUTHOSE-COOLANT,REAR,ENG OUT
-
177080841 SPRINGBAND-CLAMP 27/12,GREENSPRINGBAND-CLAMP 27/12,GREEN
-
185430743 CAP-OVER FLOW BOTTLE,DRILLEDCAP-OVER FLOW BOTTLE,DRILLED
-
195433774 PLUG-CAP 9X(GREEN) FLEX TEMPPLUG-CAP 9X(GREEN) FLEX TEMP
-
205452401 TANK-COOLANTTANK-COOLANT
-
215810279 GASKET-OVERFLOW CAPGASKET-OVERFLOW CAP
-
228450003-47 HOSE-POLY,CLEAR,3/8 OD,1/4 IDHOSE-POLY,CLEAR,3/8 OD,1/4 ID
-
235262812-329 MNT-RADIATOR,LOWER,ECOATMNT-RADIATOR,LOWER,ECOAT
-
245258169 CLAMP-COOLANT LINESCLAMP-COOLANT LINES
-
255810290 PAD-BATTERYPAD-BATTERY
-
265262813-329 MNT-RADIATOR,UPPER,E-COATMNT-RADIATOR,UPPER,E-COAT
-
275410584 BUSHING-MOUNT,LOWER RADIATORBUSHING-MOUNT,LOWER RADIATOR
-
285439079 FILLER-REMOTE,COOLANT,SMALLFILLER-REMOTE,COOLANT,SMALL
-
297080761 STRAP-PANDUIT,14"STRAP-PANDUIT,14"
-
307080843 SPRINGBAND-CLAMP 32/12,BROWNSPRINGBAND-CLAMP 32/12,BROWN
-
317080851 CLAMP-HOSE,1.312 VINYL COATEDCLAMP-HOSE,1.312 VINYL COATED
-
327518529 SCR-M6X1.0X20,HXHD,FLG,TDFM,BLSCR-M6X1.0X20,HXHD,FLG,TDFM,BL
-
337519342 SCR-TFHFL-M6X1.0X25,ZODSCR-TFHFL-M6X1.0X25,ZOD
-
347080003 HOSE CLAMP, REDHOSE CLAMP, RED
-
357081192 CLAMP-HOSE(WORM DR)25-40MMCLAMP-HOSE(WORM DR)25-40MM
-
368450120-40 LINELINE
-
377080924 TIEWRAP-EVAPTIEWRAP-EVAP
-
387519290 SCR-TXPH-#14X3/4 HI/LO CLRSCR-TXPH-#14X3/4 HI/LO CLR
