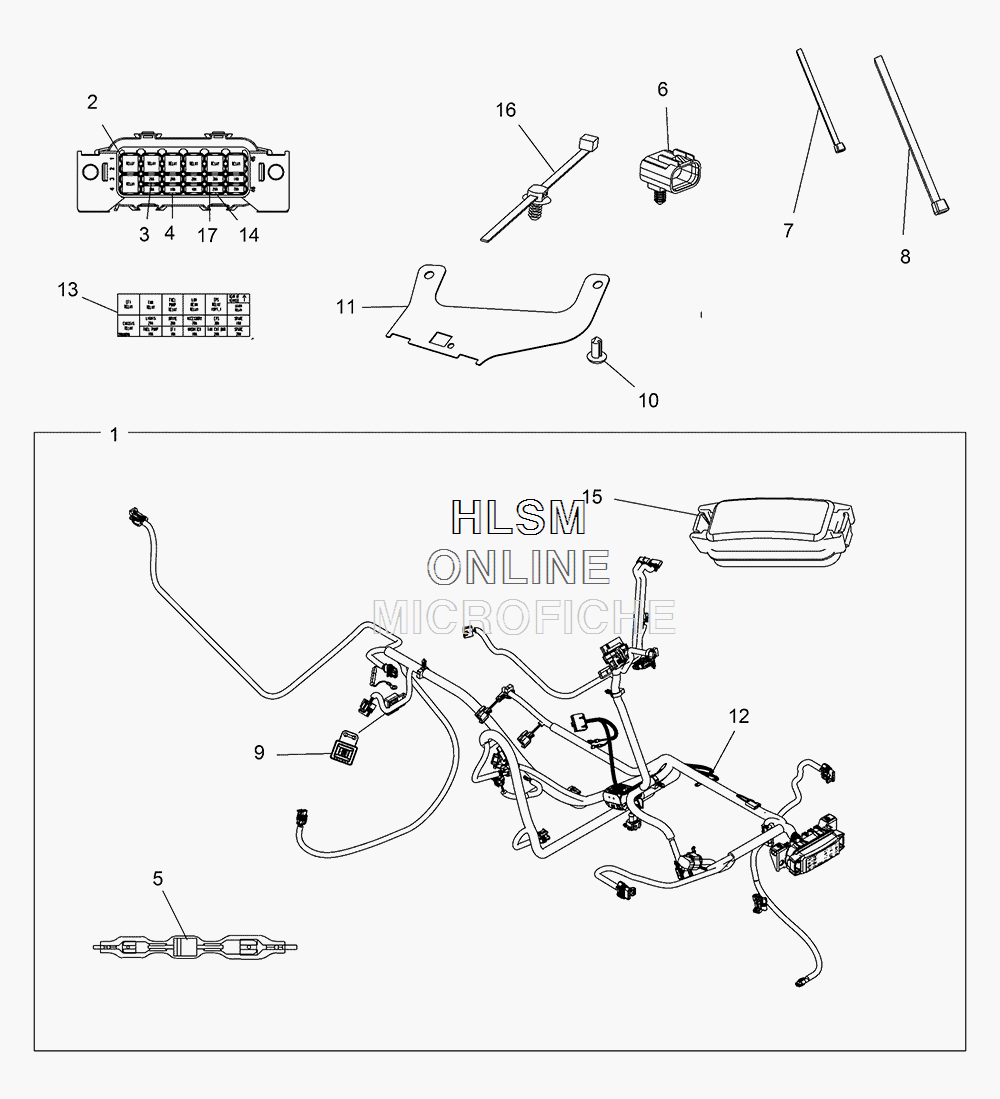

WIRE HARNESS для Polaris SPORTSMAN XP® 1000 (HAVASU RED PEARL) [A16SXE95AR] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    2412996 HARNESS, MAIN ((INCL. 1-6,9,12-15, COVER))
    HARNESS, MAIN ((INCL. 1-6,9,12-15, COVER))
  • 1
    2878496 KIT, HARNESS, ENGINE TEMP
    KIT, HARNESS, ENGINE TEMP
  • 1
    2878498 KIT, HARNESS, TPS
    KIT, HARNESS, TPS
  • 2
    4011283 RELAY
    RELAY
  • 3
    2434017 FUSE, 20AMP
    FUSE, 20AMP
  • 4
    2434016 FUSE, 10AMP
    FUSE, 10AMP
  • 5
    2411035 DIODE, 6AMP
    DIODE, 6AMP
  • 6
    4012170 COVER, DIAGNOSTIC
    COVER, DIAGNOSTIC
  • 7
    7080138 CABLE TIE
    CABLE TIE
  • 8
    7080492 CABLE TIE
    CABLE TIE
  • 9
    4014055 MODULE, RESISTOR
    MODULE, RESISTOR
  • 10
    7670125 CLIP, PUSH ON
    CLIP, PUSH ON
  • 11
    5257893 BRACKET, FUSE BLOCK
    BRACKET, FUSE BLOCK
  • 11
    7518914 SCREW
    SCREW
  • 11
    7081305 CLIP
    CLIP
  • 12
    2202607 KIT, FUSIBLE LINK, .8 MM
    KIT, FUSIBLE LINK, .8 MM
  • 12
    2202670 KIT, FUSIBLE LINK, 1.0 MM
    KIT, FUSIBLE LINK, 1.0 MM
  • 13
    7180678 LABEL, FUSE BOX
    LABEL, FUSE BOX
  • 14
    4011372 BREAKER, CIRCUIT, 20 AMP
    BREAKER, CIRCUIT, 20 AMP
  • 15
    4015011 COVER, FUSEBOX
    COVER, FUSEBOX
  • 16
    7081496 CLIP, ROUTING
    CLIP, ROUTING
  • 17
    2434015 FUSE, MAIN, 30 AMP
    FUSE, MAIN, 30 AMP
