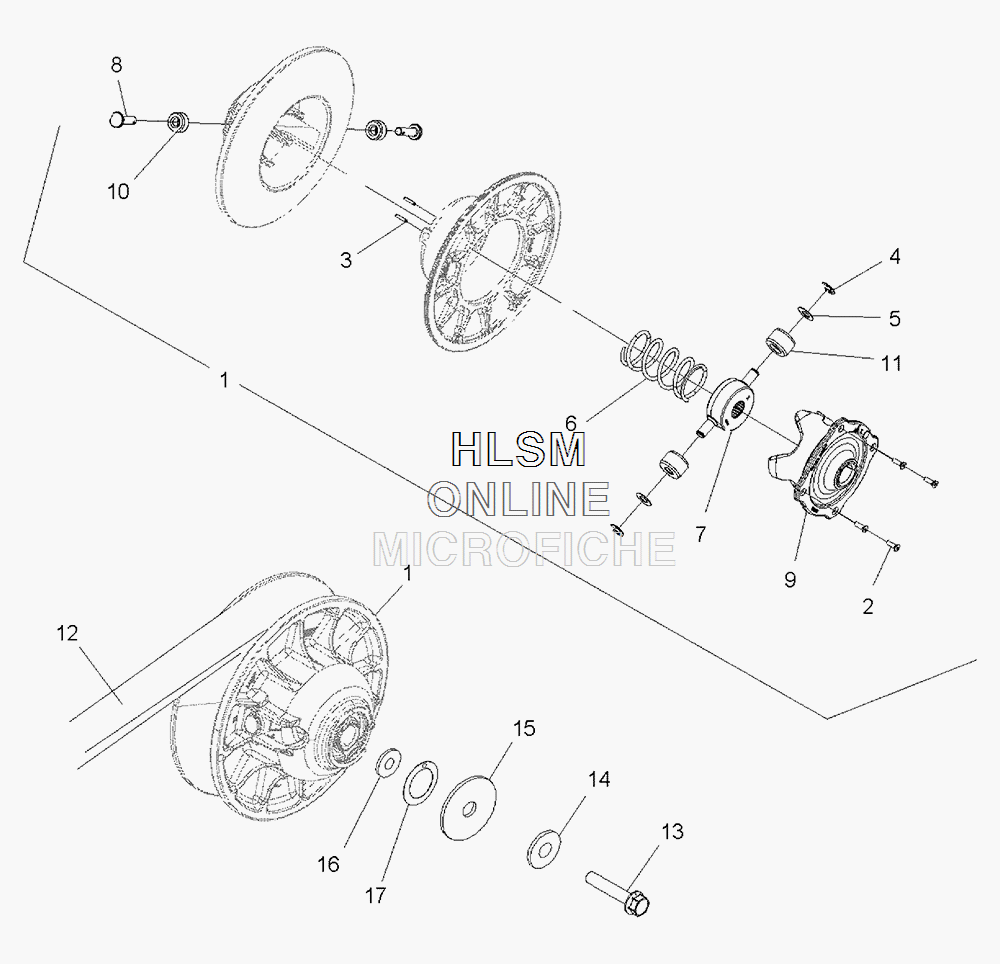

CLUTCH - SECONDARY для Polaris SPORTSMAN XP® 1000 (HAVASU RED PEARL) [A16SXE95AR] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    1323101 CLUTCH, DRIVEN ((INCL. 2-11))
    CLUTCH, DRIVEN ((INCL. 2-11))
  • 2
    3234754 SCREW
    SCREW
  • 3
    3234202 PIN, SPRING SLOTTED
    PIN, SPRING SLOTTED
  • 4
    3235087 RING, RETAINING
    RING, RETAINING
  • 5
    3234642 WASHER, THRUST
    WASHER, THRUST
  • 6
    7044086 SPRING, DRIVEN
    SPRING, DRIVEN
  • 7
    3235089 SPIDER
    SPIDER
  • 8
    3234201 PIN, ROLLER
    PIN, ROLLER
  • 9
    3235590 ASM., CAM
    ASM., CAM
  • 10
    5434534 ROLLER, CLUTCH
    ROLLER, CLUTCH
  • 11
    3235093 ROLLER, CLUTCH
    ROLLER, CLUTCH
  • 12
    3211160 BELT, DRIVE
    BELT, DRIVE
  • 13
    7519210 BOLT, FLANGE
    BOLT, FLANGE
  • 14
    5137414 WASHER, FLAT
    WASHER, FLAT
  • 15
    5137415 WASHER, FLAT
    WASHER, FLAT
  • 16
    7556580 WASHER, FLAT
    WASHER, FLAT
  • 17
    7556553 WASHER, THRUST
    WASHER, THRUST
