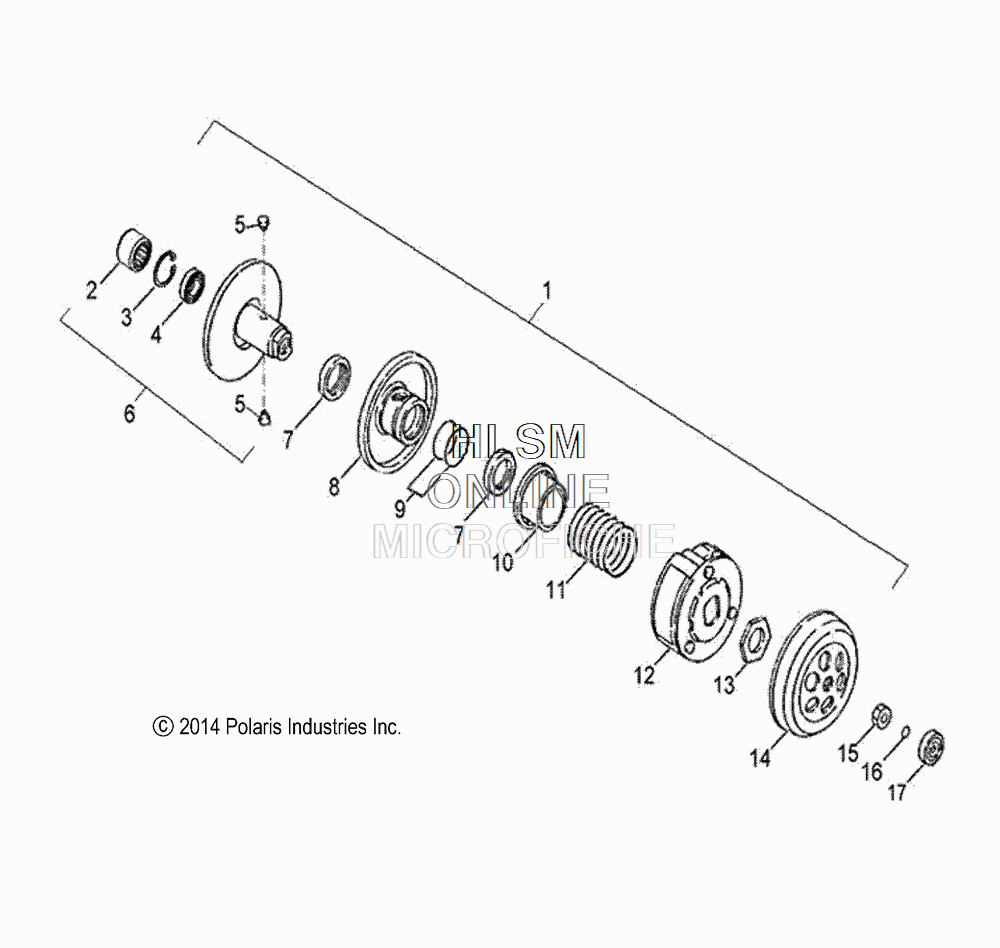

CLUTCH - SECONDARY для Polaris SPORTSMAN 90 [A16YAF09AA] - 2016 года выпуска
-
№АртикулНазвание
-
10453454 ASM., DRIVEN CLUTCH [INCL. 6,7-14]ASM., DRIVEN CLUTCH [INCL. 6,7-14]
-
20453601 BEARING, NEEDLEBEARING, NEEDLE
-
30453600 CIRCLIPCIRCLIP
-
40453599 BEARINGBEARING
-
50453598 PIN, GUIDEPIN, GUIDE
-
60453597 ASM., SHEAVE, DRIVEN [INCL. 2-5]ASM., SHEAVE, DRIVEN [INCL. 2-5]
-
70450211 SEAL, OILSEAL, OIL
-
80453596 SHEAVE, MOVEABLESHEAVE, MOVEABLE
-
90453595 O-RINGO-RING
-
100453589 SEAL, COLLARSEAL, COLLAR
-
110453590 SPRING, CLUTCHSPRING, CLUTCH
-
120453592 CARRIER, CLUTCHCARRIER, CLUTCH
-
130453593 NUTNUT
-
140453594 COVER, CLUTCHCOVER, CLUTCH
-
150450224 NUTNUT
-
160450226 O-RINGO-RING
-
170450225 BEARINGBEARING
