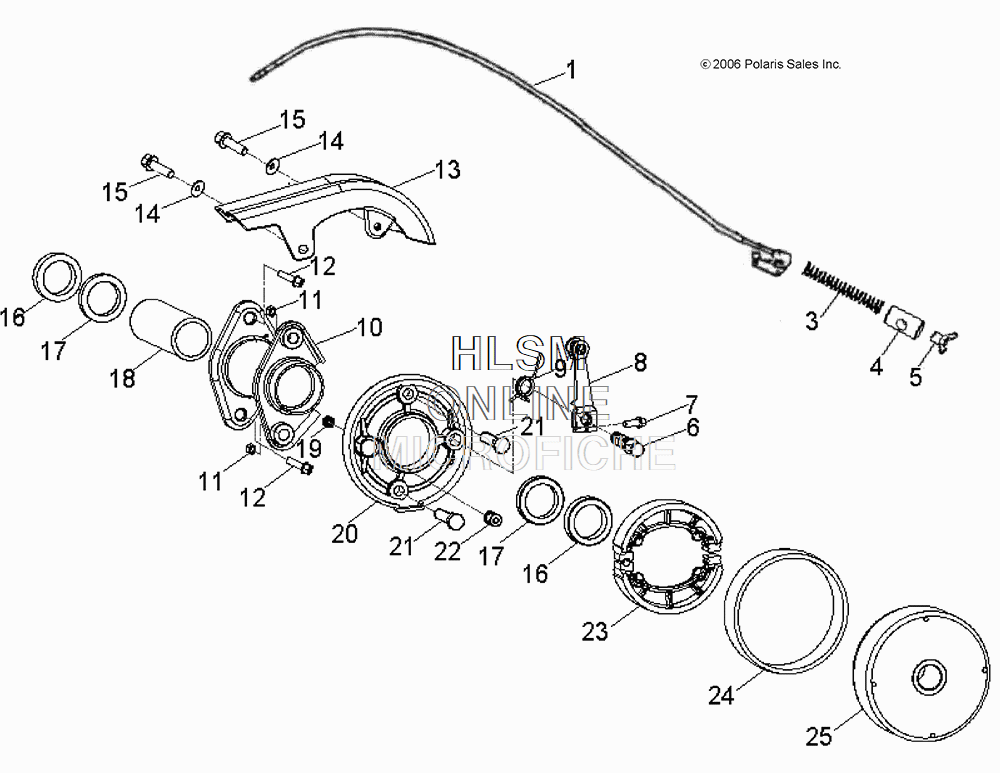

BRAKE - REAR для Polaris SPORTSMAN 90 [A16YAF09AA] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    0454015 CABLE, BRAKE, REAR
    CABLE, BRAKE, REAR
  • 3
    0450435 SPRING, CABLE, REAR
    SPRING, CABLE, REAR
  • 4
    0453094 SPACER, BRAKE CABLE, REAR
    SPACER, BRAKE CABLE, REAR
  • 5
    0451079 NUT, ADJUST, BRAKE
    NUT, ADJUST, BRAKE
  • 6
    0450431 SHAFT, CAM, REAR
    SHAFT, CAM, REAR
  • 7
    0450433 BOLT
    BOLT
  • 8
    0454033 ARM, BRAKE, REAR
    ARM, BRAKE, REAR
  • 9
    0450453 SPRING
    SPRING
  • 10
    0451683-067 HOUSING, AXLE, REAR, BLACK
    HOUSING, AXLE, REAR, BLACK
  • 11
    0453706 NUT, HEX, FLANGE
    NUT, HEX, FLANGE
  • 12
    0453707 BOLT
    BOLT
  • 13
    0454264 COVER, SPROCKET, REAR
    COVER, SPROCKET, REAR
  • 14
    0452198 WASHER
    WASHER
  • 15
    0452030 BOLT
    BOLT
  • 16
    0450430 SEAL, OIL
    SEAL, OIL
  • 17
    0454032 BEARING
    BEARING
  • 18
    0450428 TUBE, SPACER
    TUBE, SPACER
  • 19
    0450881 NUT
    NUT
  • 20
    0450440 PLATE, BRAKE, REAR
    PLATE, BRAKE, REAR
  • 21
    0450452 BOLT
    BOLT
  • 22
    0450854 SHAFT, FIXED, BRAKE, REAR
    SHAFT, FIXED, BRAKE, REAR
  • 23
    0450434 SHOE, BRAKE, REAR
    SHOE, BRAKE, REAR
  • 24
    0450442 RUBBER, PROTECTIVE
    RUBBER, PROTECTIVE
  • 25
    0450441 DRUM, BRAKE, REAR
    DRUM, BRAKE, REAR
