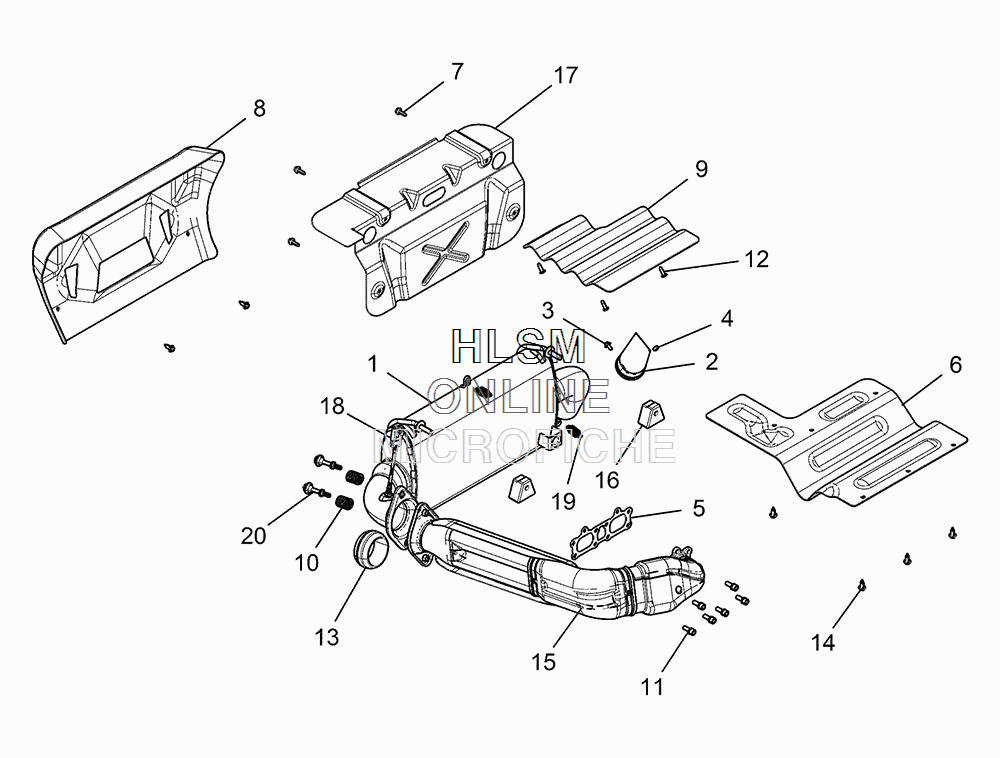

EXHAUST для Polaris RZR XP 4 1000 EPS ELECTRIC BLUE METALLIC [Z16VFE99AF] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    1262595 ASM., SILENCER (INCL. 2-4)
    ASM., SILENCER (INCL. 2-4)
  • 2
    1262390 ARRESTOR, SPARK
    ARRESTOR, SPARK
  • 3
    7517257 SCREW
    SCREW
  • 4
    7547120 NUT
    NUT
  • 5
    3610184 GASKET, EXHAUSTSEAL
    GASKET, EXHAUSTSEAL
  • 6
    5814348 SHIELD, FOIL, FRONT BOX
    SHIELD, FOIL, FRONT BOX
  • 7
    7518529 SCREW
    SCREW
  • 8
    5813958 SHIELD, FOIL, REAR FASCIA
    SHIELD, FOIL, REAR FASCIA
  • 9
    5814000 SHIELD, FOIL, ACCESS PANEL
    SHIELD, FOIL, ACCESS PANEL
  • 10
    7044274 SPRING, SPHERICAL, EXHAUST
    SPRING, SPHERICAL, EXHAUST
  • 11
    7518984 SCREW
    SCREW
  • 12
    7519045 SCREW
    SCREW
  • 13
    3610236 GASKET
    GASKET
  • 14
    7661855 RIVET
    RIVET
  • 15
    1262599 ASM., HEADPIPE
    ASM., HEADPIPE
  • 16
    5450115 MOUNT, ISOLATOR
    MOUNT, ISOLATOR
  • 17
    5260102 SHIELD, REAR
    SHIELD, REAR
  • 18
    4013979 SENSOR, OXYGEN
    SENSOR, OXYGEN
  • 19
    7041789 SPRING, EXHAUST
    SPRING, EXHAUST
  • 20
    7520079 STUD, SPHERICAL, EXHAUST
    STUD, SPHERICAL, EXHAUST
