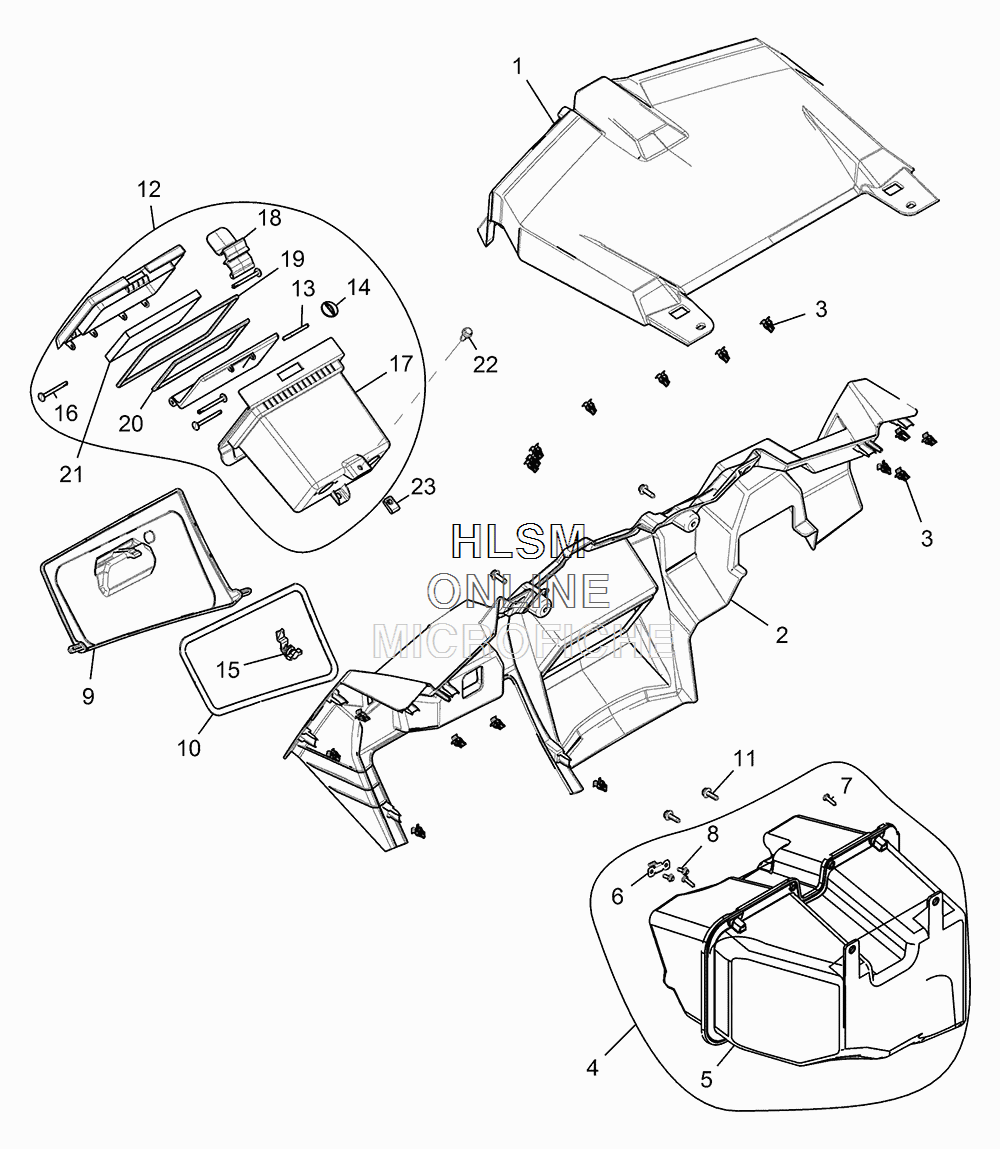

DASH AND GLOVEBOX для Polaris RZR XP 4 1000 EPS ELECTRIC BLUE METALLIC [Z16VFE99AF] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    2634956-070 ASM., UPPER IP, BLACK (INCL. QTY7OF REF. 3)
    ASM., UPPER IP, BLACK (INCL. QTY7OF REF. 3)
  • 2
    2635657-070 ASM., LOWER IP, WARNING DECAL, MP, BLACK (INCL. WARNING DECALS, QTY 10 OF REF. 3)
    ASM., LOWER IP, WARNING DECAL, MP, BLACK (INCL. WARNING DECALS, QTY 10 OF REF. 3)
  • 3
    7519806 CLIP, DASH, TRIM, METAL
    CLIP, DASH, TRIM, METAL
  • 4
    2635460 ASM., GLOVE BOX (INCL. 5-8)
    ASM., GLOVE BOX (INCL. 5-8)
  • 5
    5439796-070 GLOVEBOX, BLACK
    GLOVEBOX, BLACK
  • 6
    5259660 BRACKET, GLOVEBOX, LATCH
    BRACKET, GLOVEBOX, LATCH
  • 7
    7512026 SCREW
    SCREW
  • 8
    7518641 SCREW
    SCREW
  • 9
    5451897-070 DOOR, GLOVEBOX, TPO, BLACK
    DOOR, GLOVEBOX, TPO, BLACK
  • 10
    5415208 SEAL, GLOVEBOX
    SEAL, GLOVEBOX
  • 11
    7519342 SCREW
    SCREW
  • 12
    2635161 ASM., DOUBLE DIN (INCL. 13-21)
    ASM., DOUBLE DIN (INCL. 13-21)
  • 13
    5451236 PIN, HINGE
    PIN, HINGE
  • 14
    5412981 PLUG, COMPARTMENT
    PLUG, COMPARTMENT
  • 15
    7081425 LATCH, 1/4 TURN
    LATCH, 1/4 TURN
  • 16
    5439091 PIN, HINGE, GLOVEBOX
    PIN, HINGE, GLOVEBOX
  • 17
    5439789-070 PANEL, DOUBLE DIN, BLACK
    PANEL, DOUBLE DIN, BLACK
  • 18
    5450654 LATCH, LID, DIN
    LATCH, LID, DIN
  • 19
    5522021 SEAL, DIN, OUTER
    SEAL, DIN, OUTER
  • 20
    5522022 SEAL, DIN, INNER
    SEAL, DIN, INNER
  • 21
    5814055 FOAM, DOUBLE DIN
    FOAM, DOUBLE DIN
  • 22
    7519650 SCREW
    SCREW
  • 23
    7547674 NUT, U-TYPE
    NUT, U-TYPE
