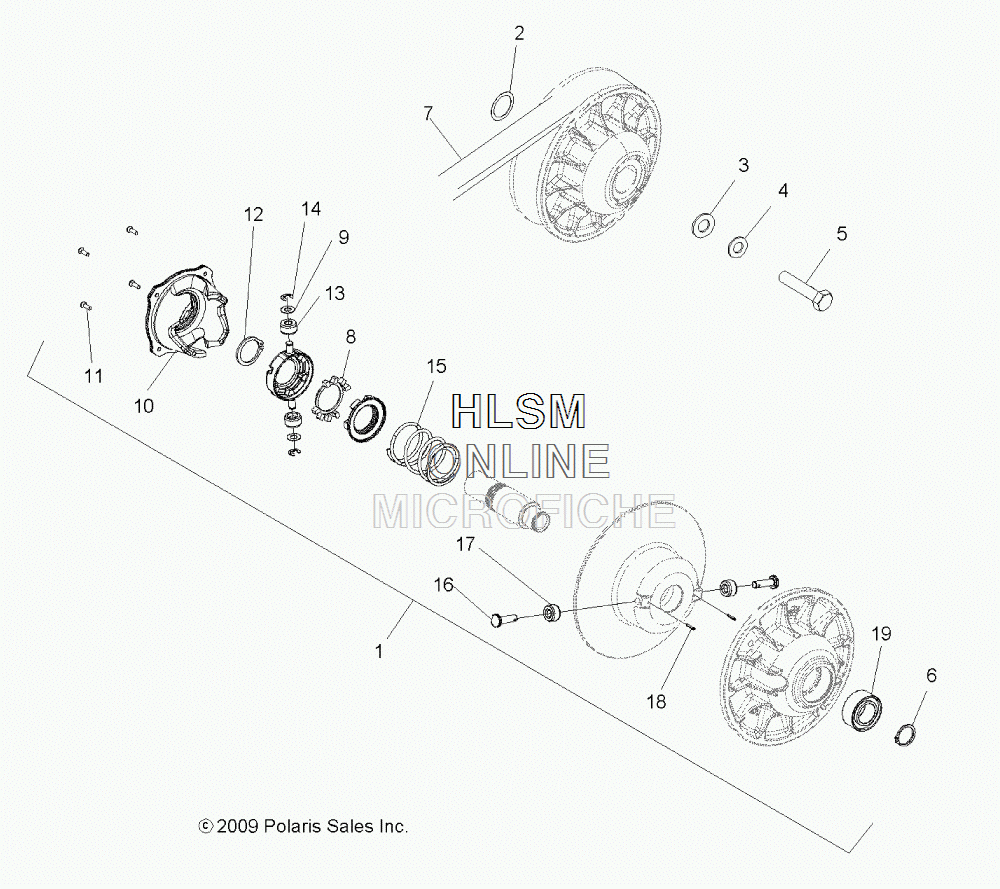

CLUTCH - SECONDARY (EBS) для Polaris SPORTSMAN TOURING 570 SAGE GREEN [A15SDA57AA] - 2015 года выпуска`
-
№АртикулНазвание
-
11323248 ASM., DRIVEN CLUTCH, EBS, DAMPED (INCL. 6,8-19)ASM., DRIVEN CLUTCH, EBS, DAMPED (INCL. 6,8-19)
-
27556120 BUSHING, 16 GAUGEBUSHING, 16 GAUGE
-
27556813 BUSHING, 7 GAUGEBUSHING, 7 GAUGE
-
35250562 WASHER, DOMEDWASHER, DOMED
-
47552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
57515327 BOLTBOLT
-
63234205 RING, RETAININGRING, RETAINING
-
73211113 BELT, DRIVEBELT, DRIVE
-
87710564 RETAINER, SPRING, INNERRETAINER, SPRING, INNER
-
97556226 WASHER, THRUSTWASHER, THRUST
-
103234356 ASM., CAMASM., CAM
-
113234192 SCREW, CAPSCREW, CAP
-
127710522 RING, RETAININGRING, RETAINING
-
133234207 ROLLER, CLUTCHROLLER, CLUTCH
-
147710523 E-RING, RETAININGE-RING, RETAINING
-
153234451 SPRING, COMPRESSION, REDSPRING, COMPRESSION, RED
-
163234201 PIN, ROLLERPIN, ROLLER
-
173234197 ROLLER, CLUTCHROLLER, CLUTCH
-
183234202 PIN, SPRING SLOTTEDPIN, SPRING SLOTTED
-
193234203 BEARING, BALLBEARING, BALL
