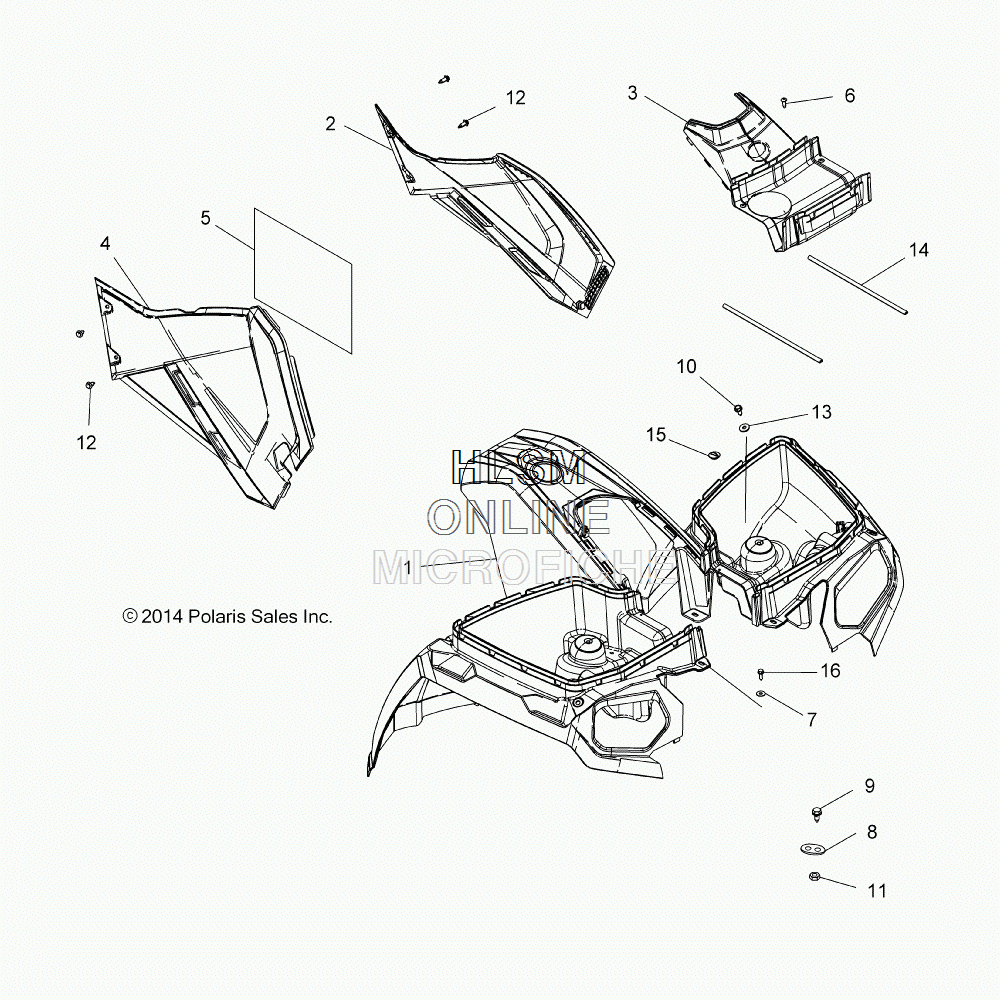

CAB - FRONT W/ SIDE PANELS для Polaris SPORTSMAN TOURING 570 SAGE GREEN [A15SDA57AA] - 2015 года выпуска`
-
№АртикулНазвание
-
12634163-498 ASM., CAB, FRONT, SAGE BRUSH GREEN METALLIC (AA) (INCL. WARNING DECALS)ASM., CAB, FRONT, SAGE BRUSH GREEN METALLIC (AA) (INCL. WARNING DECALS)
-
25450530-498 PANEL, SIDE, LEFT HAND, SAGE BRUSH GREEN METALLIC (AA)PANEL, SIDE, LEFT HAND, SAGE BRUSH GREEN METALLIC (AA)
-
35439069-498 COVER, FRONT, SAGE BRUSH GREEN METALLIC (AA)COVER, FRONT, SAGE BRUSH GREEN METALLIC (AA)
-
42635299-498 ASM., PANEL/FOIL, RIGHT HAND, SAGE BRUSH GREEN METALLIC (INCL. 5) (AA)ASM., PANEL/FOIL, RIGHT HAND, SAGE BRUSH GREEN METALLIC (INCL. 5) (AA)
-
55814020 FOIL, SIDE PANELFOIL, SIDE PANEL
-
67519045 SCREWSCREW
-
77555859 WASHER, FLATWASHER, FLAT
-
85258497 BRACKET, PLUG MOUNTBRACKET, PLUG MOUNT
-
97512193 BOLT, CARRIAGEBOLT, CARRIAGE
-
107515399 SCREWSCREW
-
117542153 NUT, FLANGED, NYLOKNUT, FLANGED, NYLOK
-
127661855 RIVETRIVET
-
137555960 WASHER, FLATWASHER, FLAT
-
145521697-350 SEAL, BULBSEAL, BULB
-
155412981 PLUG, COMPARTMENTPLUG, COMPARTMENT
-
167512232 SCREWSCREW
