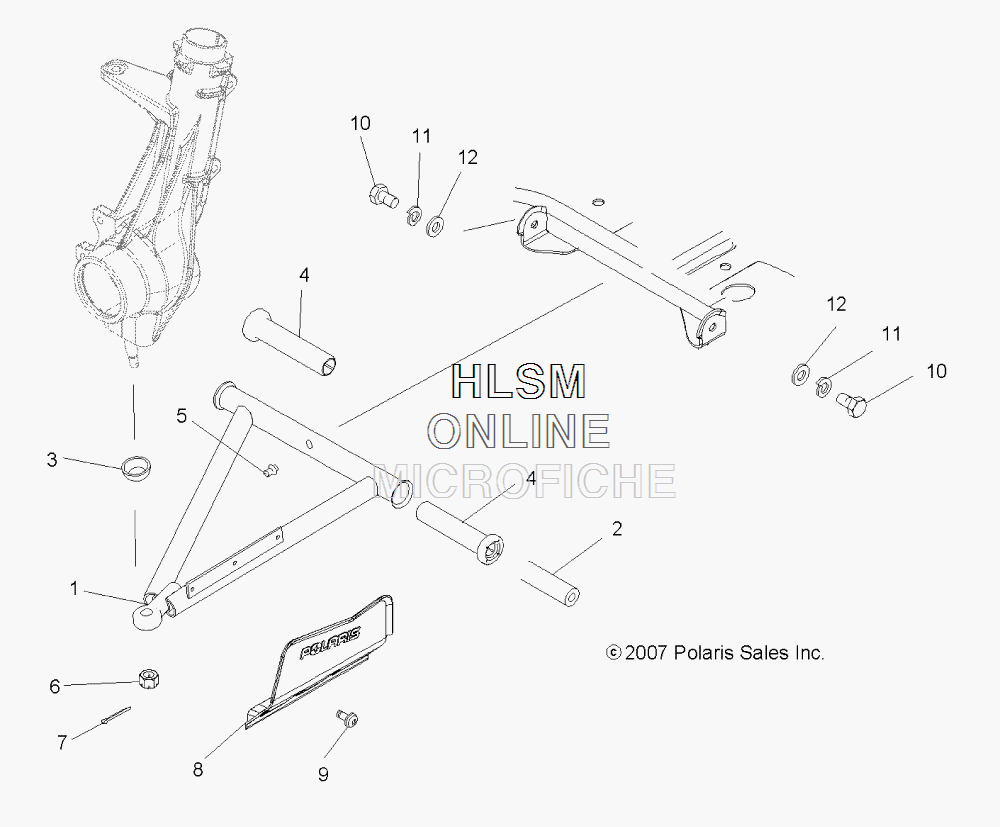

A-ARMS- MID DRIVE для Polaris SPORTSMAN TOURING 570 EPS (BRIGHT WHITE) [A15SDE57AJ] - 2015 года выпуска`

№

Артикул

Название
1

2202906 KIT, A-FRAME, LEFT HAND (INCL. 1,2,4,7,10,11,12)

KIT, A-FRAME, LEFT HAND (INCL. 1,2,4,7,10,11,12)

27 040 ₽
1

2202907 KIT, A-FRAME, RIGHT HAND (INCL. 1,2,4,7,10,11,12)

KIT, A-FRAME, RIGHT HAND (INCL. 1,2,4,7,10,11,12)

27 040 ₽
2

5133806 SHAFT, A-ARM

SHAFT, A-ARM

3 750 ₽
3

5412658 BOOT, BALL JOINT, GREASELESS

BOOT, BALL JOINT, GREASELESS

630 ₽
4

5436973 BUSHING, A-ARM, LONG

BUSHING, A-ARM, LONG

1 870 ₽
5

7080433 FITTING, LUBRICATION

FITTING, LUBRICATION

250 ₽
6

7542438 NUT, CASTLE

NUT, CASTLE

340 ₽
7

7661203 PIN, COTTER

PIN, COTTER

110 ₽
8

5435028-070 SHIELD, CV FRONT, BLACK, LEFT HAND

SHIELD, CV FRONT, BLACK, LEFT HAND

3 950 ₽
8

5435029-070 SHIELD, CV FRONT, BLACK, RIGHT HAND

SHIELD, CV FRONT, BLACK, RIGHT HAND

3 950 ₽
9

7512084 SCREW

SCREW

250 ₽
10

7512492 SCREW

SCREW

250 ₽
11

7552603 WASHER, SPRING LOCK

WASHER, SPRING LOCK

110 ₽
12

7555832 WASHER

WASHER

630 ₽
