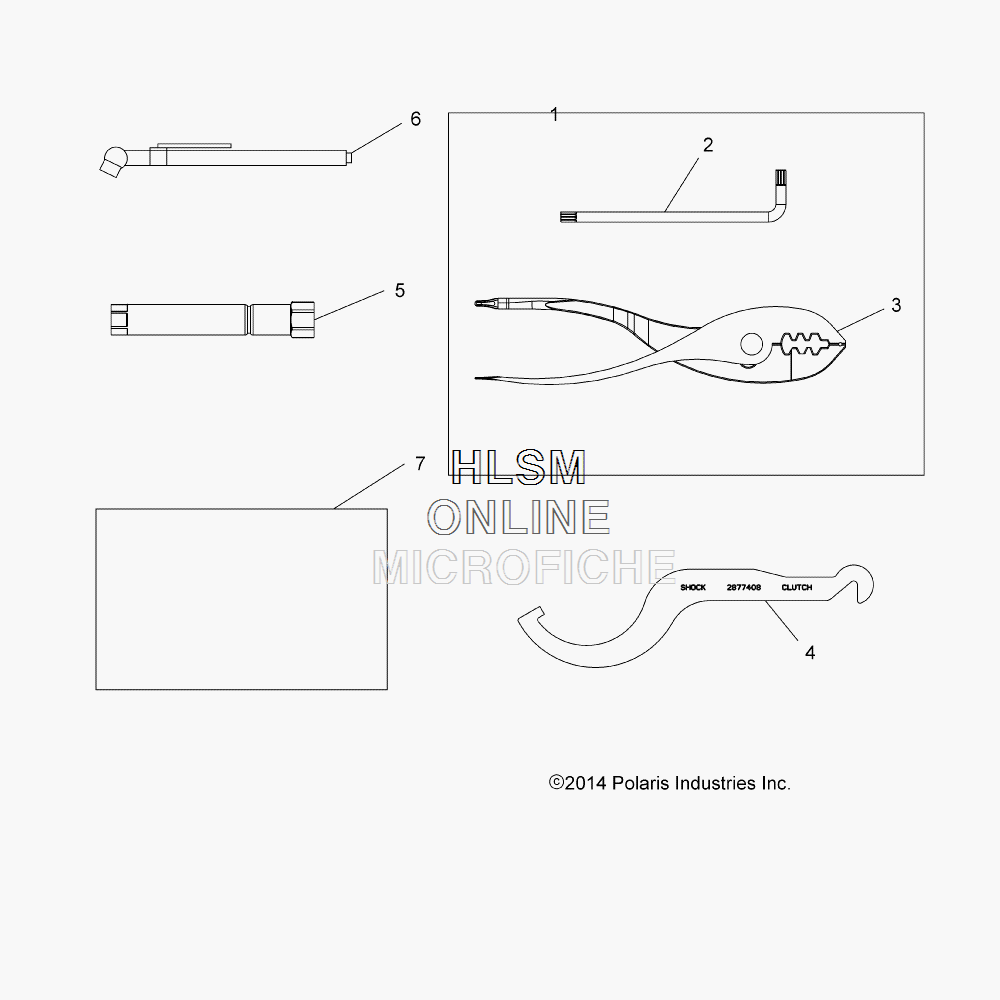

TOOL KIT [BUILT 11/1/14 AND AFTER] для Polaris SPORTSMAN TOURING 570 EPS (BRIGHT WHITE) [A15SDE57AJ] - 2015 года выпуска`
-
№АртикулНазвание
-
12877407 KIT, TOOL (INCL. 2,3)KIT, TOOL (INCL. 2,3)
-
22875341 WRENCH, TORX, T-25WRENCH, TORX, T-25
-
32876389 PLIERS, COMBO, #2 ASSEMBLYPLIERS, COMBO, #2 ASSEMBLY
-
42877408-329 WRENCH, SPAN/SPEADER, BLACKWRENCH, SPAN/SPEADER, BLACK
-
52877762 SOCKET, SPARK PLUG, 14/16MMSOCKET, SPARK PLUG, 14/16MM
-
62870725 GAUGE, TIRE PRESSUREGAUGE, TIRE PRESSURE
-
72682572 POUCH, TOOL KITPOUCH, TOOL KIT
