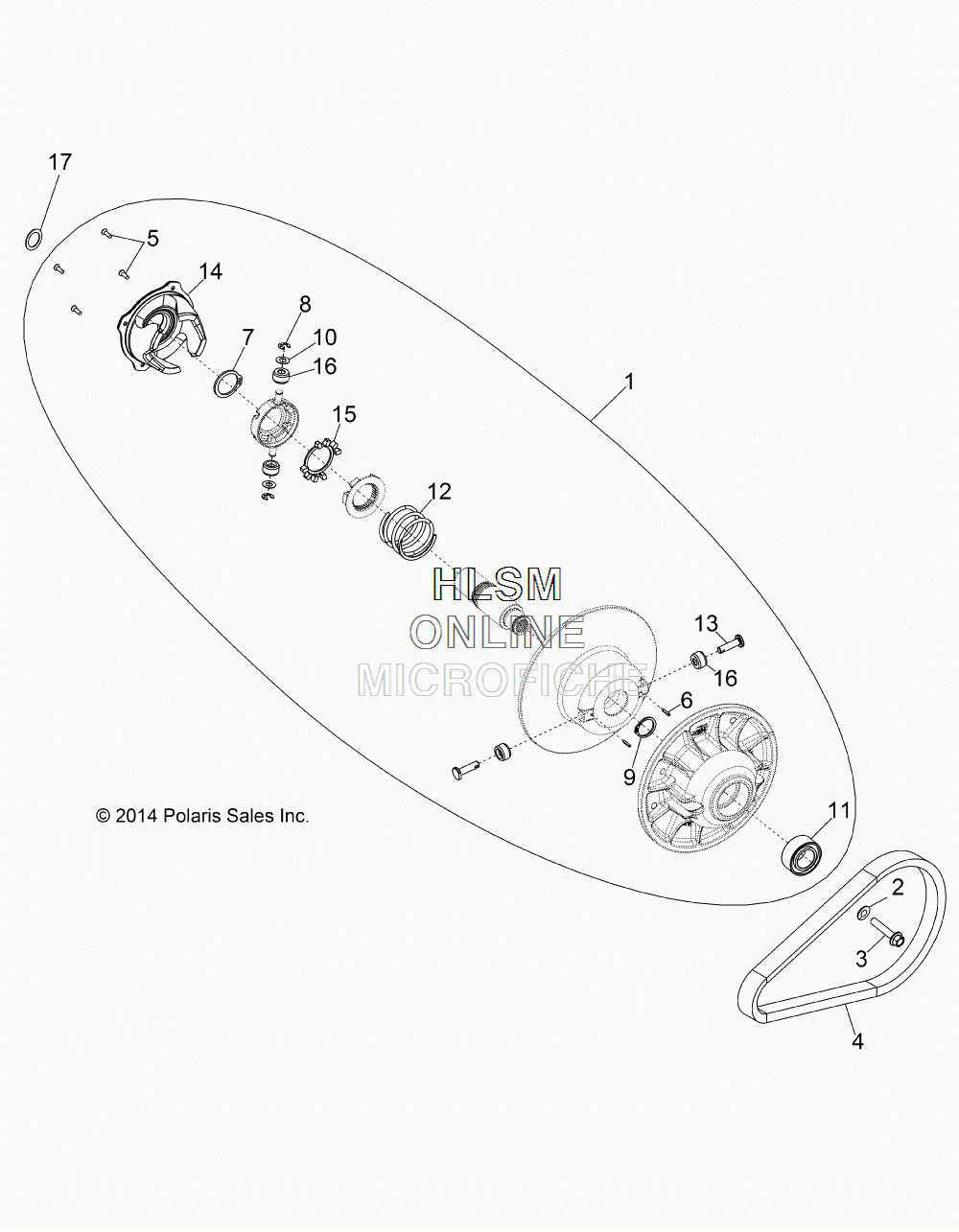

CLUTCH - SECONDARY (EBS) для Polaris SPORTSMAN ACE 570 VOODOO BLUE [A15DAA57AH] - 2015 года выпуска`
-
№АртикулНазвание
-
11323286 ASM., DRIVEN CLUTCH, EBS (INCL. 2,7-9)ASM., DRIVEN CLUTCH, EBS (INCL. 2,7-9)
-
27556490 WASHER, SPRINGWASHER, SPRING
-
37519210 SCREWSCREW
-
43211149 BELT, DRIVEBELT, DRIVE
-
53234754 SCREWSCREW
-
63234202 PIN, SPRING, SLOTTEDPIN, SPRING, SLOTTED
-
77710522 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
87710523 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
93234205 RING, RETAININGRING, RETAINING
-
107556226 WASHER, THRUSTWASHER, THRUST
-
113234203 BEARING, BALLBEARING, BALL
-
123234452 SPRING, COMPRESSIONSPRING, COMPRESSION
-
133234201 PIN, ROLLERPIN, ROLLER
-
143235545 CAM, EBS 58 STARTCAM, EBS 58 START
-
157710564 RETAINER, SPRING, INNERRETAINER, SPRING, INNER
-
165434534 ROLLER, CLUTCHROLLER, CLUTCH
-
177556745 WASHER, THRUSTWASHER, THRUST
