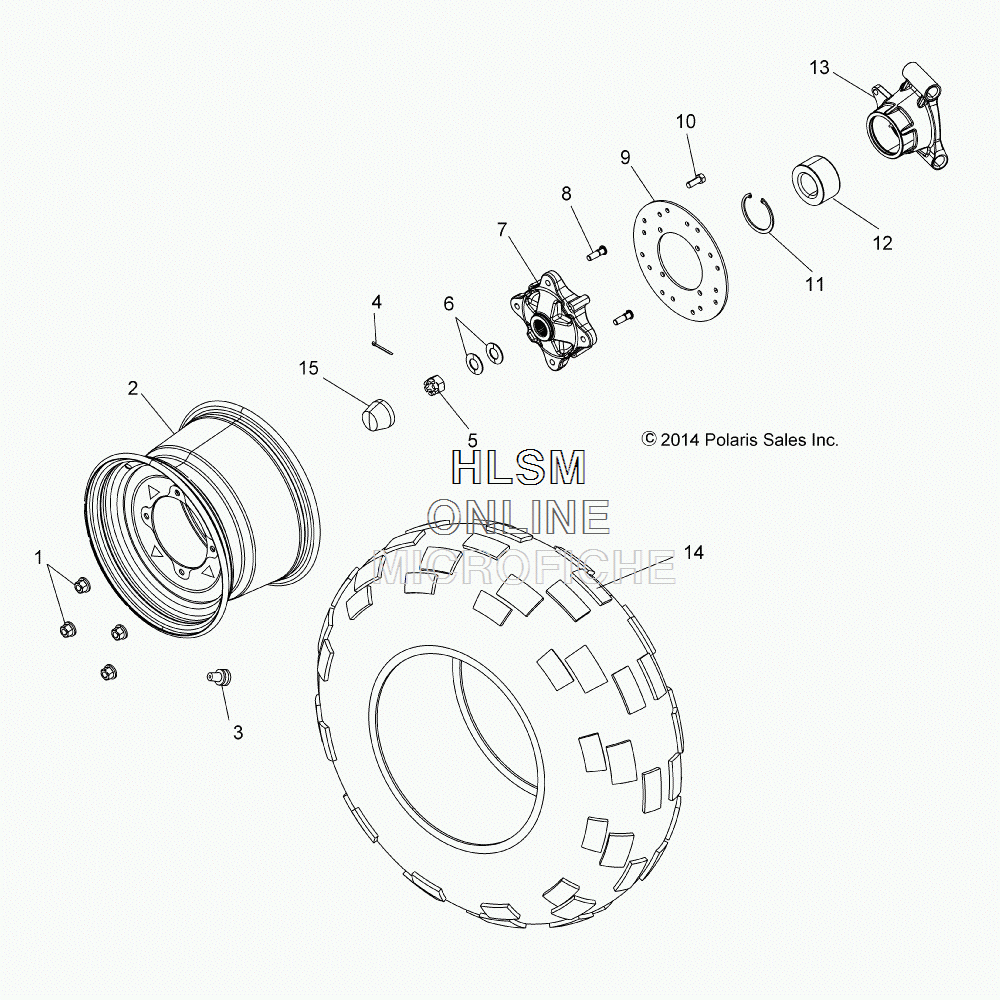

REAR WHEELS для Polaris SPORTSMAN ACE 570 VOODOO BLUE [A15DAA57AH] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    7547237 NUT, FLANGED
    NUT, FLANGED
  • 2
    1521917-067 RIM, REAR, BLACK
    RIM, REAR, BLACK
  • 3
    1525017 VALVE, RIM
    VALVE, RIM
  • 4
    7661404 PIN, COTTER
    PIN, COTTER
  • 5
    7547337 NUT, CASTLE
    NUT, CASTLE
  • 6
    7555796 WASHER, CONE
    WASHER, CONE
  • 7
    5135113 HUB, WHEEL, REAR
    HUB, WHEEL, REAR
  • 8
    7518378 STUD
    STUD
  • 9
    5248250 DISC, BRAKE, REAR
    DISC, BRAKE, REAR
  • 10
    7518903 BOLT
    BOLT
  • 11
    7710440 RING, RETAINING
    RING, RETAINING
  • 12
    3514635 BEARING, BALL
    BEARING, BALL
  • 13
    5138501 CARRIER, BEARING, LEFT HAND
    CARRIER, BEARING, LEFT HAND
  • 13
    5138502 CARRIER, BEARING, RIGHT HAND
    CARRIER, BEARING, RIGHT HAND
  • 14
    5413961 TIRE, 25X10-12
    TIRE, 25X10-12
  • 15
    5413427 HUB, DUST COVER
    HUB, DUST COVER
