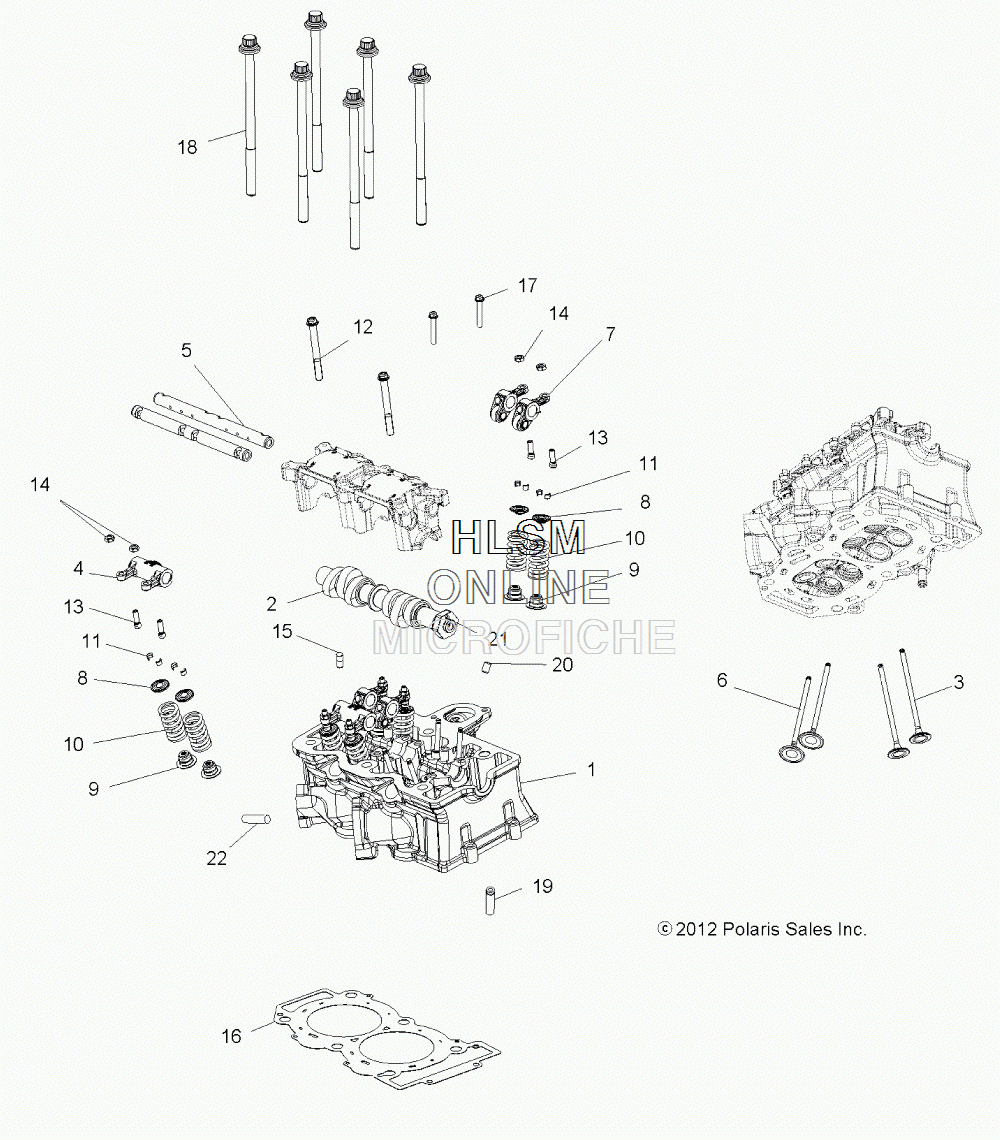

CYLINDER HEAD - CAM - VALVES для Polaris SCRAMBLER 850 MD [A15SVA85HD] - 2015 года выпуска
-
№АртикулНазвание
-
13022341 ASM., CYLINDER HEAD (INCL. CAMSHAFT CARRIER, PLUG)ASM., CYLINDER HEAD (INCL. CAMSHAFT CARRIER, PLUG)
-
17052532 PLUGPLUG
-
23022643 ASM., CAMSHAFT (INCL. 21)ASM., CAMSHAFT (INCL. 21)
-
33022272 VALVE, EXHAUSTVALVE, EXHAUST
-
41204589 ASM., ARM ROCKER, EXHAUST (INCL. ARM, SCREW, NUT)ASM., ARM ROCKER, EXHAUST (INCL. ARM, SCREW, NUT)
-
53022728 ASM., SHAFT, ROCKERASM., SHAFT, ROCKER
-
63022099 VALVE, INTAKEVALVE, INTAKE
-
71204588 ASM., ARM ROCKER, INTAKE (INCL. ARM, SCREW, NUT)ASM., ARM ROCKER, INTAKE (INCL. ARM, SCREW, NUT)
-
83021865 RETAINER, VALVERETAINER, VALVE
-
93610165 SEALSEAL
-
107043947 SPRING, VALVESPRING, VALVE
-
117081470 KEEPER, VALVEKEEPER, VALVE
-
127519293 SCREWSCREW
-
135136463 SCREW, LASH ADJUSTERSCREW, LASH ADJUSTER
-
147547335 NUT, LOCKNUT, LOCK
-
152540080 JET, OILJET, OIL
-
165813345 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
177518578 SCREWSCREW
-
187519219 BOLTBOLT
-
193022348 GUIDE, VALVEGUIDE, VALVE
-
225132040 STUD, EXHAUST MOUNTSTUD, EXHAUST MOUNT
