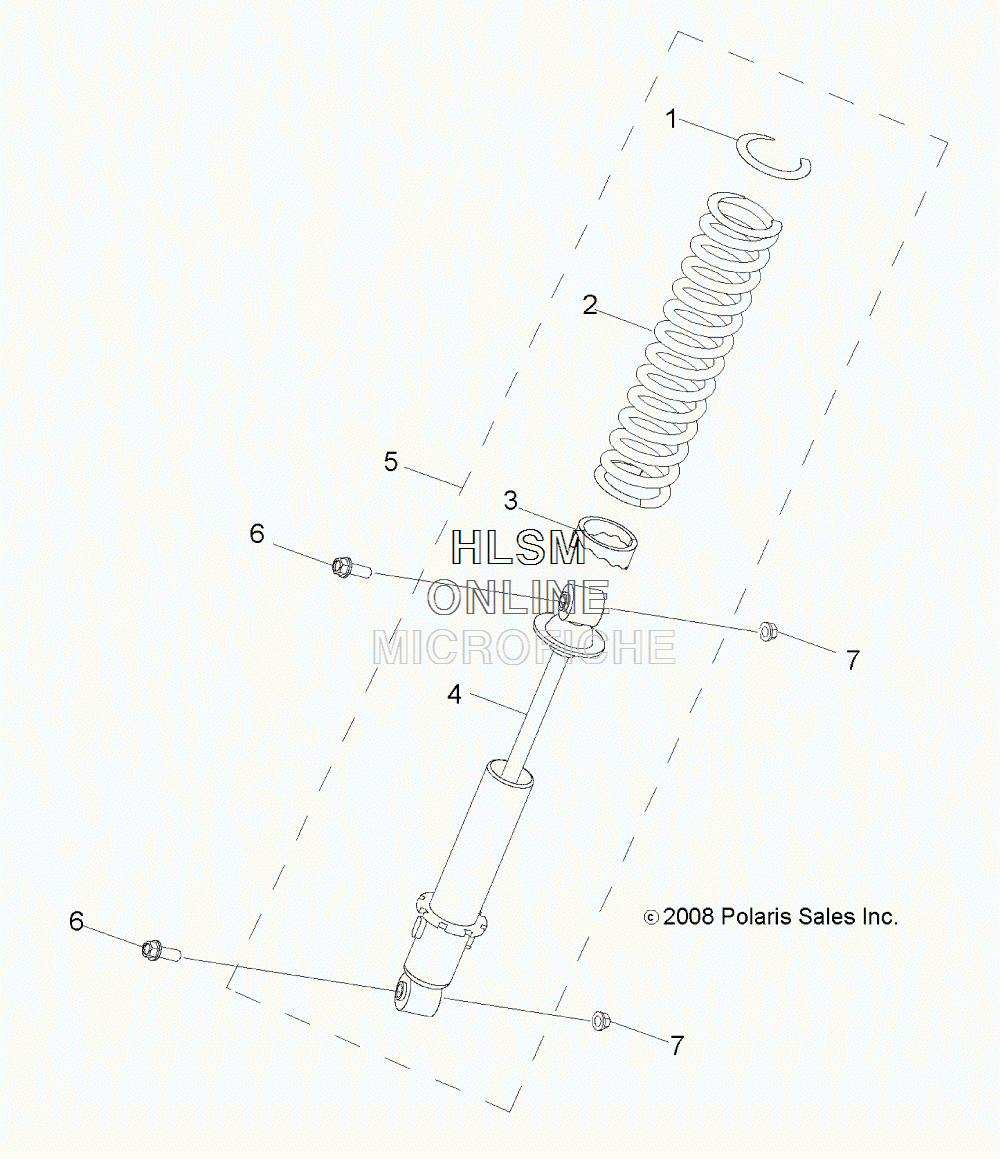

SUSPENSION - FRONT SHOCK для Polaris RZR 170 EFI VOODOO BLUE [R15YAV17AF] - 2015 года выпуска
-
№АртикулНазвание
-
10454403 RETAINER, SPRINGRETAINER, SPRING
-
20454404-067 SPRING, SUSPENSION, FRONT, BLACKSPRING, SUSPENSION, FRONT, BLACK
-
30454405 COLLAR, ADJUSTMENTCOLLAR, ADJUSTMENT
-
40454406 SHOCK, FRONTSHOCK, FRONT
-
50454344-067 ASM., SHOCK, FRONT, BLACKASM., SHOCK, FRONT, BLACK
-
60452649 BOLTBOLT
-
70450249 NUTNUT
