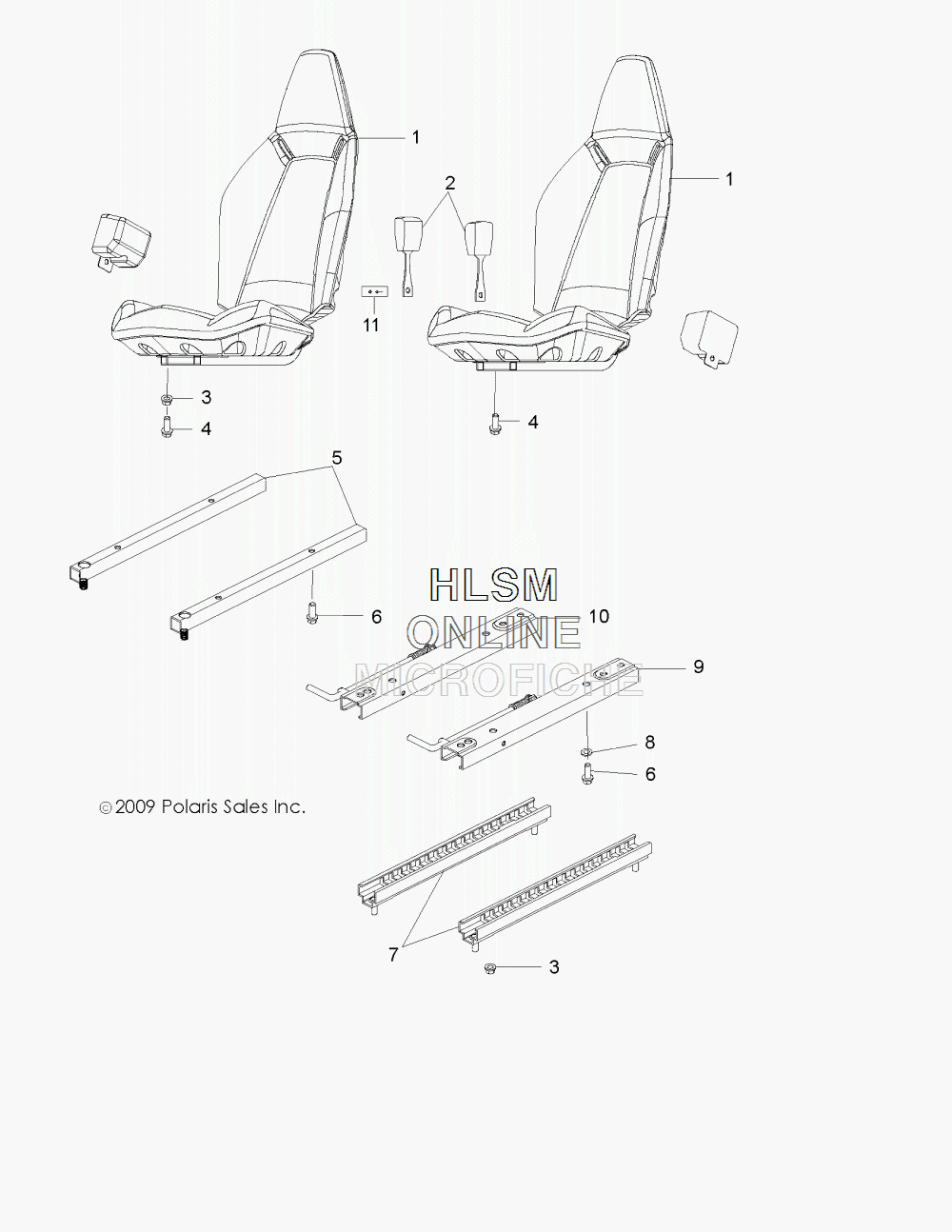

SEATS W/ SEAT BELTS для Polaris RZR 170 EFI VOODOO BLUE [R15YAV17AF] - 2015 года выпуска
-
№АртикулНазвание
-
10454289-070 ASM., SEAT, BLACK (INCL. 11)ASM., SEAT, BLACK (INCL. 11)
-
20454659 ASM., SEAT BELTASM., SEAT BELT
-
30450268 NUT, FLANGENUT, FLANGE
-
40452031 BOLTBOLT
-
50454390 MOUNT, SEATMOUNT, SEAT
-
60450805 BOLTBOLT
-
70454389 GUIDE, SEAT, LOWERGUIDE, SEAT, LOWER
-
80452201 WASHER, FLATWASHER, FLAT
-
90454387 GUIDE, SEAT, UPPER, LEFT HANDGUIDE, SEAT, UPPER, LEFT HAND
-
100454388 GUIDE, SEAT, UPPER, RIGHT HANDGUIDE, SEAT, UPPER, RIGHT HAND
-
110454831 BOLT SET, SEATBELTBOLT SET, SEATBELT
