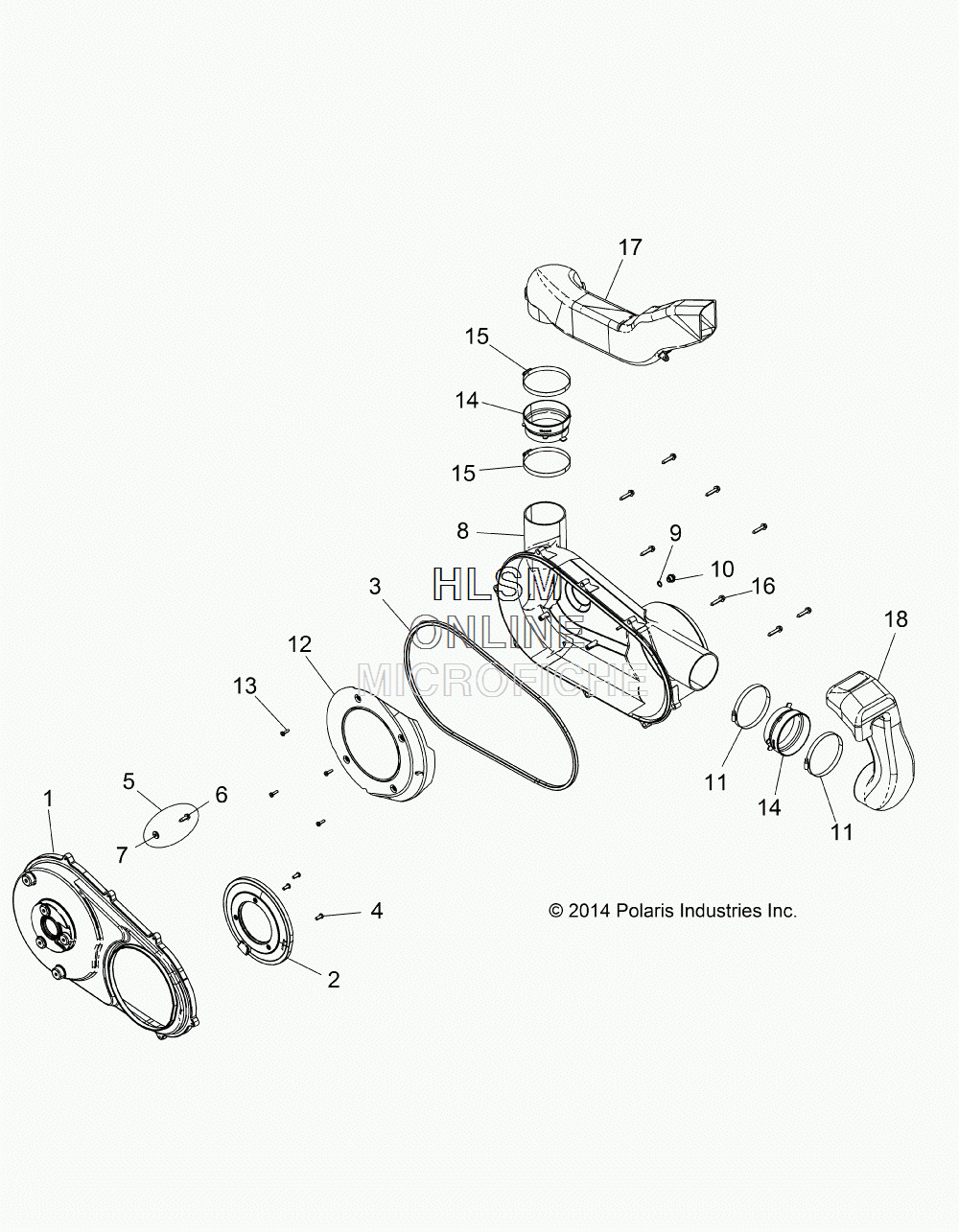

CLUTCH COVER для Polaris HAWKEYE 325 2X4 (BLUE FIRE) [A15SAA32EH] - 2015 года выпуска`
-
№АртикулНазвание
-
12635303 ASM., CLUTCH COVER, INNER (INCL. COVER,2,3)ASM., CLUTCH COVER, INNER (INCL. COVER,2,3)
-
25415041 SEAL, CLUTCH COVER, INNERSEAL, CLUTCH COVER, INNER
-
35521738 SEAL, CLUTCH COVER, OUTERSEAL, CLUTCH COVER, OUTER
-
47518656 BOLTBOLT
-
57517599 ASM., BOLT/WASHERASM., BOLT/WASHER
-
67517312 SCREWSCREW
-
77555748 WASHERWASHER
-
82634897 ASM., CLUTCH COVER, OUTER (INCL. COVER,PLUG,O-RING,12,13)ASM., CLUTCH COVER, OUTER (INCL. COVER,PLUG,O-RING,12,13)
-
95410542 O-RINGO-RING
-
105434264 PLUG, DRAIN, CLUTCH COVERPLUG, DRAIN, CLUTCH COVER
-
117081626 CLAMP, WORM DRIVECLAMP, WORM DRIVE
-
125450420 COVER, CLUTCH, INTAKE, BAFFLECOVER, CLUTCH, INTAKE, BAFFLE
-
137512026 SCREWSCREW
-
145414768 BOOT, DUCT, CLUTCHBOOT, DUCT, CLUTCH
-
157081626 CLAMP, WORM DRIVECLAMP, WORM DRIVE
-
167519849 SCREWSCREW
-
175451155 DUCT, CLUTCH AIR INLETDUCT, CLUTCH AIR INLET
-
185450546 DUCT, CLUTCH OUTLETDUCT, CLUTCH OUTLET
