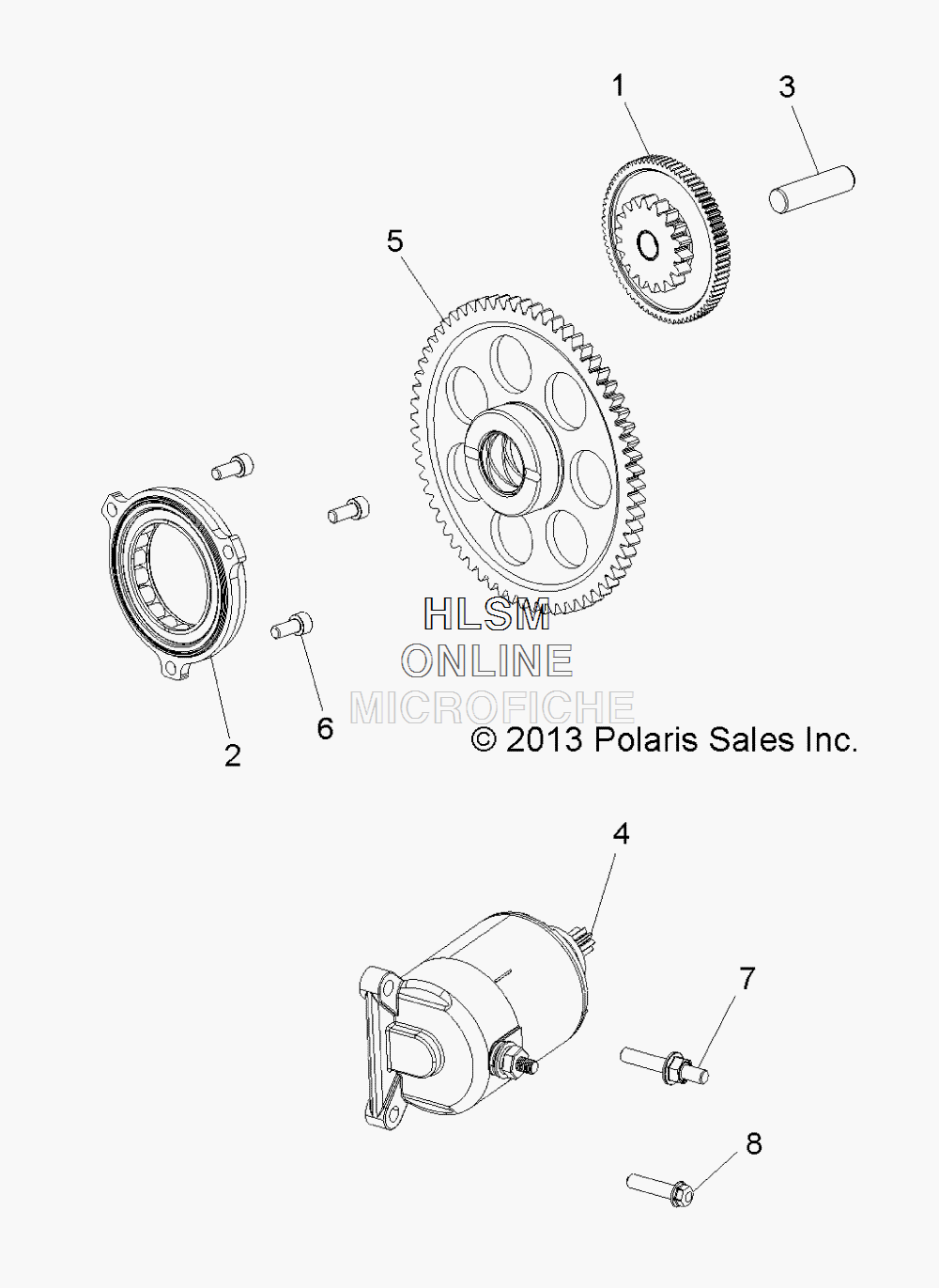

STARTING MOTOR для Polaris HAWKEYE 325 2X4 (BLUE FIRE) [A15SAA32EH] - 2015 года выпуска
-
№АртикулНазвание
-
11204683 ASM., GEARASM., GEAR
-
21204884 ASM., SPRAG CLUTCH, HUBASM., SPRAG CLUTCH, HUB
-
33022500 PIN, SOLIDPIN, SOLID
-
44015223 STARTER, 1 CYLINDERSTARTER, 1 CYLINDER
-
56230561 GEAR, FREEWHEEL, 1 WAY CLUTCHGEAR, FREEWHEEL, 1 WAY CLUTCH
-
67517431 SCREWSCREW
-
77519237 STUD, DOUBLE, ENDSTUD, DOUBLE, END
-
87519754 SCREWSCREW
Все узлы модели:
- AIR INTAKE SYSTEM
- BATTERY
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - PEDAL W/MASTER CYLINDER
- BRAKE - REAR CALIPER
- BRAKE LINES
- BREATHER PIPE
- BUMPER - FRONT
- CAB - FRONT W/ SIDE PANELS
- CAB - FRONT W/ STORAGE
- CAB - REAR - SEAT W/FOOTWELLS
- CAM CHAIN W/ SPROCKET
- CAMS AND BEARING HOUSING
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH COVER
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON AND BALANCE SHAFT
- CYLINDER
- CYLINDER HEAD
- DECALS
- DRIVESHAFT - REAR
- ELECTRICAL - BULBS
- ELECTRICAL - WIRING HARNESS- MAIN
- ELECTRICAL COMPONENTS
- ENGINE - LONG BLOCK
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FRAME
- FUEL TANK
- GAUGES AND INDICATORS
- GEAR SELECTOR
- GEARCASE
- GEARCASE - MAIN - MOUNTING
- HANDLEBAR - CONTROL ASSY.
- HEADLIGHT
- HEADLIGHT POD
- IGNITION COIL W/ WIRE AND SPARK PLUG
- MANUAL - OWNERS
- OIL FILTER AND DIPSTICK
- OIL PUMP
- RACK - REAR
- • STARTING MOTOR
- STATOR COVER AND FLYWHEEL
- STEERING POST
- STORAGE BOX - REAR
- SUSPENSION - A-ARM/STRUT - MOUNTING
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR
- SUSPENSION - TORSION BAR
- TAIL LIGHT
- THERMOSTAT W/ COVER
- THROTTLE ASSEMBLY
- THROTTLE BODY W/ FUEL RAIL
- TOOL KIT
- VALVE COVER
- WATER PUMP IMPELLER W/ COVER
- WHEEL - FRONT W/BRAKE DISK
- WHEEL - REAR W/BRAKE DISK
