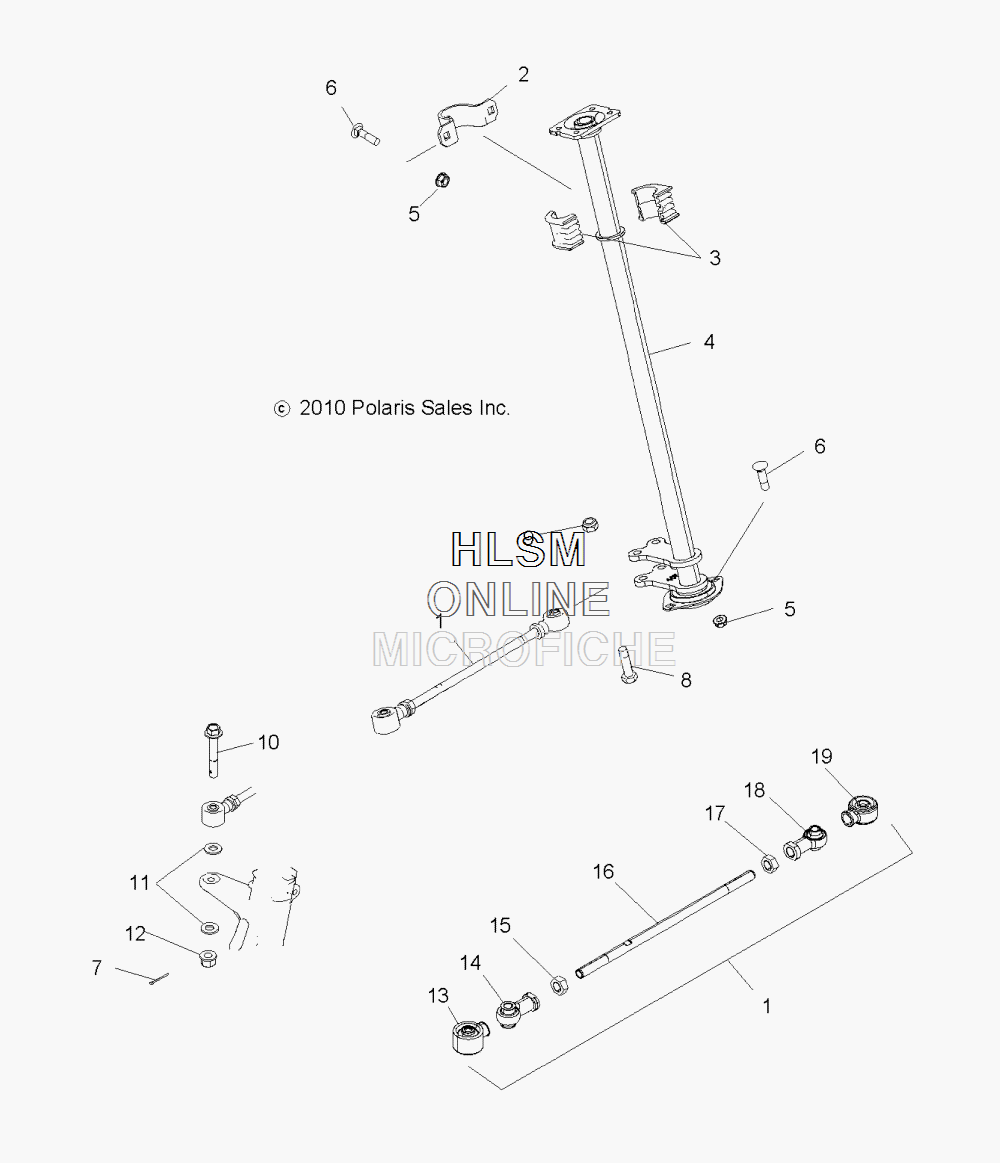

STEERING POST для Polaris SPORTSMAN 570 EFI HD - (INDY RED) [A14MH57TD] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    1822851 ASM., TIE ROD (INCL. 13-19)
    ASM., TIE ROD (INCL. 13-19)
  • 2
    5257028 BRACKET, UPPER, BUSHING
    BRACKET, UPPER, BUSHING
  • 3
    5438903 BUSHING, UPPER
    BUSHING, UPPER
  • 4
    1823278 POST, STEERING
    POST, STEERING
  • 5
    7542343 NUT, FLANGE
    NUT, FLANGE
  • 6
    7517428 BOLT
    BOLT
  • 7
    7661203 PIN, COTTER
    PIN, COTTER
  • 8
    7515415 SCREW
    SCREW
  • 9
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 10
    7517909 BOLT
    BOLT
  • 11
    7556099 WASHER
    WASHER
  • 12
    7547333 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 13
    5412929 BOOT, SEAL
    BOOT, SEAL
  • 14
    7061138 ROD END, LEFT HAND
    ROD END, LEFT HAND
  • 15
    7547028 NUT, JAM, LEFT HAND
    NUT, JAM, LEFT HAND
  • 16
    5134242 TIE ROD
    TIE ROD
  • 17
    7542711 NUT, JAM, RIGHT HAND
    NUT, JAM, RIGHT HAND
  • 18
    7061139 ROD END, RIGHT HAND
    ROD END, RIGHT HAND
  • 19
    5412928 BOOT, SEAL
    BOOT, SEAL
