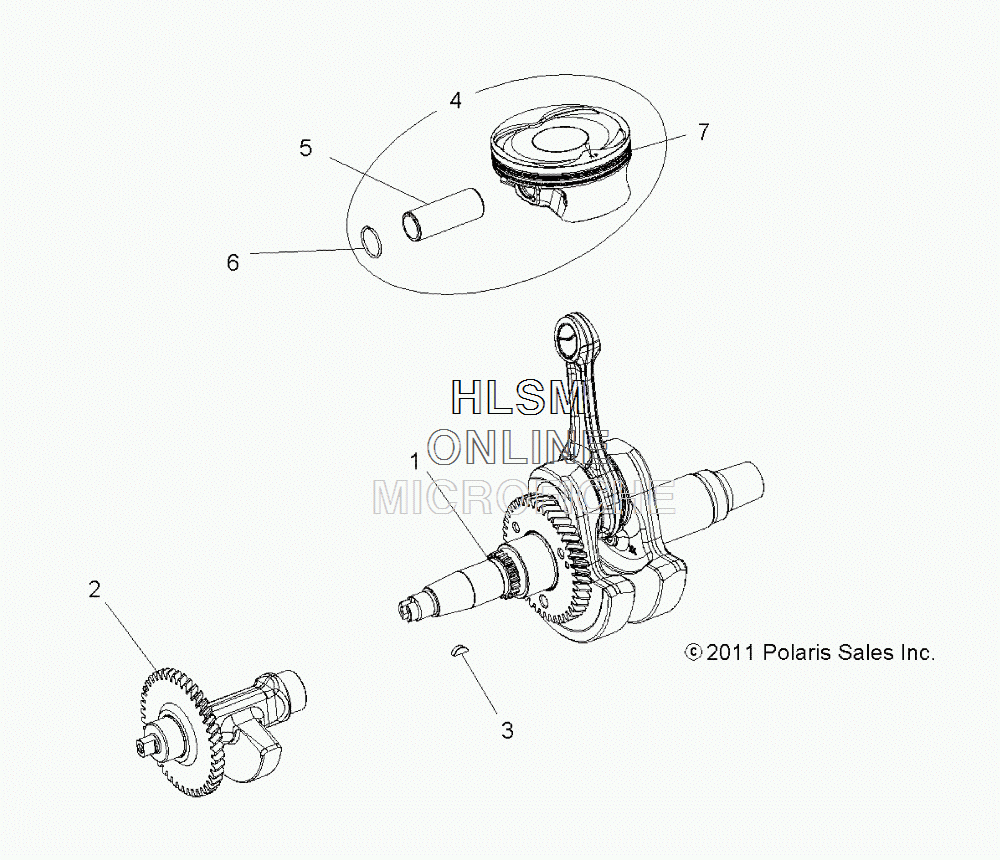

CRANKSHAFT W/ PISTON AND BALANCE SHAFT для Polaris SPORTSMAN 570 EFI HD - (INDY RED) [A14MH57TD] - 2014 года выпуска
-
№АртикулНазвание
-
12204729 ASM., CRANKSHAFT (INCL. CRANKSHAFT, JET, OIL PUMP)ASM., CRANKSHAFT (INCL. CRANKSHAFT, JET, OIL PUMP)
-
21204515 ASM., BALANCE SHAFTASM., BALANCE SHAFT
-
37721122 KEY, WOODRUFFKEY, WOODRUFF
-
42204732 KIT, ASM., PISTON, 99MM, STANDARD (INCL. STANDARD SIZE PISTON, PIN, CLIPS, RING SET)KIT, ASM., PISTON, 99MM, STANDARD (INCL. STANDARD SIZE PISTON, PIN, CLIPS, RING SET)
-
53022291 PIN, PISTONPIN, PISTON
-
67710479 RING, RETAININGRING, RETAINING
-
72204733 KIT, RING, STANDARD (SEE NOTE)KIT, RING, STANDARD (SEE NOTE)
