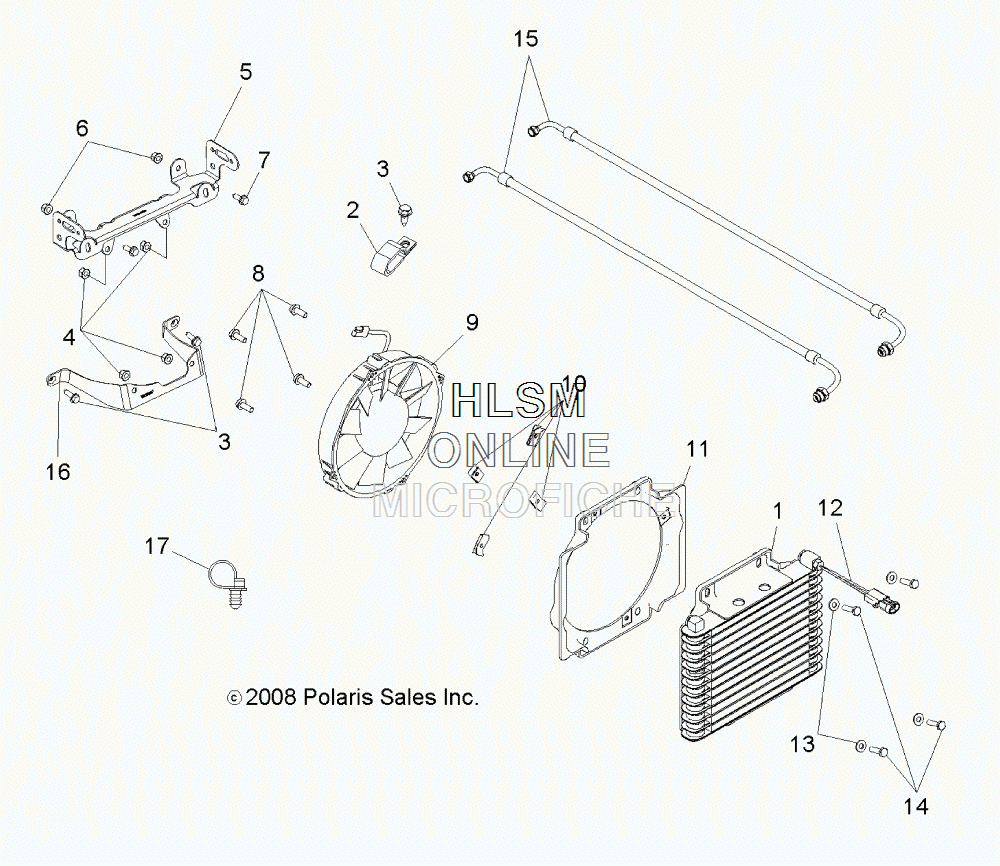

COOLING SYSTEM для Polaris TRAIL BLAZER 330 - BOARDWALK BLUE [A13NA32AA] - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    1240524 COOLER, OIL
    COOLER, OIL
  • 2
    7081364 CLAMP, DOUBLE TUBE
    CLAMP, DOUBLE TUBE
  • 3
    7517386 SCREW
    SCREW
  • 4
    7542122 NUT, NYLOK
    NUT, NYLOK
  • 5
    5253329 BRACKET, RADIATOR, UPPER
    BRACKET, RADIATOR, UPPER
  • 6
    7542153 NUT, FLANGED
    NUT, FLANGED
  • 7
    7512232 BOLT
    BOLT
  • 8
    7517659 SCREW
    SCREW
  • 9
    2410534 ASM., MOTOR, FAN
    ASM., MOTOR, FAN
  • 10
    7670111 U-CLIP
    U-CLIP
  • 11
    5438242 SHROUD, FAN
    SHROUD, FAN
  • 12
    4012510 SWITCH, FAN ON, HOT LIGHT
    SWITCH, FAN ON, HOT LIGHT
  • 13
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 14
    7512247 BOLT
    BOLT
  • 15
    5413650 HOSE, COOLER, THREADED
    HOSE, COOLER, THREADED
  • 16
    5253367-067 BRACKET, OIL COOLER, LOWER (BLACK)
    BRACKET, OIL COOLER, LOWER (BLACK)
  • 17
    7081334 STRAP, TREE MOUNT CABLE TIE
    STRAP, TREE MOUNT CABLE TIE
