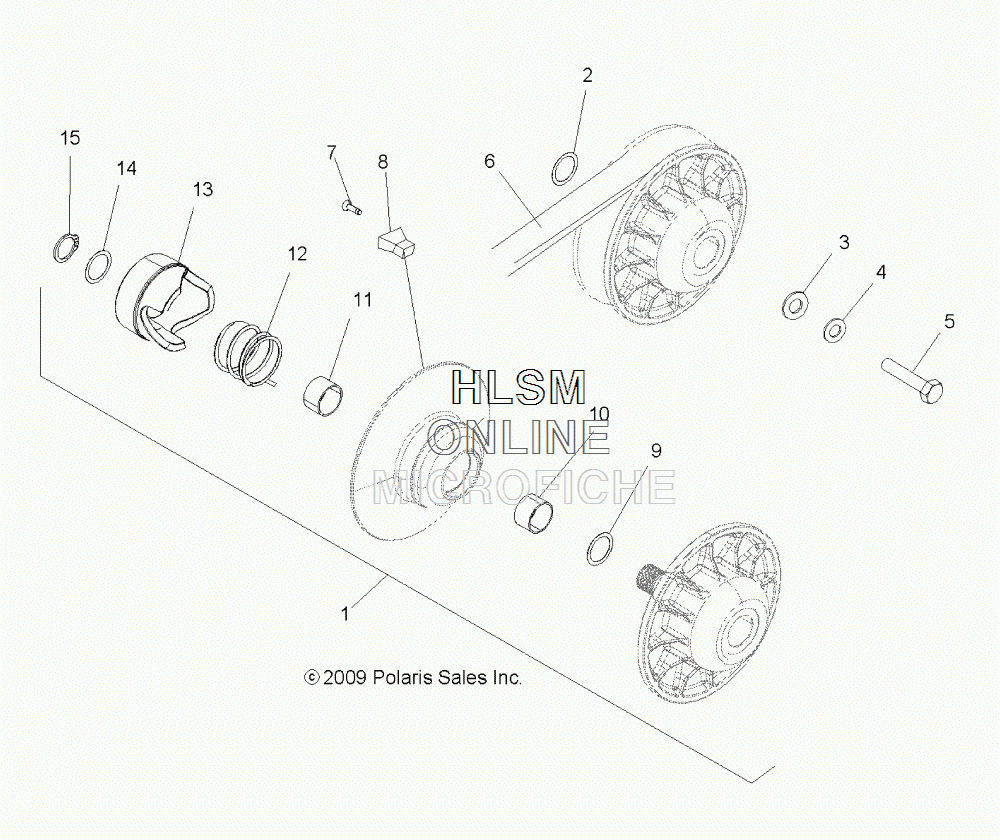

CLUTCH - SECONDARY для Polaris TRAIL BLAZER 330 - BOARDWALK BLUE [A13NA32AA] - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    1322845 ASM., DRIVEN CLUTCH (BLACK) (INCL. 7-15)
    ASM., DRIVEN CLUTCH (BLACK) (INCL. 7-15)
  • 2
    7556120 BUSHING
    BUSHING
  • 3
    5250562 WASHER, DOMED
    WASHER, DOMED
  • 4
    7552901 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 5
    7515382 BOLT
    BOLT
  • 6
    3211077 BELT, DRIVE
    BELT, DRIVE
  • 7
    7511854 BOLT
    BOLT
  • 8
    5438123 BUTTON
    BUTTON
  • 9
    7556804 WASHER, .030
    WASHER, .030
  • 10
    3576504 BEARING, MOVEABLE, 1/2 INCH
    BEARING, MOVEABLE, 1/2 INCH
  • 11
    3576511 BEARING, MOVEABLE, 1 INCH
    BEARING, MOVEABLE, 1 INCH
  • 12
    7041782 SPRING, CLUTCH
    SPRING, CLUTCH
  • 13
    5131446 RAMP, STATIONARY
    RAMP, STATIONARY
  • 14
    5244116 SPACER, .020
    SPACER, .020
  • 15
    7710448 RING, RETAINING
    RING, RETAINING
