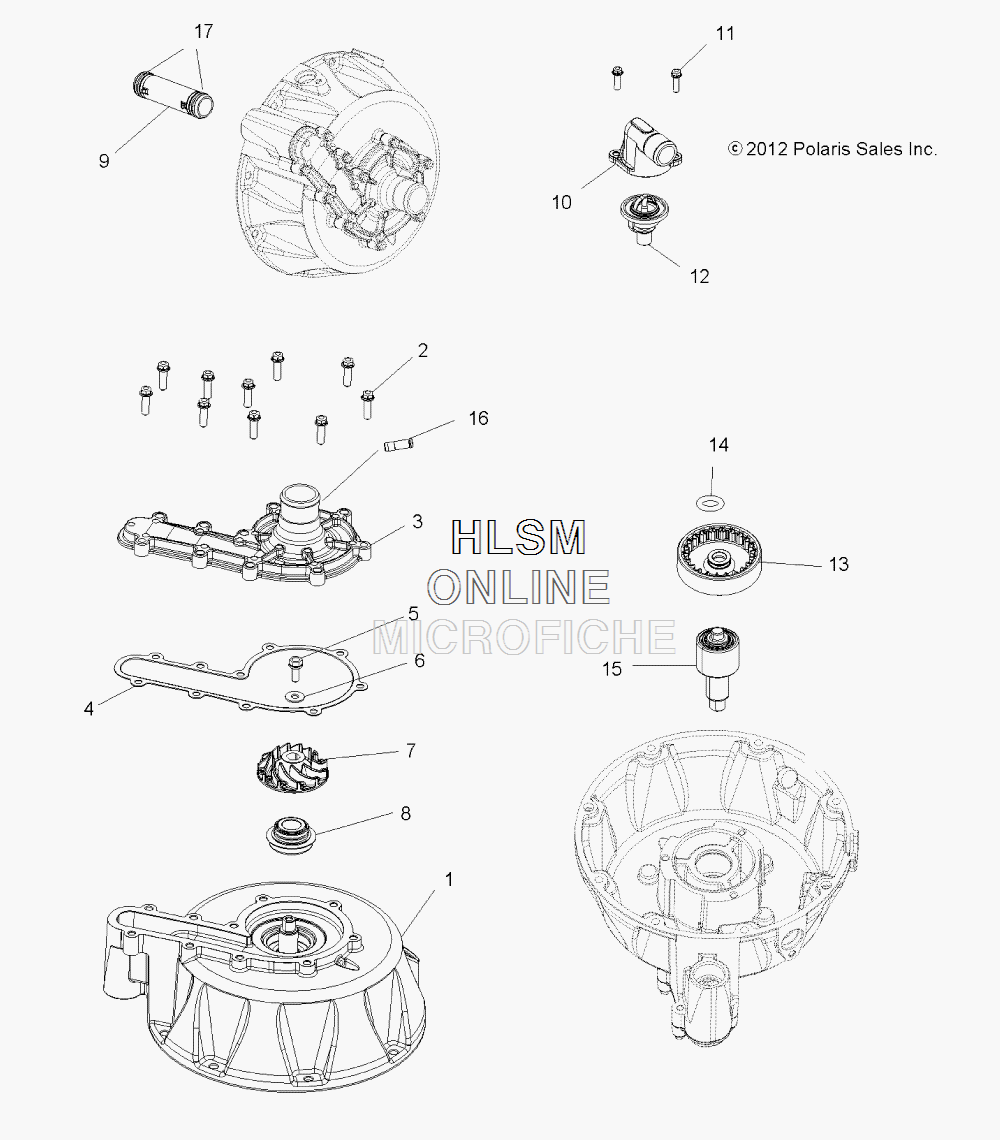

COOLING SYSTEM - WATER PUMP для Polaris SPORTSMAN XP 850 HO EPS - POLARIS PURSUIT CAMO [A13ZN8EAT] - 2013 года выпуска
-
№АртикулНазвание
-
12204781 KIT, STATOR COVER W/WATERPUMPKIT, STATOR COVER W/WATERPUMP
-
27518855 SCREWSCREW
-
32204955 COVER, WATER PUMP (INCL. COVER, FITTING, GASKET)COVER, WATER PUMP (INCL. COVER, FITTING, GASKET)
-
45412954 GASKET, COVERGASKET, COVER
-
57518854 BOLTBOLT
-
67556451 WASHER, FLATWASHER, FLAT
-
75632427 IMPELLER, WATER PUMP, CASTIMPELLER, WATER PUMP, CAST
-
83610136 SEALSEAL
-
95334925 TUBE, WATER TRANSFER (INCL. O-RINGS)TUBE, WATER TRANSFER (INCL. O-RINGS)
-
105632606 COVER, THERMOSTATCOVER, THERMOSTAT
-
117518576 SCREWSCREW
-
127052445 THERMOSTAT (INCL. SEAL WHICH IS NOT AVAILABLE SEPARATELY) (BUILT 8/06/12 AND BEFORE)THERMOSTAT (INCL. SEAL WHICH IS NOT AVAILABLE SEPARATELY) (BUILT 8/06/12 AND BEFORE)
-
127052561 THERMOSTAT (BUILT 8/07/12 AND AFTER)THERMOSTAT (BUILT 8/07/12 AND AFTER)
-
125413948 SEAL, THERMOSTAT (BUILT 8/07/12 AND AFTER) (FOR USE ONLY WITH THERMOSTAT (BUILT 8/07/12 AND AFTER))SEAL, THERMOSTAT (BUILT 8/07/12 AND AFTER) (FOR USE ONLY WITH THERMOSTAT (BUILT 8/07/12 AND AFTER))
-
135137242 COUPLER, SPLINE INT, WP BEARINGCOUPLER, SPLINE INT, WP BEARING
-
145414286 O-RINGO-RING
-
153514633 BEARING W/SHAFTBEARING W/SHAFT
-
175412955 O-RINGO-RING
