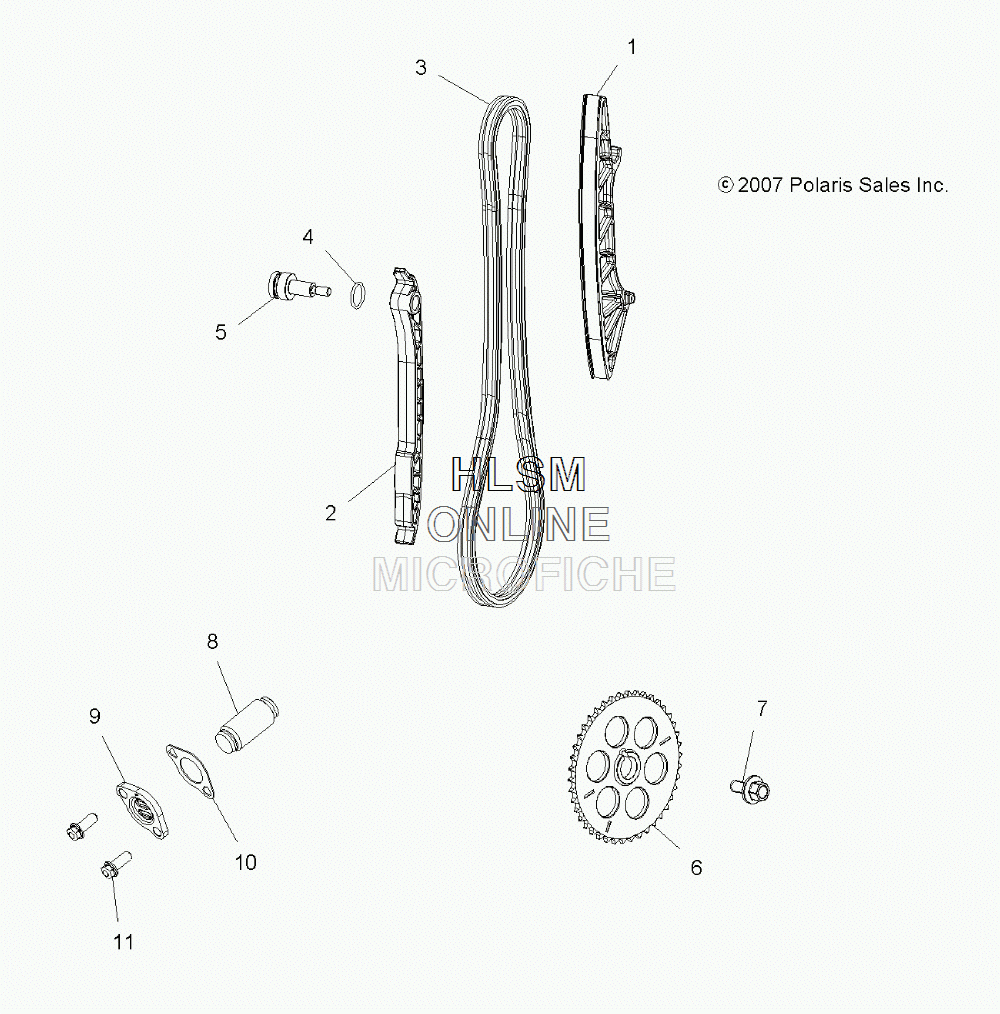

CAMSHAFT W/ CHAIN для Polaris SPORTSMAN XP 850 HO EPS - POLARIS PURSUIT CAMO [A13ZN8EAT] - 2013 года выпуска
-
№АртикулНазвание
-
13021704 GUIDE, FIXEDGUIDE, FIXED
-
23021705 ASM., BLADE CAM DRIVEASM., BLADE CAM DRIVE
-
33222154 CHAIN, CAMSHAFT ROLLERCHAIN, CAMSHAFT ROLLER
-
45412002 O-RINGO-RING
-
55136831 BOLT, SHOULDER (FOR IRON LINED ENGINE)BOLT, SHOULDER (FOR IRON LINED ENGINE)
-
63222156 SPROCKET, 42TSPROCKET, 42T
-
77518574 SCREWSCREW
-
83021919 TENSIONER, HYDRAULICTENSIONER, HYDRAULIC
-
95135284 COVER, HYDRAULIC TENSIONERCOVER, HYDRAULIC TENSIONER
-
105813135 GASKET, TENSIONER COVERGASKET, TENSIONER COVER
-
117519224 SCREWSCREW
