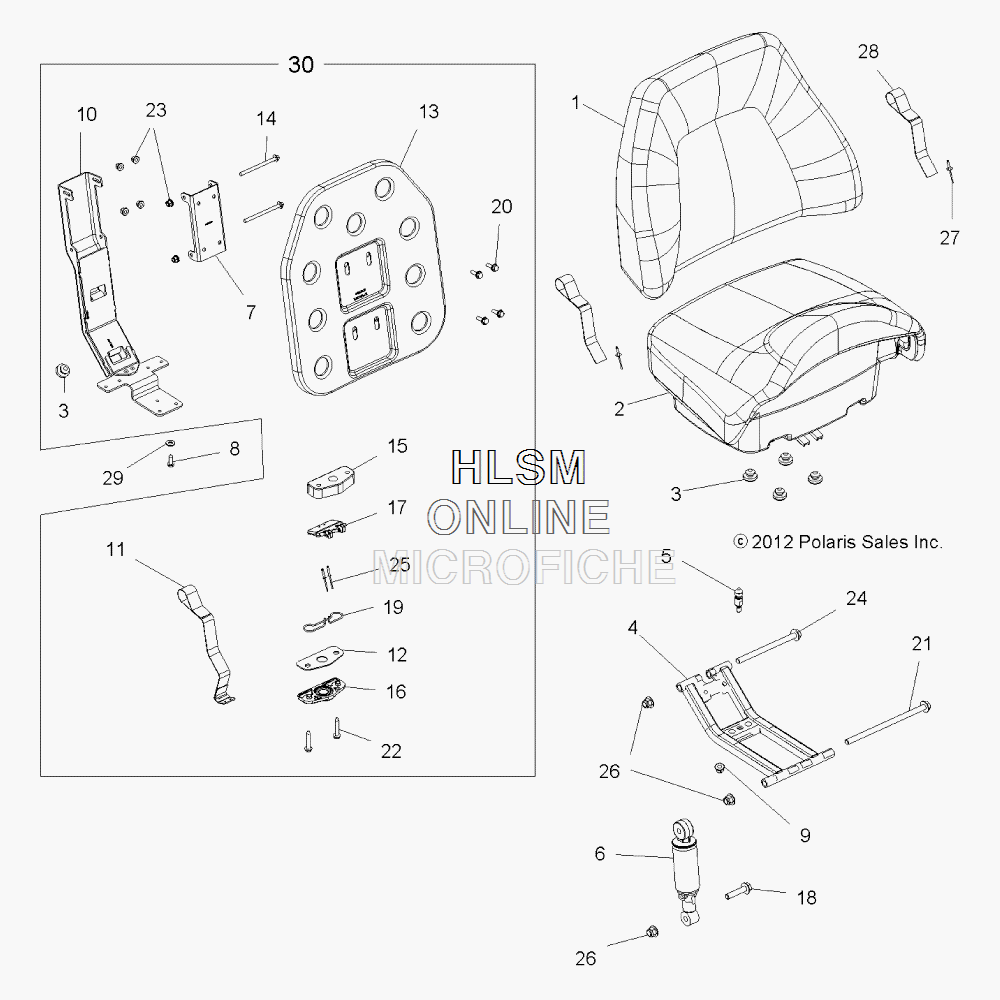

SEAT - PASSENGER - BOTTOM AND BACK для Polaris SPORTSMAN TOURING 550 EPS - SOLAR RED [A13DN5EAR] - 2013 года выпуска`
-
№АртикулНазвание
-
12684898 ASM., SEAT, PASSENGER, BACK (INCL. COVER, FOIL)ASM., SEAT, PASSENGER, BACK (INCL. COVER, FOIL)
-
12684113 ASM., COVER, SEAT, PASSENGER, BACKASM., COVER, SEAT, PASSENGER, BACK
-
22684991-070 ASM., SEAT, PASSENGER, BOTTOM (BLACK) (INCL. COVER, 3,27,28)ASM., SEAT, PASSENGER, BOTTOM (BLACK) (INCL. COVER, 3,27,28)
-
22684331-070 COVERING, SEAT (BLACK)COVERING, SEAT (BLACK)
-
35412067 BUMPER, RUBBERBUMPER, RUBBER
-
41016837-329 PIVOT, SEAT FRAME (BLACK)PIVOT, SEAT FRAME (BLACK)
-
57519251 PLUNGER, LATCHPLUNGER, LATCH
-
61542870 ASM., SHOCK SEATASM., SHOCK SEAT
-
75253184-329 BRACKET, SEAT BACK, PIVOT (BLACK)BRACKET, SEAT BACK, PIVOT (BLACK)
-
87512232 BOLTBOLT
-
97542343 NUT, FLANGENUT, FLANGE
-
101017011-067 SUPPORT, SEAT BACK (BLACK)SUPPORT, SEAT BACK (BLACK)
-
112684439 ASM., STRAP, SEAT LATCHASM., STRAP, SEAT LATCH
-
125251162 PLATE, SEAT LATCHPLATE, SEAT LATCH
-
135251351-329 PLATE, SEAT BACK, SUPPORTPLATE, SEAT BACK, SUPPORT
-
147518407 SCREWSCREW
-
155437119 BODY, SEAT LATCHBODY, SEAT LATCH
-
165437120 CAP, SEAT LATCHCAP, SEAT LATCH
-
175437121 LEVER, SEAT LATCHLEVER, SEAT LATCH
-
187518531 BOLTBOLT
-
197081466 SPRING, SEAT LATCHSPRING, SEAT LATCH
-
207516822 SCREWSCREW
-
217519040 SCREWSCREW
-
227518418 SCREWSCREW
-
237547274 NUT, FLANGENUT, FLANGE
-
247519041 SCREWSCREW
-
257621224 RIVETRIVET
-
267547313 NUT, FLANGENUT, FLANGE
-
277621479 RIVETRIVET
-
282684650 STRAP, PASSENGERSTRAP, PASSENGER
-
297558301 WASHER, FLATWASHER, FLAT
-
302684323 ASM., SEAT, PASSENGER, SUPPORT (INCL. 3,7,8,10-17,19,20,22,23,25)ASM., SEAT, PASSENGER, SUPPORT (INCL. 3,7,8,10-17,19,20,22,23,25)
