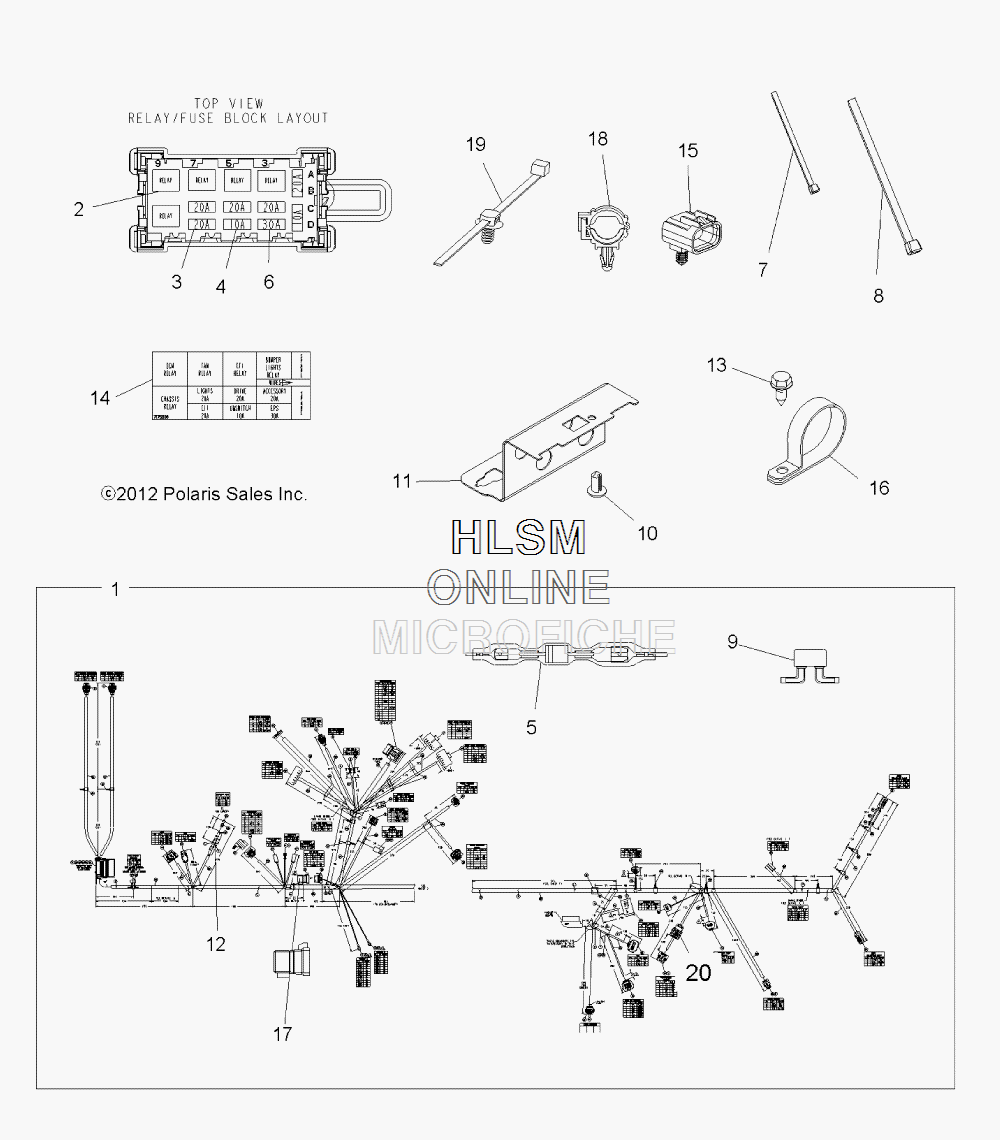

WIRE HARNESS для Polaris SPORTSMAN TOURING 550 EPS - SOLAR RED [A13DN5EAR] - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    2412428 HARNESS, MAIN (INCL. 1-6,9,12,14,15,17, ALL KITS)
    HARNESS, MAIN (INCL. 1-6,9,12,14,15,17, ALL KITS)
  • 1
    2878498 KIT, HARNESS, TPS
    KIT, HARNESS, TPS
  • 1
    5438758 COVER, FUSE/RELAY CENTER
    COVER, FUSE/RELAY CENTER
  • 2
    4011283 RELAY
    RELAY
  • 3
    2434017 FUSE, 20AMP
    FUSE, 20AMP
  • 4
    2434016 FUSE, 10AMP
    FUSE, 10AMP
  • 5
    2411035 DIODE, 6AMP
    DIODE, 6AMP
  • 6
    2434015 FUSE, MAIN, 30 AMP.
    FUSE, MAIN, 30 AMP.
  • 7
    7080138 CABLE TIE
    CABLE TIE
  • 8
    7080492 CABLE TIE
    CABLE TIE
  • 9
    2410692 BREAKER, CIRCUIT, 10 AMP, SEALED
    BREAKER, CIRCUIT, 10 AMP, SEALED
  • 10
    7670125 CLIP, PUSH ON
    CLIP, PUSH ON
  • 11
    5253502 BRACKET, FUSE BLOCK
    BRACKET, FUSE BLOCK
  • 12
    2202607 KIT, FUSIBLE LINK, .8 MM
    KIT, FUSIBLE LINK, .8 MM
  • 12
    2202670 KIT, FUSIBLE LINK, 1.0 MM
    KIT, FUSIBLE LINK, 1.0 MM
  • 13
    7512095 SCREW
    SCREW
  • 14
    7175808 LABEL, FUSE BOX
    LABEL, FUSE BOX
  • 15
    4012170 COVER, DIAGNOSTIC
    COVER, DIAGNOSTIC
  • 16
    7080807 CLAMP, HOSE
    CLAMP, HOSE
  • 17
    4010725 RELAY, SPST, SEALED
    RELAY, SPST, SEALED
  • 18
    7670116 CLIP, ROUTING
    CLIP, ROUTING
  • 19
    7081496 CLIP, ROUTING
    CLIP, ROUTING
  • 20
    4014055 MODULE, RESISTOR
    MODULE, RESISTOR
