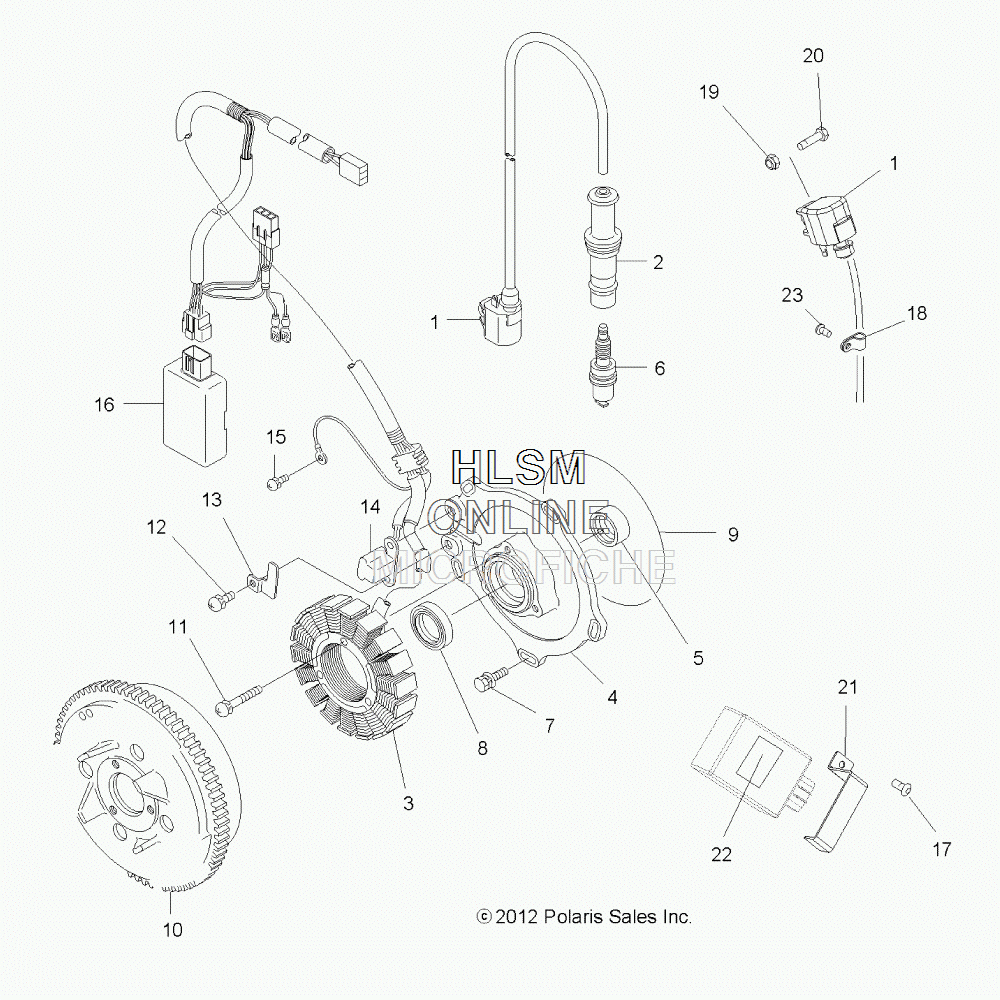

IGNITION SYSTEM для Polaris SPORTSMAN TOURING 500 HO - SAGEBRUSH GREEN METALLIC [A13DH50AX] - 2013 года выпуска
-
№АртикулНазвание
-
13090286 ASM., COIL, IGNITION (INCL. 2)ASM., COIL, IGNITION (INCL. 2)
-
23084980 CAP, SPARK PLUGCAP, SPARK PLUG
-
33089546 STATOR (INCL. 14)STATOR (INCL. 14)
-
43090061 ASM., PLATE (INCL. 3, 5,7,11-15)ASM., PLATE (INCL. 3, 5,7,11-15)
-
43089248 PLATEPLATE
-
53084972 BEARING, METALBEARING, METAL
-
63070172 PLUG, SPARK, BKR6EPLUG, SPARK, BKR6E
-
73083361 BOLT, FLANGEBOLT, FLANGE
-
83084973 SEAL, OILSEAL, OIL
-
93084978 O-RINGO-RING
-
103090239 FLYWHEEL W/RING GEARFLYWHEEL W/RING GEAR
-
113089547 ASM., SCREW AND WASHERASM., SCREW AND WASHER
-
123084976 ASM., SCREW AND WASHERASM., SCREW AND WASHER
-
133089250 BAND, PULSEBAND, PULSE
-
143089254 COIL, PULSERCOIL, PULSER
-
153081256 ASM., SCREW AND WASHERASM., SCREW AND WASHER
-
163090270 CDI SYSTEMCDI SYSTEM
-
177518284 SCREWSCREW
-
187080960 CLAMP, CABLECLAMP, CABLE
-
197541925 NUT, NYLOKNUT, NYLOK
-
207512007 BOLTBOLT
-
215246747 BRACKET, CDIBRACKET, CDI
-
225810317 PADPAD
-
237710561 FASTENER, PUSHFASTENER, PUSH
