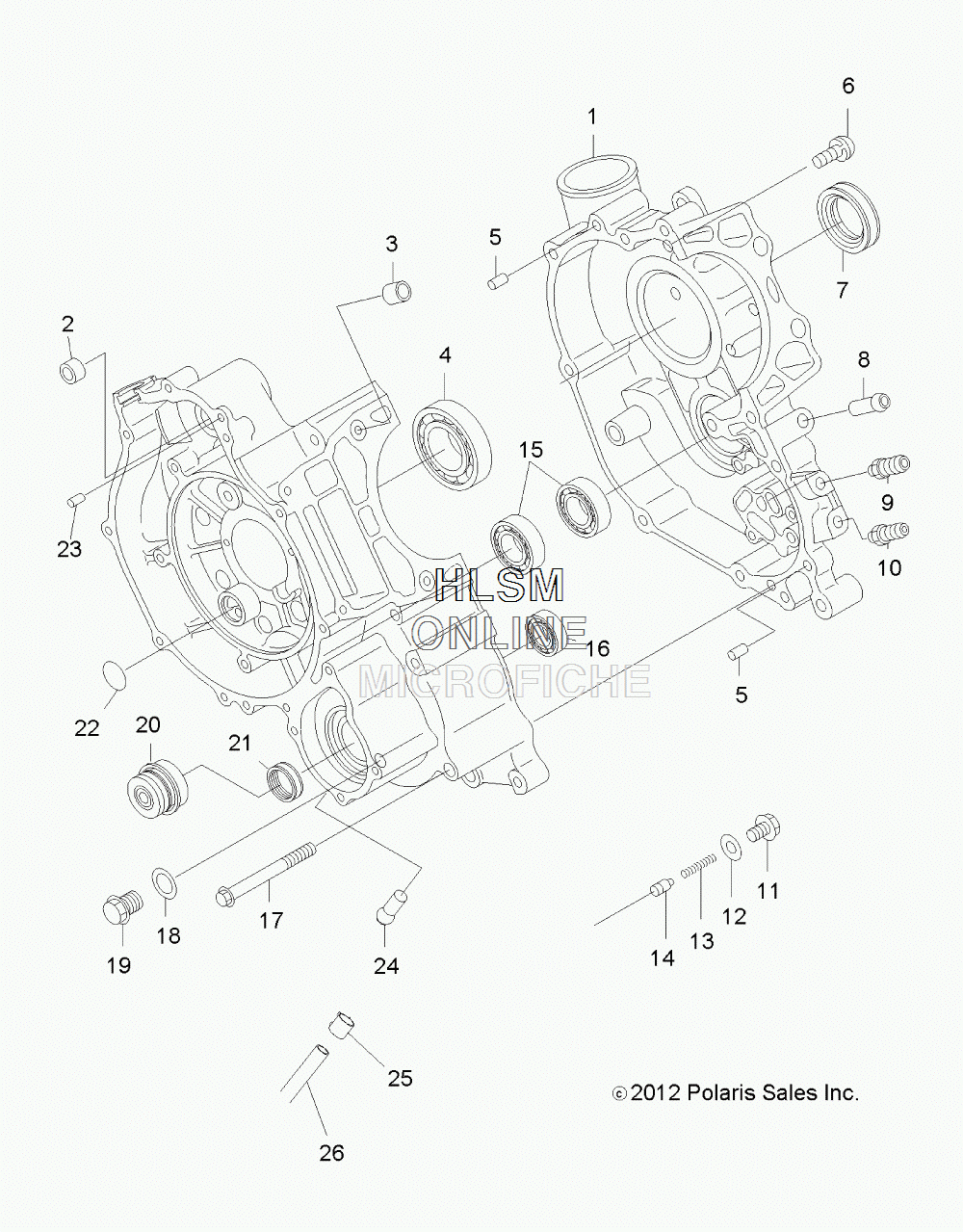

CRANKCASE для Polaris SPORTSMAN TOURING 500 HO - SAGEBRUSH GREEN METALLIC [A13DH50AX] - 2013 года выпуска
-
№АртикулНазвание
-
13089240 ASM., CRANKCASE (INCL. 2,4,5,7,8,15-17,20,21,23,24)ASM., CRANKCASE (INCL. 2,4,5,7,8,15-17,20,21,23,24)
-
23083669 BUSHING, STARTERBUSHING, STARTER
-
33087266 PIPE, KNOCKPIPE, KNOCK
-
43085815 BEARING, BALLBEARING, BALL
-
53090304 PIN, DOWELPIN, DOWEL
-
63084205 ASM., SCREW AND WASHERASM., SCREW AND WASHER
-
73084839 SEAL, OILSEAL, OIL
-
83085525 PIPE, AIR BREATHERPIPE, AIR BREATHER
-
93087154 UNIONUNION
-
103090305 UNIONUNION
-
113084845 PLUGPLUG
-
123089450 GASKET, ALUMINUMGASKET, ALUMINUM
-
133084844 SPRINGSPRING
-
143086810 VALVE, ONE WAYVALVE, ONE WAY
-
153084834 BEARING, BALLBEARING, BALL
-
163084835 BEARING, BALLBEARING, BALL
-
173084841 BOLT, FLANGEBOLT, FLANGE
-
183082956 GASKETGASKET
-
193086749 PLUGPLUG
-
203084837 SEAL, MECHANICALSEAL, MECHANICAL
-
213084836 SEAL, OILSEAL, OIL
-
223084847 O-RINGO-RING
-
233086838 PIN, DOWELPIN, DOWEL
-
243083798 PIPE, PULSEPIPE, PULSE
-
257080307 CLAMP, HOSECLAMP, HOSE
-
268450003-1525 LINE, FUELLINE, FUEL
