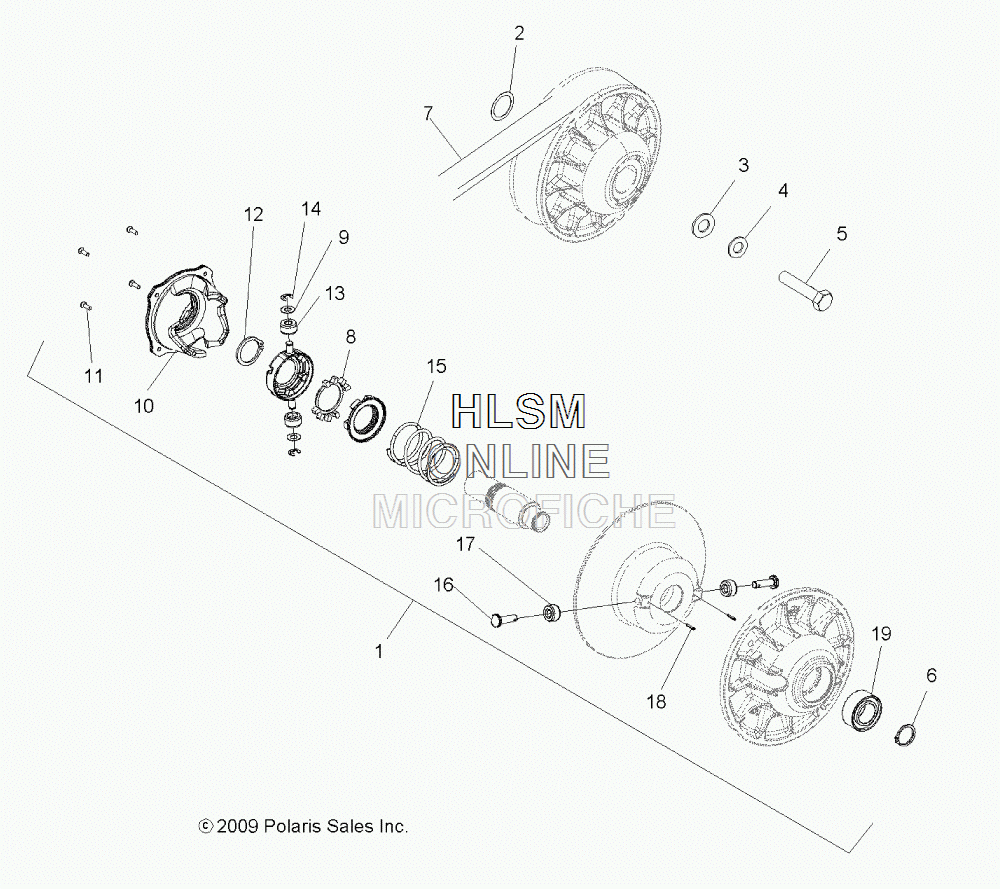

CLUTCH - SECONDARY для Polaris SPORTSMAN TOURING 500 HO - (INDY RED) [A13DH50AZ] - 2013 года выпуска
-
№АртикулНазвание
-
11322706 ASM., DRIVEN CLUTCH, EBS, DAMPED (INCL. 6,8-19)ASM., DRIVEN CLUTCH, EBS, DAMPED (INCL. 6,8-19)
-
27556120 BUSHINGBUSHING
-
35250562 WASHER, DOMEDWASHER, DOMED
-
47552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
57515327 BOLTBOLT
-
63234205 RING, RETAININGRING, RETAINING
-
73211113 BELT, DRIVEBELT, DRIVE
-
87710564 RETAINER, SPRING, INNERRETAINER, SPRING, INNER
-
97556226 WASHER, THRUSTWASHER, THRUST
-
103234356 ASM., CAMASM., CAM
-
113234192 SCREW, CAPSCREW, CAP
-
127710522 RING, RETAININGRING, RETAINING
-
133234207 ROLLER, CLUTCHROLLER, CLUTCH
-
147710523 E-RING, RETAININGE-RING, RETAINING
-
153234451 SPRING, COMPRESSION (RED)SPRING, COMPRESSION (RED)
-
163234201 PIN, ROLLERPIN, ROLLER
-
173234197 ROLLER, CLUTCHROLLER, CLUTCH
-
183234202 PIN, SPRING SLOTTEDPIN, SPRING SLOTTED
-
193234203 BEARING, BALLBEARING, BALL
