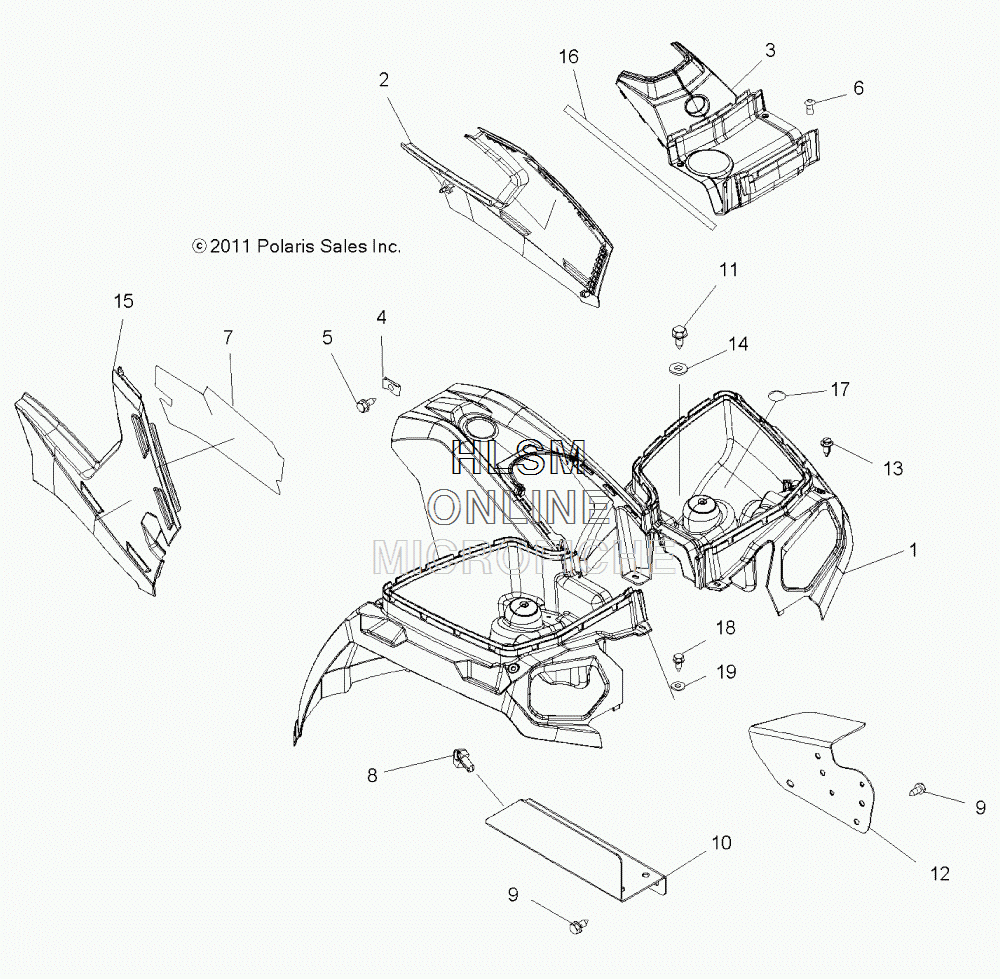

CAB - FRONT W/ SIDE PANELS для Polaris SPORTSMAN TOURING 500 HO - (INDY RED) [A13DH50AZ] - 2013 года выпуска
-
№АртикулНазвание
-
12634163-293 ASM., CAB, FRONT (INDY RED) (AZ) (INCL. WARNING DECALS)ASM., CAB, FRONT (INDY RED) (AZ) (INCL. WARNING DECALS)
-
25438554-070 PANEL, SIDE, LEFT HAND (BLACK)PANEL, SIDE, LEFT HAND (BLACK)
-
35439069-293 COVER, FRONT (INDY RED) (AZ)COVER, FRONT (INDY RED) (AZ)
-
47670057 NUT, SPEEDNUT, SPEED
-
57517386 SCREWSCREW
-
67519045 SCREWSCREW
-
75813653 FOIL, SIDE PANELFOIL, SIDE PANEL
-
87080756 CLIP, SNAP INCLIP, SNAP IN
-
97517386 SCREWSCREW
-
105248100-329 GUARD, SPLASH, RIGHT HANDGUARD, SPLASH, RIGHT HAND
-
117515399 SCREWSCREW
-
125246872 GUARD, SPLASH, LEFT HANDGUARD, SPLASH, LEFT HAND
-
137661855 RIVETRIVET
-
147555960 WASHER, FLATWASHER, FLAT
-
152634049-070 ASM., PANEL/FOIL, RIGHT HAND (BLACK) (INCL. 7)ASM., PANEL/FOIL, RIGHT HAND (BLACK) (INCL. 7)
-
165521697-350 SEAL, BULBSEAL, BULB
-
175412981 PLUG, COMPARTMENTPLUG, COMPARTMENT
-
187512232 SCREWSCREW
-
197555859 WASHER, FLATWASHER, FLAT
