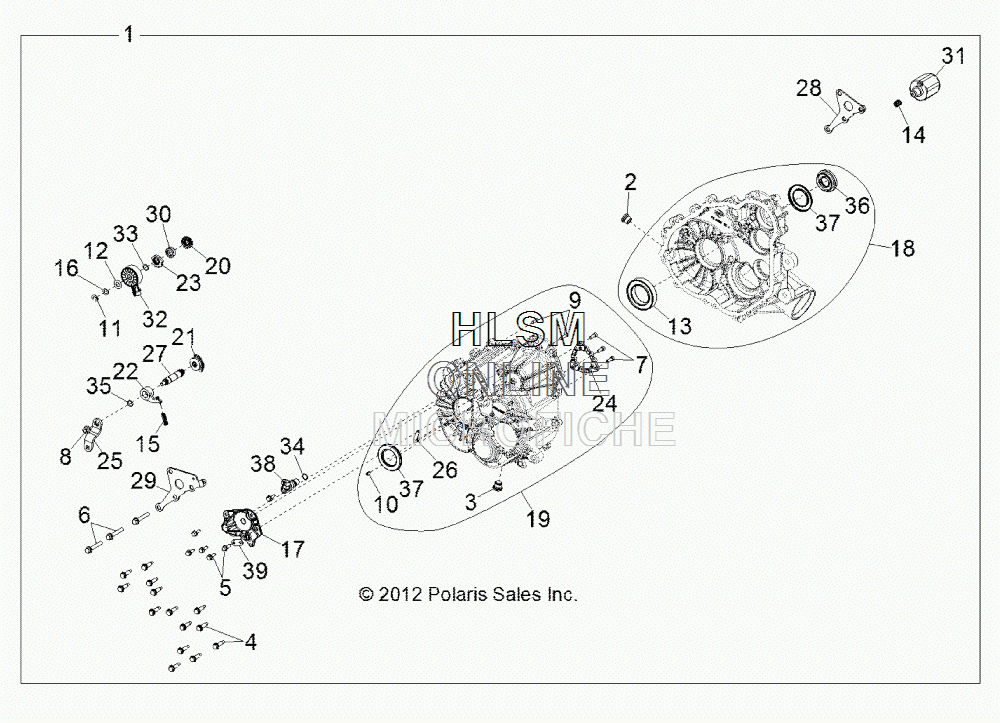

MAIN GEARCASE W/ EBS для Polaris RZR 570 EFI EBS BLACK [R13VH56EAK] - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    1333084 ASM. GEARCASE, EBS (INCL. ALL)
    ASM. GEARCASE, EBS (INCL. ALL)
  • 2
    3234755 PLUG
    PLUG
  • 3
    3234756 PLUG, MAGNETIC
    PLUG, MAGNETIC
  • 4
    3234898 SCREW, HEX FLANGE HEAD
    SCREW, HEX FLANGE HEAD
  • 5
    3235206 SCREW, HEX FLANGE HEAD
    SCREW, HEX FLANGE HEAD
  • 6
    3235207 SCREW, HEX FLANGE
    SCREW, HEX FLANGE
  • 7
    3235332 SCREW, SOCKET HEAD, CAP
    SCREW, SOCKET HEAD, CAP
  • 8
    3235210 NUT, HEX FLANGE, NYLON
    NUT, HEX FLANGE, NYLON
  • 9
    3234330 PIN, SOLID
    PIN, SOLID
  • 10
    7043746 PIN, SPRING, SLOTTED
    PIN, SPRING, SLOTTED
  • 11
    3233834 RING, SNAP
    RING, SNAP
  • 12
    3234642 WASHER, THRUST
    WASHER, THRUST
  • 13
    3233268 BEARING, BALL
    BEARING, BALL
  • 14
    3234277 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 15
    3233820 SPRING, TORSION
    SPRING, TORSION
  • 16
    3235327 SPRING, WASHER
    SPRING, WASHER
  • 17
    3234188 COVER, SECTOR GEARS
    COVER, SECTOR GEARS
  • 18
    3235422 SUBASM., LEFT HAND CASE (INCL. ALL HARDWARE)
    SUBASM., LEFT HAND CASE (INCL. ALL HARDWARE)
  • 19
    3235444 SUBASM., RIGHT HAND CASE (INCL. ALL HARDWARE)
    SUBASM., RIGHT HAND CASE (INCL. ALL HARDWARE)
  • 20
    3233839 GEAR, SECTOR, 16T
    GEAR, SECTOR, 16T
  • 21
    3233832 GEAR, SECTOR, 31T
    GEAR, SECTOR, 31T
  • 22
    3235452 PAWL, ROLLER
    PAWL, ROLLER
  • 23
    3235453 STAR, DETENT
    STAR, DETENT
  • 24
    3235456 PLATE, PARK
    PLATE, PARK
  • 25
    3235397 BELLCRANK
    BELLCRANK
  • 26
    3234230 TUBE, VENT
    TUBE, VENT
  • 27
    3235238 SHAFT, SHIFT
    SHAFT, SHIFT
  • 28
    3235239 BRACKET, REAR MOUNT
    BRACKET, REAR MOUNT
  • 29
    3235351 BRACKET, REAR MOUNT
    BRACKET, REAR MOUNT
  • 30
    3235243 SPACER
    SPACER
  • 31
    3234298 SOLENOID
    SOLENOID
  • 32
    7661999 SWITCH, ROTARY, 2 PIN RESISTIVE
    SWITCH, ROTARY, 2 PIN RESISTIVE
  • 33
    3233076 O-RING
    O-RING
  • 34
    3234302 O-RING
    O-RING
  • 35
    3233869 O-RING
    O-RING
  • 36
    3234851 SEAL
    SEAL
  • 37
    3235052 SEAL, TRIPLE LIP
    SEAL, TRIPLE LIP
  • 38
    4012167 SENSOR, SPEED
    SENSOR, SPEED
  • 39
    3235350 BRACKET, WIRE HARNESS
    BRACKET, WIRE HARNESS
  • 1
    1333084 ASM. GEARCASE, EBS (INCL. ALL)
    ASM. GEARCASE, EBS (INCL. ALL)
  • 2
    3234755 PLUG
    PLUG
  • 3
    3234756 PLUG, MAGNETIC
    PLUG, MAGNETIC
  • 4
    3234898 SCREW, HEX FLANGE HEAD
    SCREW, HEX FLANGE HEAD
  • 5
    3235206 SCREW, HEX FLANGE HEAD
    SCREW, HEX FLANGE HEAD
  • 6
    3235207 SCREW, HEX FLANGE
    SCREW, HEX FLANGE
  • 7
    3235332 SCREW, SOCKET HEAD, CAP
    SCREW, SOCKET HEAD, CAP
  • 8
    3235210 NUT, HEX FLANGE, NYLON
    NUT, HEX FLANGE, NYLON
  • 9
    3234330 PIN, SOLID
    PIN, SOLID
  • 10
    7043746 PIN, SPRING, SLOTTED
    PIN, SPRING, SLOTTED
  • 11
    3233834 RING, SNAP
    RING, SNAP
  • 12
    3234642 WASHER, THRUST
    WASHER, THRUST
  • 13
    3233268 BEARING, BALL
    BEARING, BALL
  • 14
    3234277 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 15
    3233820 SPRING, TORSION
    SPRING, TORSION
  • 16
    3235327 SPRING, WASHER
    SPRING, WASHER
  • 17
    3234188 COVER, SECTOR GEARS
    COVER, SECTOR GEARS
  • 18
    3235422 SUBASM., LEFT HAND CASE (INCL. ALL HARDWARE)
    SUBASM., LEFT HAND CASE (INCL. ALL HARDWARE)
  • 19
    3235444 SUBASM., RIGHT HAND CASE (INCL. ALL HARDWARE)
    SUBASM., RIGHT HAND CASE (INCL. ALL HARDWARE)
  • 20
    3233839 GEAR, SECTOR, 16T
    GEAR, SECTOR, 16T
  • 21
    3233832 GEAR, SECTOR, 31T
    GEAR, SECTOR, 31T
  • 22
    3235452 PAWL, ROLLER
    PAWL, ROLLER
  • 23
    3235453 STAR, DETENT
    STAR, DETENT
  • 24
    3235456 PLATE, PARK
    PLATE, PARK
  • 25
    3235397 BELLCRANK
    BELLCRANK
  • 26
    3234230 TUBE, VENT
    TUBE, VENT
  • 27
    3235238 SHAFT, SHIFT
    SHAFT, SHIFT
  • 28
    3235239 BRACKET, REAR MOUNT
    BRACKET, REAR MOUNT
  • 29
    3235351 BRACKET, REAR MOUNT
    BRACKET, REAR MOUNT
  • 30
    3235243 SPACER
    SPACER
  • 31
    3234298 SOLENOID
    SOLENOID
  • 32
    7661999 SWITCH, ROTARY, 2 PIN RESISTIVE
    SWITCH, ROTARY, 2 PIN RESISTIVE
  • 33
    3233076 O-RING
    O-RING
  • 34
    3234302 O-RING
    O-RING
  • 35
    3233869 O-RING
    O-RING
  • 36
    3234851 SEAL
    SEAL
  • 37
    3235052 SEAL, TRIPLE LIP
    SEAL, TRIPLE LIP
  • 38
    4012167 SENSOR, SPEED
    SENSOR, SPEED
  • 39
    3235350 BRACKET, WIRE HARNESS
    BRACKET, WIRE HARNESS
