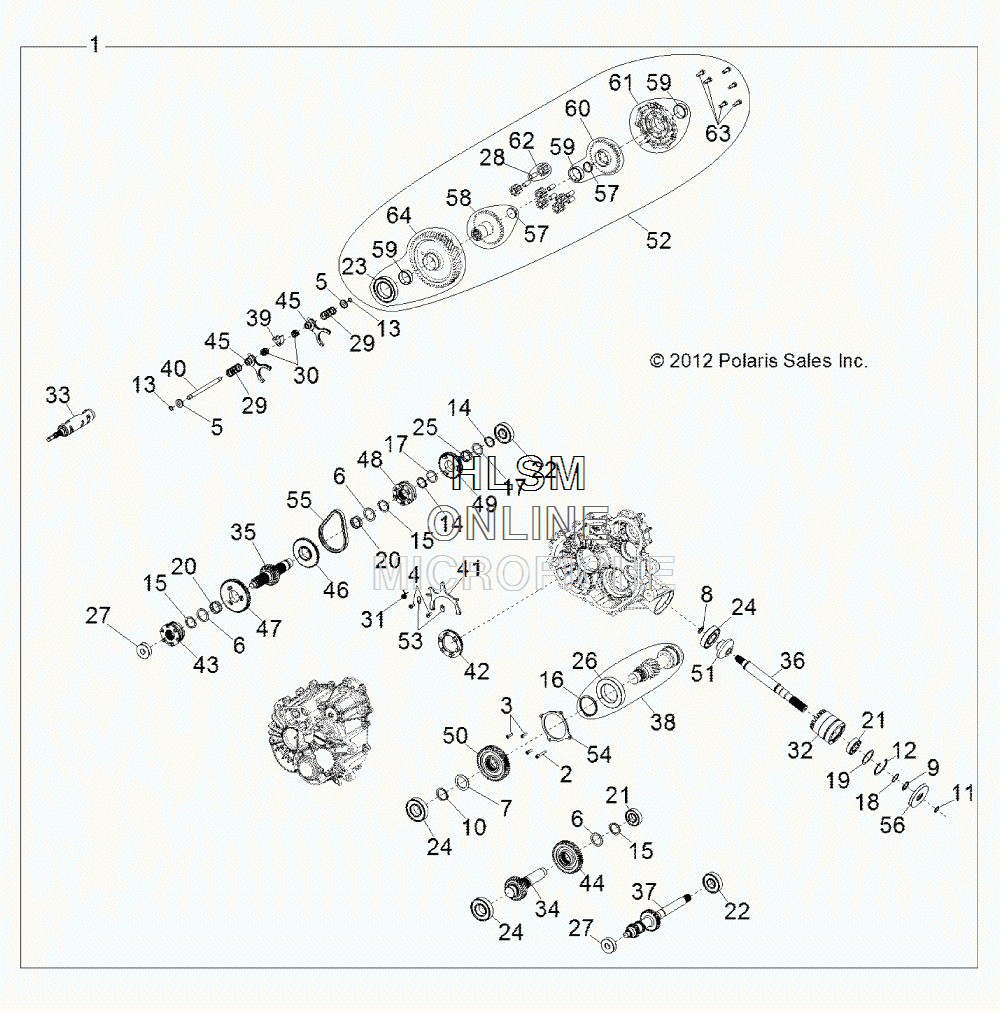

MAIN GEARCASE INTERNAL для Polaris RZR 570 EFI EBS BLACK [R13VH56EAK] - 2013 года выпуска
-
№АртикулНазвание
-
11333084 ASM. GEARCASE (INCL. ALL)ASM. GEARCASE (INCL. ALL)
-
23235208 SCREW, SOCKET/CAPSCREW, SOCKET/CAP
-
33235332 SCREW, SOCKET HEAD, CAPSCREW, SOCKET HEAD, CAP
-
43234329 SCREW, HEX, PAN HEADSCREW, HEX, PAN HEAD
-
53234091 WASHER, CUPWASHER, CUP
-
63235211 WASHERWASHER
-
73235212 WASHERWASHER
-
83235213 WASHERWASHER
-
93233106 RING, RETAINING, BASIC, EXTERNALRING, RETAINING, BASIC, EXTERNAL
-
103233364 RING, RETAININGRING, RETAINING
-
113234318 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
123234269 RING, RETAINING, BASIC, INTERNALRING, RETAINING, BASIC, INTERNAL
-
133234090 RING, RETAININGRING, RETAINING
-
143234205 RING, RETAININGRING, RETAINING
-
153235214 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
163235216 RING, RETAININGRING, RETAINING
-
173233378 WASHER, THRUSTWASHER, THRUST
-
183234272 SHIMSHIM
-
193234273 SHIMSHIM
-
203233014 BEARING, NEEDLEBEARING, NEEDLE
-
213233019 BEARINGBEARING
-
223233020 BEARINGBEARING
-
233233268 BEARING, BALLBEARING, BALL
-
243234065 BEARING, BALLBEARING, BALL
-
253233384 BEARING, NEEDLEBEARING, NEEDLE
-
263235218 BEARING, BALLBEARING, BALL
-
273234652 BEARING, BALLBEARING, BALL
-
293234078 SPRING, COMPRESSIONSPRING, COMPRESSION
-
303234089 SPRING, COMPRESSIONSPRING, COMPRESSION
-
313234276 SPRING, TORSION, RETURNSPRING, TORSION, RETURN
-
323234278 TUBE, SNORKELTUBE, SNORKEL
-
333235463 DRUM, SHIFTDRUM, SHIFT
-
343235223 SHAFT, IDLER, 29TSHAFT, IDLER, 29T
-
353235380 SHAFT, REVERSE, 27TSHAFT, REVERSE, 27T
-
363235394 SHAFT, FRONT OUTPUTSHAFT, FRONT OUTPUT
-
373235429 SHAFT, INPUTSHAFT, INPUT
-
383235336 SUBASM., PINION SHAFT (INCL. BEARING, RET.RING)SUBASM., PINION SHAFT (INCL. BEARING, RET.RING)
-
393234073 COLLAR, SHIFTCOLLAR, SHIFT
-
403234079 RAIL, SHIFT SHAFTRAIL, SHIFT SHAFT
-
413235455 FORK, SHIFTFORK, SHIFT
-
423234928 DOG, ENGAGEMENTDOG, ENGAGEMENT
-
433235457 SHIFT DOG, PARKSHIFT DOG, PARK
-
443235381 GEAR, 46T, STAGE 2GEAR, 46T, STAGE 2
-
453235454 FORK, SHIFTFORK, SHIFT
-
463235231 SPROCKET, 48T, 6-FACESPROCKET, 48T, 6-FACE
-
473235232 GEAR, LOW, 67TGEAR, LOW, 67T
-
483235233 ENGAGEMENT DOGENGAGEMENT DOG
-
493235234 GEAR, 53TGEAR, 53T
-
503235236 GEAR, 46T, STAGE 3GEAR, 46T, STAGE 3
-
513235237 GEAR, 13T, FRONT OUTPUTGEAR, 13T, FRONT OUTPUT
-
523235373 DIFF, LOCKINGDIFF, LOCKING
-
533234934 RETAINER, FORKRETAINER, FORK
-
543235241 COVER, BEARING, CENTER DRIVECOVER, BEARING, CENTER DRIVE
-
553234737 CHAIN, SILENTCHAIN, SILENT
-
563234113 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
573234249 PLUG, EXPANSIONPLUG, EXPANSION
-
583235374 SUBASM., 39T, SIDE GEAR (INCL. PLUGS)SUBASM., 39T, SIDE GEAR (INCL. PLUGS)
-
593234241 BEARING, PLAINBEARING, PLAIN
-
603235375 SUBASM., 39T, SIDE GEAR (INCL.PLUG, BUSHING)SUBASM., 39T, SIDE GEAR (INCL.PLUG, BUSHING)
-
613235376 SUBASM., DIFF COVER (INCL. PLUG, BUSHING)SUBASM., DIFF COVER (INCL. PLUG, BUSHING)
-
623234469 SUBASM., GEAR (INCL. BUSHING)SUBASM., GEAR (INCL. BUSHING)
-
633235096 SCREWSCREW
-
643235378 SUBASM., GEAR, 53T (INCL. PINS, BUSHING, BEARING)SUBASM., GEAR, 53T (INCL. PINS, BUSHING, BEARING)
-
11333084 ASM. GEARCASE (INCL. ALL)ASM. GEARCASE (INCL. ALL)
-
23235208 SCREW, SOCKET/CAPSCREW, SOCKET/CAP
-
33235332 SCREW, SOCKET HEAD, CAPSCREW, SOCKET HEAD, CAP
-
43234329 SCREW, HEX, PAN HEADSCREW, HEX, PAN HEAD
-
53234091 WASHER, CUPWASHER, CUP
-
63235211 WASHERWASHER
-
73235212 WASHERWASHER
-
83235213 WASHERWASHER
-
93233106 RING, RETAINING, BASIC, EXTERNALRING, RETAINING, BASIC, EXTERNAL
-
103233364 RING, RETAININGRING, RETAINING
-
113234318 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
123234269 RING, RETAINING, BASIC, INTERNALRING, RETAINING, BASIC, INTERNAL
-
133234090 RING, RETAININGRING, RETAINING
-
143234205 RING, RETAININGRING, RETAINING
-
153235214 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
163235216 RING, RETAININGRING, RETAINING
-
173233378 WASHER, THRUSTWASHER, THRUST
-
183234272 SHIMSHIM
-
193234273 SHIMSHIM
-
203233014 BEARING, NEEDLEBEARING, NEEDLE
-
213233019 BEARINGBEARING
-
223233020 BEARINGBEARING
-
233233268 BEARING, BALLBEARING, BALL
-
243234065 BEARING, BALLBEARING, BALL
-
253233384 BEARING, NEEDLEBEARING, NEEDLE
-
263235218 BEARING, BALLBEARING, BALL
-
273234652 BEARING, BALLBEARING, BALL
-
293234078 SPRING, COMPRESSIONSPRING, COMPRESSION
-
303234089 SPRING, COMPRESSIONSPRING, COMPRESSION
-
313234276 SPRING, TORSION, RETURNSPRING, TORSION, RETURN
-
323234278 TUBE, SNORKELTUBE, SNORKEL
-
333235463 DRUM, SHIFTDRUM, SHIFT
-
343235223 SHAFT, IDLER, 29TSHAFT, IDLER, 29T
-
353235380 SHAFT, REVERSE, 27TSHAFT, REVERSE, 27T
-
363235394 SHAFT, FRONT OUTPUTSHAFT, FRONT OUTPUT
-
373235429 SHAFT, INPUTSHAFT, INPUT
-
383235336 SUBASM., PINION SHAFT (INCL. BEARING, RET.RING)SUBASM., PINION SHAFT (INCL. BEARING, RET.RING)
-
393234073 COLLAR, SHIFTCOLLAR, SHIFT
-
403234079 RAIL, SHIFT SHAFTRAIL, SHIFT SHAFT
-
413235455 FORK, SHIFTFORK, SHIFT
-
423234928 DOG, ENGAGEMENTDOG, ENGAGEMENT
-
433235457 SHIFT DOG, PARKSHIFT DOG, PARK
-
443235381 GEAR, 46T, STAGE 2GEAR, 46T, STAGE 2
-
453235454 FORK, SHIFTFORK, SHIFT
-
463235231 SPROCKET, 48T, 6-FACESPROCKET, 48T, 6-FACE
-
473235232 GEAR, LOW, 67TGEAR, LOW, 67T
-
483235233 ENGAGEMENT DOGENGAGEMENT DOG
-
493235234 GEAR, 53TGEAR, 53T
-
503235236 GEAR, 46T, STAGE 3GEAR, 46T, STAGE 3
-
513235237 GEAR, 13T, FRONT OUTPUTGEAR, 13T, FRONT OUTPUT
-
523235373 DIFF, LOCKINGDIFF, LOCKING
-
533234934 RETAINER, FORKRETAINER, FORK
-
543235241 COVER, BEARING, CENTER DRIVECOVER, BEARING, CENTER DRIVE
-
553234737 CHAIN, SILENTCHAIN, SILENT
-
563234113 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
573234249 PLUG, EXPANSIONPLUG, EXPANSION
-
583235374 SUBASM., 39T, SIDE GEAR (INCL. PLUGS)SUBASM., 39T, SIDE GEAR (INCL. PLUGS)
-
593234241 BEARING, PLAINBEARING, PLAIN
-
603235375 SUBASM., 39T, SIDE GEAR (INCL.PLUG, BUSHING)SUBASM., 39T, SIDE GEAR (INCL.PLUG, BUSHING)
-
613235376 SUBASM., DIFF COVER (INCL. PLUG, BUSHING)SUBASM., DIFF COVER (INCL. PLUG, BUSHING)
-
623234469 SUBASM., GEAR (INCL. BUSHING)SUBASM., GEAR (INCL. BUSHING)
-
633235096 SCREWSCREW
-
643235378 SUBASM., GEAR, 53T (INCL. PINS, BUSHING, BEARING)SUBASM., GEAR, 53T (INCL. PINS, BUSHING, BEARING)
