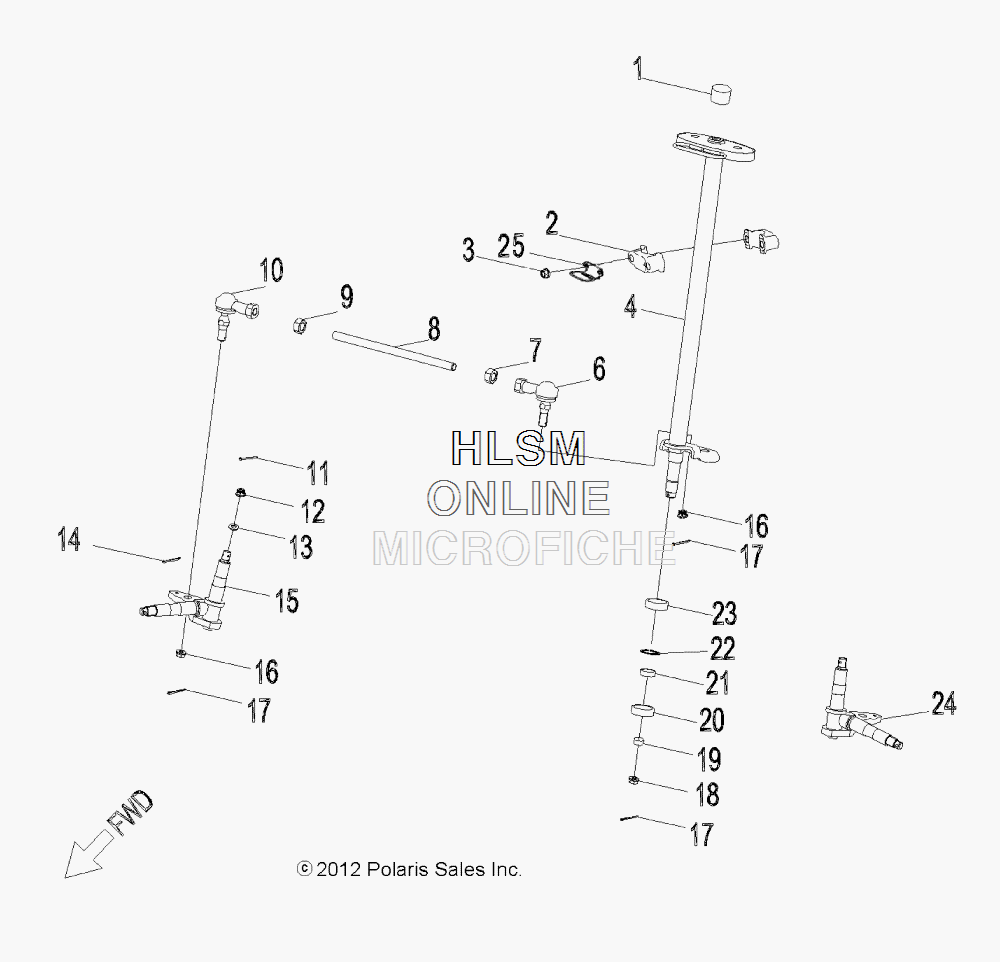

STEERING POST W/TIE RODS для Polaris OUTLAW 50 - PINK [A13KA05AD] - 2013 года выпуска`
-
№АртикулНазвание
-
10450499 SLEEVE, STEERINGSLEEVE, STEERING
-
20450505 HOLDER, STEERINGHOLDER, STEERING
-
30450268 NUTNUT
-
40451797-067 POST, STEERING (BLACK)POST, STEERING (BLACK)
-
60454746 ROD END, LEFT HANDROD END, LEFT HAND
-
70454749 NUT, TIE ROD, LEFT HANDNUT, TIE ROD, LEFT HAND
-
80454748 TIE RODTIE ROD
-
90454750 NUT, TIE ROD, RIGHT HANDNUT, TIE ROD, RIGHT HAND
-
100454747 ROD END, RIGHT HANDROD END, RIGHT HAND
-
110450507 PIN, COTTERPIN, COTTER
-
120450502 NUTNUT
-
130453513 WASHERWASHER
-
140450395 PIN, COTTERPIN, COTTER
-
150450916 KNUCKLE, LEFT HANDKNUCKLE, LEFT HAND
-
160450276 NUT, LOCKNUT, LOCK
-
170450719 PIN, COTTERPIN, COTTER
-
180450878 NUT, LOCKNUT, LOCK
-
190450390 SPACER, INNERSPACER, INNER
-
200450389 SEAL, OILSEAL, OIL
-
210450493 BEARING, BALLBEARING, BALL
-
220450161 CIRCLIPCIRCLIP
-
230450491 SEAL, OILSEAL, OIL
-
240450917 KNUCKLE, RIGHT HANDKNUCKLE, RIGHT HAND
-
250454879 BRACKET, GUIDE, WIREBRACKET, GUIDE, WIRE
