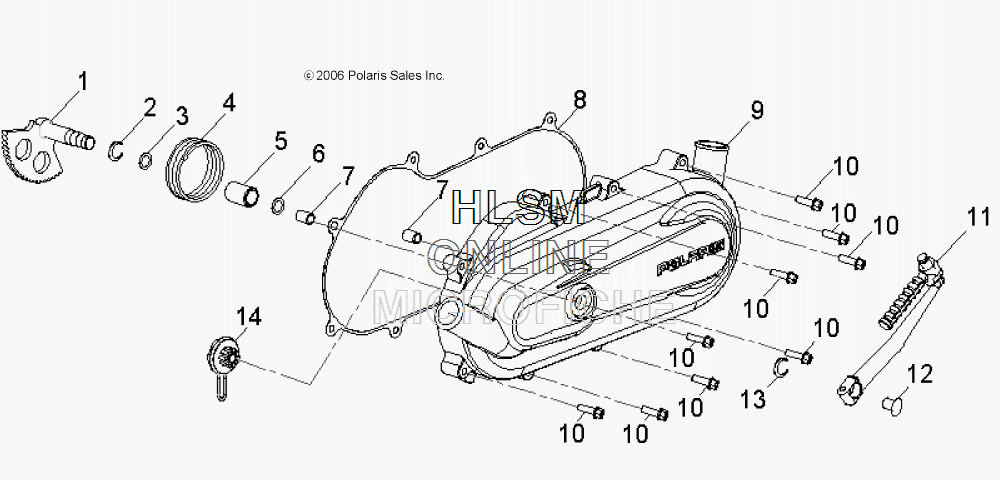

CLUTCH COVER W/ KICK STARTER для Polaris OUTLAW 50 - PINK [A13KA05AD] - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    0453835 ASM., SHAFT, KICK START
    ASM., SHAFT, KICK START
  • 2
    0453836 CLIP, SPRING
    CLIP, SPRING
  • 3
    0453837 O-RING
    O-RING
  • 4
    0450184 SPRING
    SPRING
  • 5
    0453469 BUSHING, KICK START
    BUSHING, KICK START
  • 6
    0453838 WASHER
    WASHER
  • 7
    0452342 PIN, DOWEL
    PIN, DOWEL
  • 8
    0453422 GASKET
    GASKET
  • 9
    0453839 COVER, CLUTCH
    COVER, CLUTCH
  • 10
    0452331 BOLT
    BOLT
  • 11
    0453840 ASM., KICK START
    ASM., KICK START
  • 12
    0453470 COVER, SPINDLE, KICK START
    COVER, SPINDLE, KICK START
  • 13
    0452339 CLIP, RETAINER
    CLIP, RETAINER
  • 14
    0451745 ASM., KICK PINION
    ASM., KICK PINION
