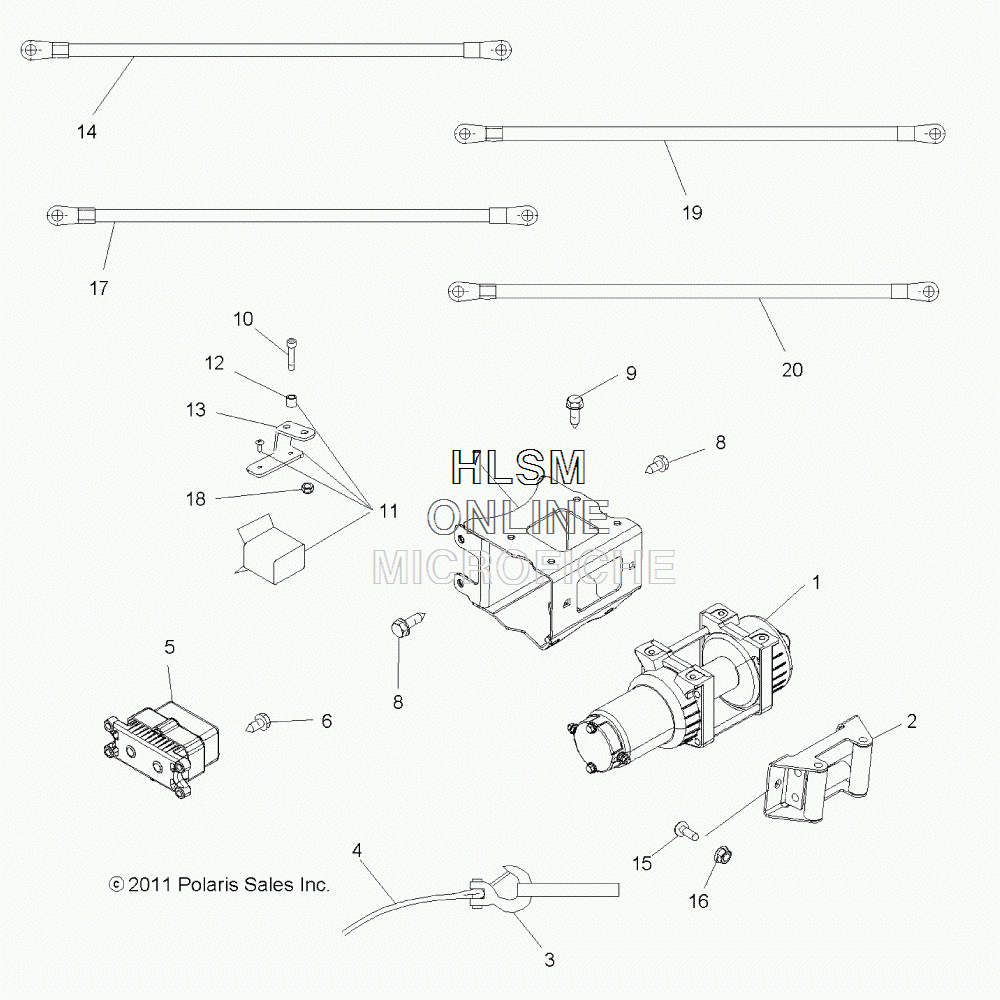

ACCESSORY - WINCH [BUILT 12/02/11 AND AFTER] для Polaris SPORTSMAN XP EPS 850 - POLARIS PURSUIT CAMO [A12ZN8EAT] - 2012 года выпуска`
-
№АртикулНазвание
-
12204631 WINCHWINCH
-
22411848 ROLLER, FAIRLEAD (INCL. BRACKET AND ROLLERS)ROLLER, FAIRLEAD (INCL. BRACKET AND ROLLERS)
-
32411836 HOOK, LATCHHOOK, LATCH
-
42878890 CABLE, WINCHCABLE, WINCH
-
54013465 CONTACTORCONTACTOR
-
67515179 SCREWSCREW
-
71018438 MOUNT, WINCHMOUNT, WINCH
-
87518514 BOLTBOLT
-
97518702 BOLTBOLT
-
107519220 SCREWSCREW
-
112875957 ASM., SWITCH, WINCH (INCL. SWITCH, BRACKET, SPACERS)ASM., SWITCH, WINCH (INCL. SWITCH, BRACKET, SPACERS)
-
125334334 SPACERSPACER
-
135250830 BRACKET, SWITCH, WINCHBRACKET, SWITCH, WINCH
-
144013468-440 CABLE, WINCH, YELLOWCABLE, WINCH, YELLOW
-
152878899 KIT, WINCH HARDWAREKIT, WINCH HARDWARE
-
162876802 NUT, NYLOKNUT, NYLOK
-
174013469-440 CABLE, WINCH, BLUECABLE, WINCH, BLUE
-
187546703 NUT, NYLOKNUT, NYLOK
-
194013470-485 CABLE, POWER, WINCH, BLACKCABLE, POWER, WINCH, BLACK
-
204013471-485 CABLE, POWER, WINCH, REDCABLE, POWER, WINCH, RED
