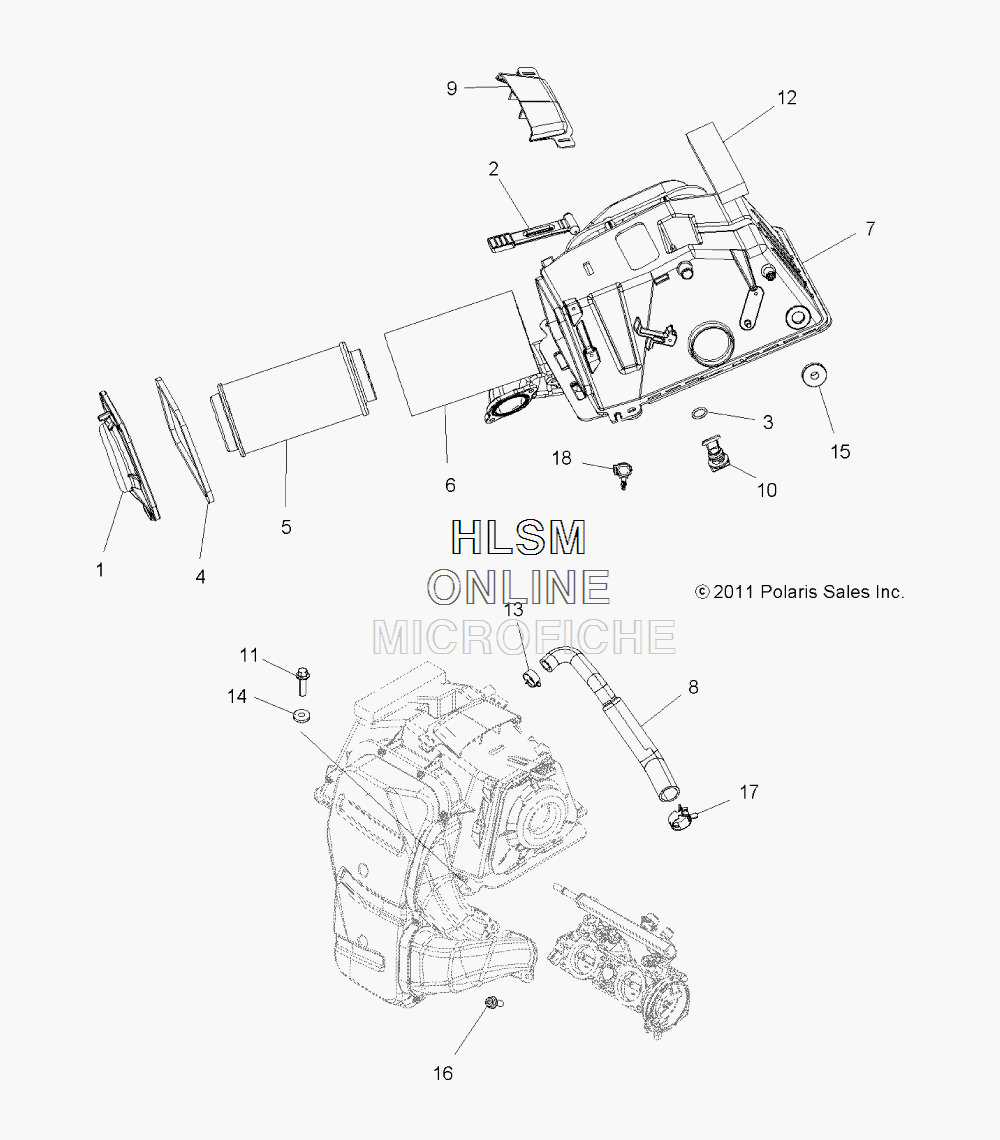

AIR INTAKE SYSTEM для Polaris SPORTSMAN XP EPS 850 - POLARIS PURSUIT CAMO [A12ZN8EAT] - 2012 года выпуска
-
№АртикулНазвание
-
15438983 COVER, AIRBOXCOVER, AIRBOX
-
25433150 STRAP, AIRBOX, TOPSTRAP, AIRBOX, TOP
-
35414246 O-RINGO-RING
-
45813359 SEAL, AIRBOX COVERSEAL, AIRBOX COVER
-
57080595 FILTER, AIR INTAKEFILTER, AIR INTAKE
-
65811633 FILTER, PRECLEANER SLEEVEFILTER, PRECLEANER SLEEVE
-
71240565 ASM., AIR INTAKE, BOX W/RUNNERSASM., AIR INTAKE, BOX W/RUNNERS
-
85414322 HOSE, BREATHER, TWINHOSE, BREATHER, TWIN
-
95414252 HOOD, AIR INTAKEHOOD, AIR INTAKE
-
105439103 PLUG, AIR BOXPLUG, AIR BOX
-
117518529 SCREWSCREW
-
125813409 FOAMFOAM
-
137081026 CLAMP, HOSECLAMP, HOSE
-
147555859 WASHER, FLATWASHER, FLAT
-
155413423 GROMMET, SUPPORT, TRUNKGROMMET, SUPPORT, TRUNK
-
167518803 SCREWSCREW
-
177080843 CLAMP, SPRINGBAND, BROWN (BUILT 10/10/11 AND BEFORE)CLAMP, SPRINGBAND, BROWN (BUILT 10/10/11 AND BEFORE)
-
177080842 CLAMP, SPRINGBAND, BLACK (BUILT 10/11/11 AND AFTER)CLAMP, SPRINGBAND, BLACK (BUILT 10/11/11 AND AFTER)
-
184010589 CLIP, PLASTICCLIP, PLASTIC
