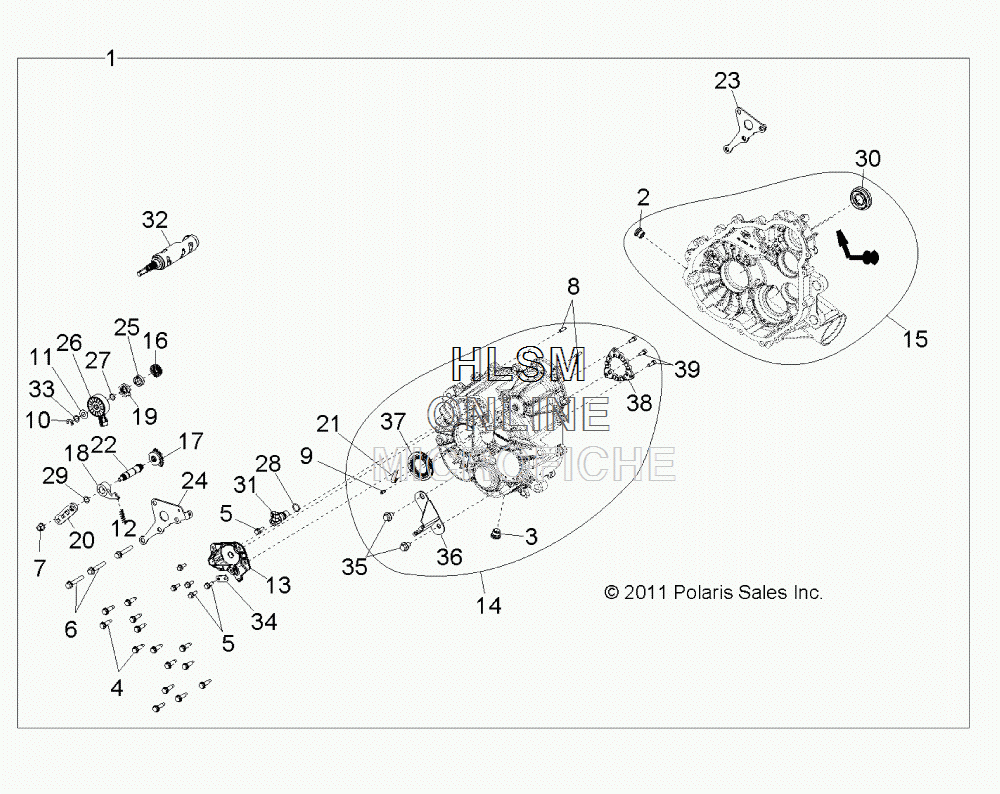

MAIN GEARCASE для Polaris RZR 4 XP 900 POWERSTEERING INDY RED [R12XT89EAS] - 2012 года выпуска
-
№АртикулНазвание
-
11332995 ASM., GEARCASE (INCL. ALL)ASM., GEARCASE (INCL. ALL)
-
23234755 PLUGPLUG
-
33234756 PLUGPLUG
-
43234898 SCREWSCREW
-
53235206 SCREWSCREW
-
63235207 SCREWSCREW
-
73235210 NUTNUT
-
83234330 PIN, SOLIDPIN, SOLID
-
97043746 PIN, SPRING, SLOTTEDPIN, SPRING, SLOTTED
-
103233834 RING, RETAININGRING, RETAINING
-
113234642 WASHER, THRUSTWASHER, THRUST
-
123234578 SPRING, COMPRESSION, DETENTSPRING, COMPRESSION, DETENT
-
133234188 SUBASM., SECTOR COVER W/PINSSUBASM., SECTOR COVER W/PINS
-
143235391 SUBASM., CASE, RIGHT HANDSUBASM., CASE, RIGHT HAND
-
153235333 SUBASM., CASE, LEFT HANDSUBASM., CASE, LEFT HAND
-
163233839 GEAR, 16TGEAR, 16T
-
173233832 GEAR, 31TGEAR, 31T
-
183233829 PAWL, DETENTPAWL, DETENT
-
193233909 STAR, DETENTSTAR, DETENT
-
203235227 BELLCRANKBELLCRANK
-
213234230 TUBE, VENTTUBE, VENT
-
223235238 SHAFT, SHIFTSHAFT, SHIFT
-
233235239 BRACKET, MOUNT, REARBRACKET, MOUNT, REAR
-
243235351 BRACKET, MOUNT, REARBRACKET, MOUNT, REAR
-
253235243 SPACERSPACER
-
267661999 PIN, GEAR POSITION SWITCHPIN, GEAR POSITION SWITCH
-
273233076 O-RINGO-RING
-
283234302 O-RINGO-RING
-
293233869 O-RINGO-RING
-
303234851 SEALSEAL
-
314012167 SENSOR, SPEEDSENSOR, SPEED
-
323235220 DRUM, SHIFTDRUM, SHIFT
-
333235327 WASHER, SPRINGWASHER, SPRING
-
343235350 BRACKET, MOUNTBRACKET, MOUNT
-
357519353 BOLTBOLT
-
361018419 BRACKET, SHIFT CABLEBRACKET, SHIFT CABLE
-
373235052 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
383235221 PLATE, PARK, 12 FACEPLATE, PARK, 12 FACE
-
393235332 SCREWSCREW
