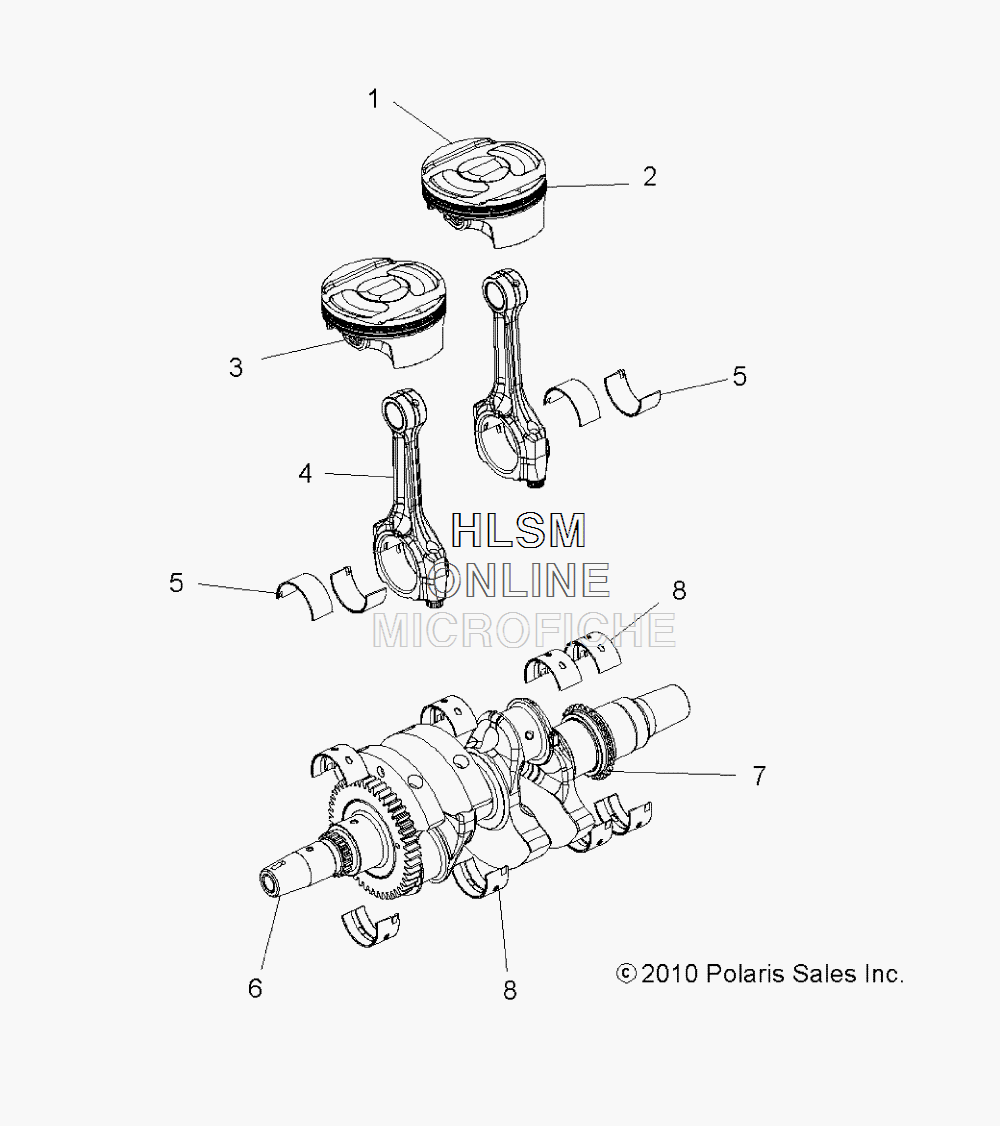

CRANKSHAFT AND PISTON для Polaris RZR 4 XP 900 POWERSTEERING INDY RED [R12XT89EAS] - 2012 года выпуска
-
№АртикулНазвание
-
12204637 KIT, PISTON (INCL. 1 PISTON, 1 PIN, 1 RING SET, 2 CLIPS)KIT, PISTON (INCL. 1 PISTON, 1 PIN, 1 RING SET, 2 CLIPS)
-
22204509 KIT, PISTON RING (INCL. 1 TOP, 1 MIDDLE AND 1 BOTTOM RING)KIT, PISTON RING (INCL. 1 TOP, 1 MIDDLE AND 1 BOTTOM RING)
-
33022190 PIN, PISTONPIN, PISTON
-
33022328 CIRCLIP, PISTONCIRCLIP, PISTON
-
41204403 ASM., CONNECTING ROD (INCL. ROD, CAP, 2 BOLTS)ASM., CONNECTING ROD (INCL. ROD, CAP, 2 BOLTS)
-
53514663-001 BEARING, CONNECTIN ROD, WHITEBEARING, CONNECTIN ROD, WHITE
-
53514663-002 BEARING, CONNECTIN ROD, BLUEBEARING, CONNECTIN ROD, BLUE
-
53514663-003 BEARING, CONNECTIN ROD, GREENBEARING, CONNECTIN ROD, GREEN
-
53514663-004 BEARING, CONNECTIN ROD, YELLOWBEARING, CONNECTIN ROD, YELLOW
-
61204528 ASM., CRANKSHAFT (INCL. CRANK, 7)ASM., CRANKSHAFT (INCL. CRANK, 7)
-
73222187 SPROCKET, AUXILLARY DRIVESPROCKET, AUXILLARY DRIVE
-
83514662-001 BEARING, MAIN, WHITEBEARING, MAIN, WHITE
-
83514662-002 BEARING, MAIN, BLUEBEARING, MAIN, BLUE
-
83514662-003 BEARING, MAIN, GREENBEARING, MAIN, GREEN
-
83514662-004 BEARING, MAIN, YELLOWBEARING, MAIN, YELLOW
-
83514662-005 BEARING, MAIN, REDBEARING, MAIN, RED
