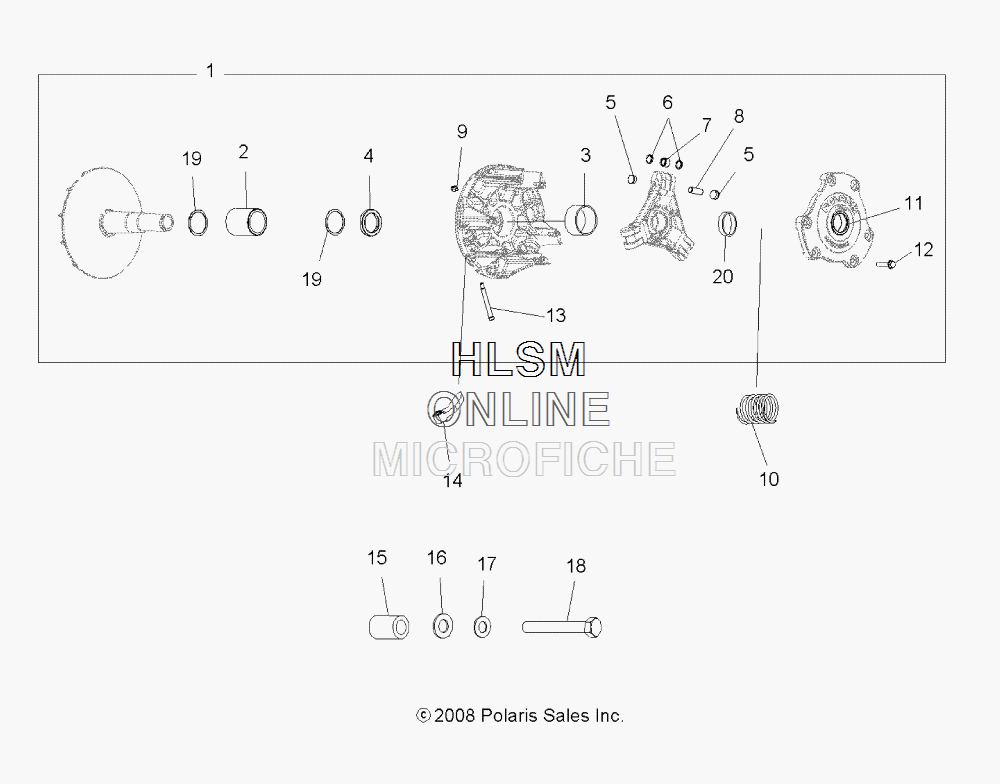

CLUTCH - PRIMARY для Polaris SPORTSMAN XP 850 - SAGEBRUSH GREEN METALLIC (A11ZN85AA) - 2011 года выпуска`
-
№АртикулНазвание
-
11322953 CLUTCH, DRIVE, BASIC (INCL. 1-9,11-13,19)CLUTCH, DRIVE, BASIC (INCL. 1-9,11-13,19)
-
21521172 ASM., CLUTCH, ONEWAY (BUILT 8/23/10 AND BEFORE)ASM., CLUTCH, ONEWAY (BUILT 8/23/10 AND BEFORE)
-
21521667 ASM., CLUTCH, ONEWAY (BUILT 8/24/10 AND AFTER)ASM., CLUTCH, ONEWAY (BUILT 8/24/10 AND AFTER)
-
33514492 BEARINGBEARING
-
45632328 SPACER, CLUTCH, PMSPACER, CLUTCH, PM
-
55431936 BUTTON, CLUTCHBUTTON, CLUTCH
-
65438247 WASHER, CLUTCH, SPIDER ROLLERWASHER, CLUTCH, SPIDER ROLLER
-
71321622 ASM., ROLLER AND BUSHINGASM., ROLLER AND BUSHING
-
85020422 PIN, ROLLERPIN, ROLLER
-
97541906 NUT, FLEXLOCNUT, FLEXLOC
-
107043549 SPRING, CLUTCH, 48-240SPRING, CLUTCH, 48-240
-
113514684 COVER, BEARINGCOVER, BEARING
-
127518062 SCREWSCREW
-
137512266 BOLT, SHOULDERBOLT, SHOULDER
-
145632216 WEIGHT, SHIFT, 24-60G PMWEIGHT, SHIFT, 24-60G PM
-
155437682 BUSHINGBUSHING
-
167556468 WASHER, FLATWASHER, FLAT
-
177556377 WASHER, INTERLOCKWASHER, INTERLOCK
-
187518868 BOLTBOLT
-
197556335 WASHERWASHER
-
205438737 SPACER, CLUTCH LIMITERSPACER, CLUTCH LIMITER
