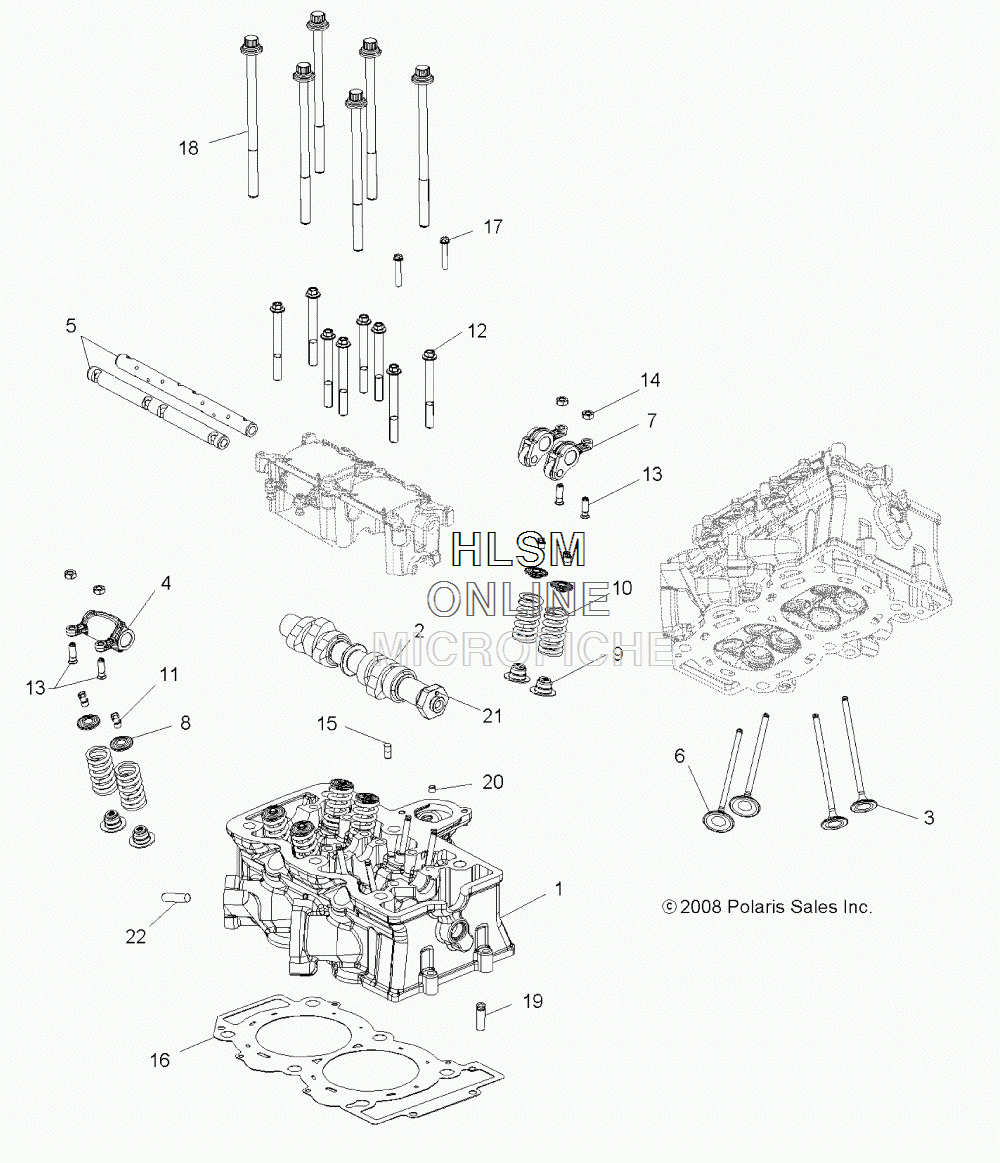

CYLINDER HEAD - CAM - VALVES для Polaris SPORTSMAN XP 850 - SAGEBRUSH GREEN METALLIC (A11ZN85AA) - 2011 года выпуска`
-
№АртикулНазвание
-
13022097 ASM., CYLINDER HEAD (INCL. CAMSHAFT CARRIER)ASM., CYLINDER HEAD (INCL. CAMSHAFT CARRIER)
-
23022252 ASM., CAM SHAFT (INCL. 21)ASM., CAM SHAFT (INCL. 21)
-
33022272 VALVE, EXHAUSTVALVE, EXHAUST
-
41204159 ASM., ARM ROCKER, EXHAUST (INCL. ARM, SCREW, NUT)ASM., ARM ROCKER, EXHAUST (INCL. ARM, SCREW, NUT)
-
53021826 SHAFT, ROCKERSHAFT, ROCKER
-
63022099 VALVE, INTAKEVALVE, INTAKE
-
71204160 ASM., ARM ROCKER, INTAKE (INCL. ARM, SCREW, NUT)ASM., ARM ROCKER, INTAKE (INCL. ARM, SCREW, NUT)
-
83021865 RETAINER, VALVERETAINER, VALVE
-
93610165 SEALSEAL
-
107043352 SPRING, VALVESPRING, VALVE
-
117081470 KEEPER, VALVEKEEPER, VALVE
-
127518799 SCREWSCREW
-
135136463 SCREW, LASH ADJUSTERSCREW, LASH ADJUSTER
-
147547335 NUT, LOCKNUT, LOCK
-
152540080 JET, OILJET, OIL
-
165813345 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
177518578 SCREWSCREW
-
187519219 BOLT, HEADBOLT, HEAD
-
193022094 GUIDE, VALVEGUIDE, VALVE
-
205132835 PIN, DOWELPIN, DOWEL
-
215135619 PIN, DOWELPIN, DOWEL
-
225132040 STUD, EXHAUST MOUNTSTUD, EXHAUST MOUNT
