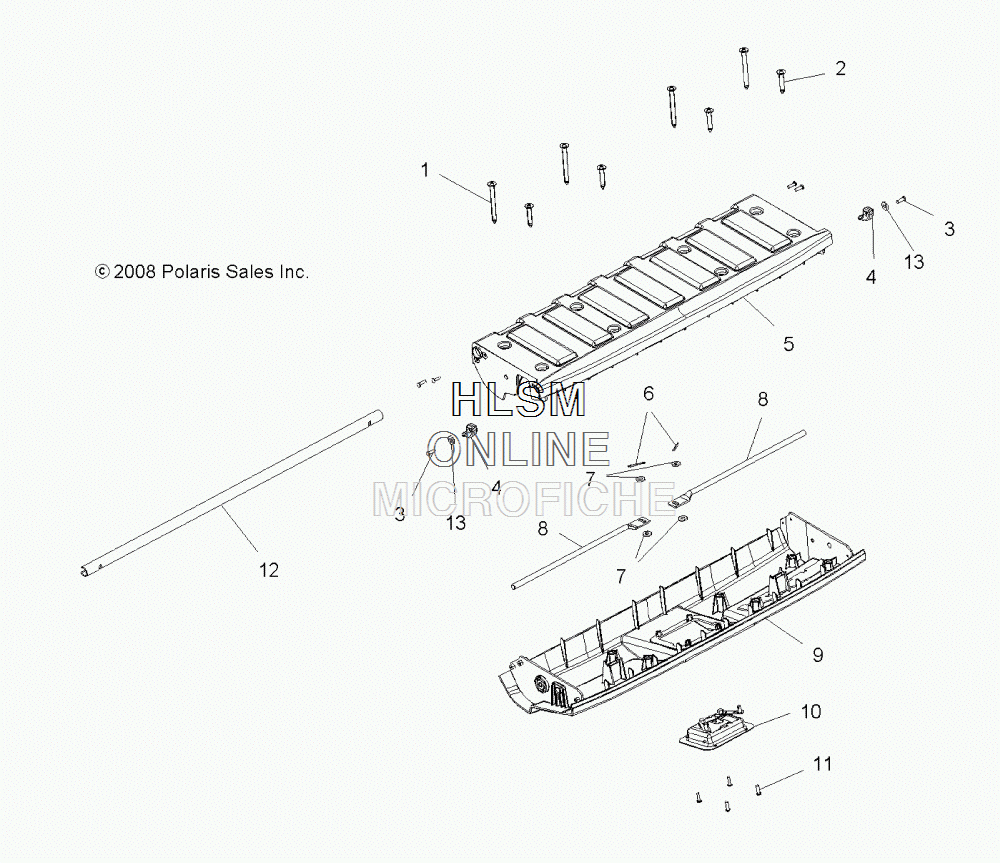

TAILGATE для Polaris SPORTSMAN X2 550 INTL (A11TN55FA) - 2011 года выпуска
-
№АртикулНазвание
-
62633854 ASM., TAILGATE (INCL. 1-12)ASM., TAILGATE (INCL. 1-12)
-
17518357 SCREWSCREW
-
27518356 SCREWSCREW
-
37518922 SCREWSCREW
-
45413668 BUMPER, TAILGATEBUMPER, TAILGATE
-
55437272-070 TAILGATE, INNER (BLACK)TAILGATE, INNER (BLACK)
-
67661644 PIN, HITCHPIN, HITCH
-
77556492 WASHER, SHOULDERWASHER, SHOULDER
-
85136783 ROD, LATCH TAILGATEROD, LATCH TAILGATE
-
95437273-070 TAILGATE, OUTER (BLACK)TAILGATE, OUTER (BLACK)
-
107081420 LATCH, PADDLE, TAILGATELATCH, PADDLE, TAILGATE
-
117518227 SCREWSCREW
-
125335828-329 TUBE, PIVOT TAILGATETUBE, PIVOT TAILGATE
-
137555792 WASHERWASHER
Все узлы модели:
- A-ARMS - FRONT
- AIR INTAKE SYSTEM
- BATTERY
- BOX - REAR
- BOX FRAME W/ LATCH
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - PEDAL W/MASTER CYLINDER
- BRAKE - REAR CALIPER
- BRAKE - VALVE SYSTEM
- BRAKE LINES
- BREATHER PIPE
- BUMPER - FRONT
- CAB - FRONT
- CAB - REAR W/FOOTWELLS
- CAMSHAFT W/ VALVE ASSY.
- CARGO BOX - FRONT
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH COVER
- COOLING SYSTEM
- COOLING SYSTEM - WATER PUMP
- CRANKCASE
- CRANKSHAFT W/ CYLINDER
- CYLINDER
- DECALS
- DIFFERENTIAL - REAR - INTERNALS
- DRIVE COUPLER (BUILT 1/03/11 AND BEFORE)
- DRIVE COUPLER (BUILT 1/04/11 AND AFTER)
- DRIVESHAFT - FRONT
- DRIVESHAFT - REAR
- ELECTRICAL - BULBS
- ELECTRICAL COMPONENTS
- ENGINE - MOUNTING
- EXHAUST SYSTEM
- FRAME
- FUEL INJECTOR
- FUEL TANK
- GAUGES AND INDICATORS
- GEAR SELECTOR
- GEARCASE - FRONT - MOUNTING
- GEARCASE - INTERNAL COMPONENTS - FRONT
- GEARCASE - MAIN (BUILT 1/04/11 AND AFTER)
- GEARCASE - MAIN - INTERNALS (BUILT 1/03/11 AND BEFORE)
- GEARCASE - MAIN - INTERNALS (BUILT 1/04/11 AND AFTER)
- GEARCASE - MAIN - SHIFT FORKS (BUILT 1/03/11 AND BEFORE)
- GEARCASE - MAIN - SHIFT FORKS (BUILT 1/04/11 AND AFTER)
- GEARCASE - REAR - MOUNTING
- HANDLEBAR - CONTROL ASSY.
- HEADLIGHT
- HEADLIGHT POD
- IGNITION SYSTEM
- MAGNETO COVER
- MAIN GEARCASE (BUILT 1/03/11 AND BEFORE)
- MANUAL - OWNERS
- MIRRORS
- OIL FILTER
- OIL PUMP
- PROP SHAFT - FRONT (BUILT 11/22/10 AND BEFORE)
- PROP SHAFT - FRONT (BUILT 11/23/10 AND AFTER)
- PROP SHAFT - REAR
- RACK - FRONT SUPPORT
- SEAT - OPERATOR
- SEAT - PASSENGER - BACK
- SEAT - PASSENGER- BOTTOM
- SHOCK ABSORBER - FRONT
- SHOCK ABSORBER - REAR
- SHORT BLOCK
- SKID PLATES
- STARTING MOTOR
- STEERING POST
- SUSPENSION - REAR
- SUSPENSION - TORSION BAR
- TAIL LIGHT
- • TAILGATE
- TAILGATE BRACKETS
- THROTTLE ASSEMBLY
- THROTTLE BODY
- TOOL KIT
- TURN SIGNALS AND HORN
- WHEEL - FRONT W/ HUB
- WHEEL - REAR W/ HUB
- WIRE HARNESS
