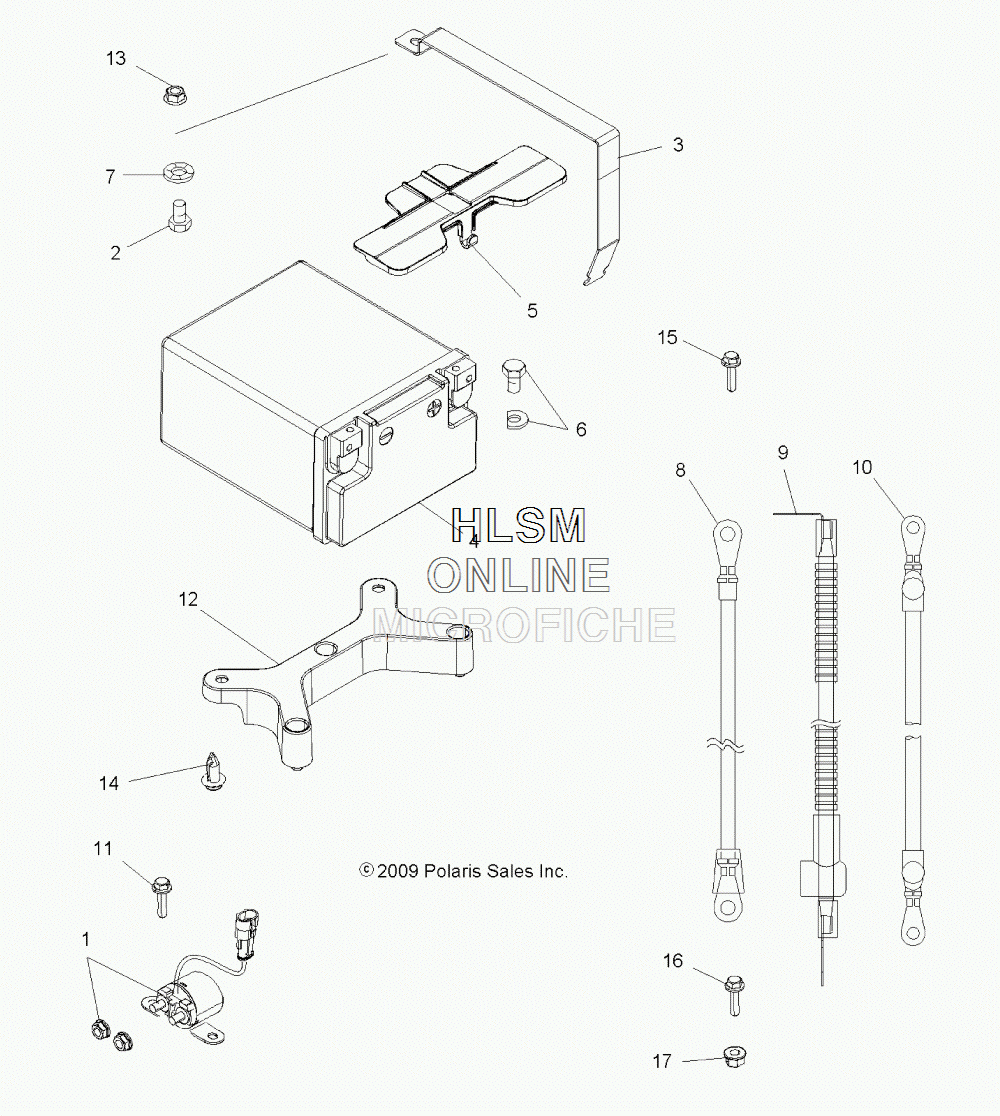

BATTERY для Polaris SPORTSMAN X2 550 INTL (A11TN55FA) - 2011 года выпуска`
![](/wa-data/public/shop/sheme/polaris/atv/5950cbaf-bc42-403f-a28b-fd2b8777b3f0.gif)
-
№АртикулНазвание
-
14012013 SOLENOID, STARTERSOLENOID, STARTER
-
27518925 SCREWSCREW
-
35253380 BRACKET, BATTERY STRAPBRACKET, BATTERY STRAP
-
44011138 BATTERY, SEALED, 14-AHBATTERY, SEALED, 14-AH
-
55438299 COVER, BATTERYCOVER, BATTERY
-
62202848 KIT, BATTERY BOLTKIT, BATTERY BOLT
-
77670154 RETAINER, BOLTRETAINER, BOLT
-
84012709 CABLE (BLACK)CABLE (BLACK)
-
94012721 CABLE, BATTERY TO SOLENOID/TERMINALCABLE, BATTERY TO SOLENOID/TERMINAL
-
104012856 CABLE, SOLENOID TO STARTERCABLE, SOLENOID TO STARTER
-
117518513 BOLT, FLANGEBOLT, FLANGE
-
125438228 SPACER, BATTERYSPACER, BATTERY
-
137547274 NUT, FLANGENUT, FLANGE
-
147661855 RIVETRIVET
-
157517653 SCREWSCREW
-
167519145 SCREW, FLANGESCREW, FLANGE
-
177547274 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
