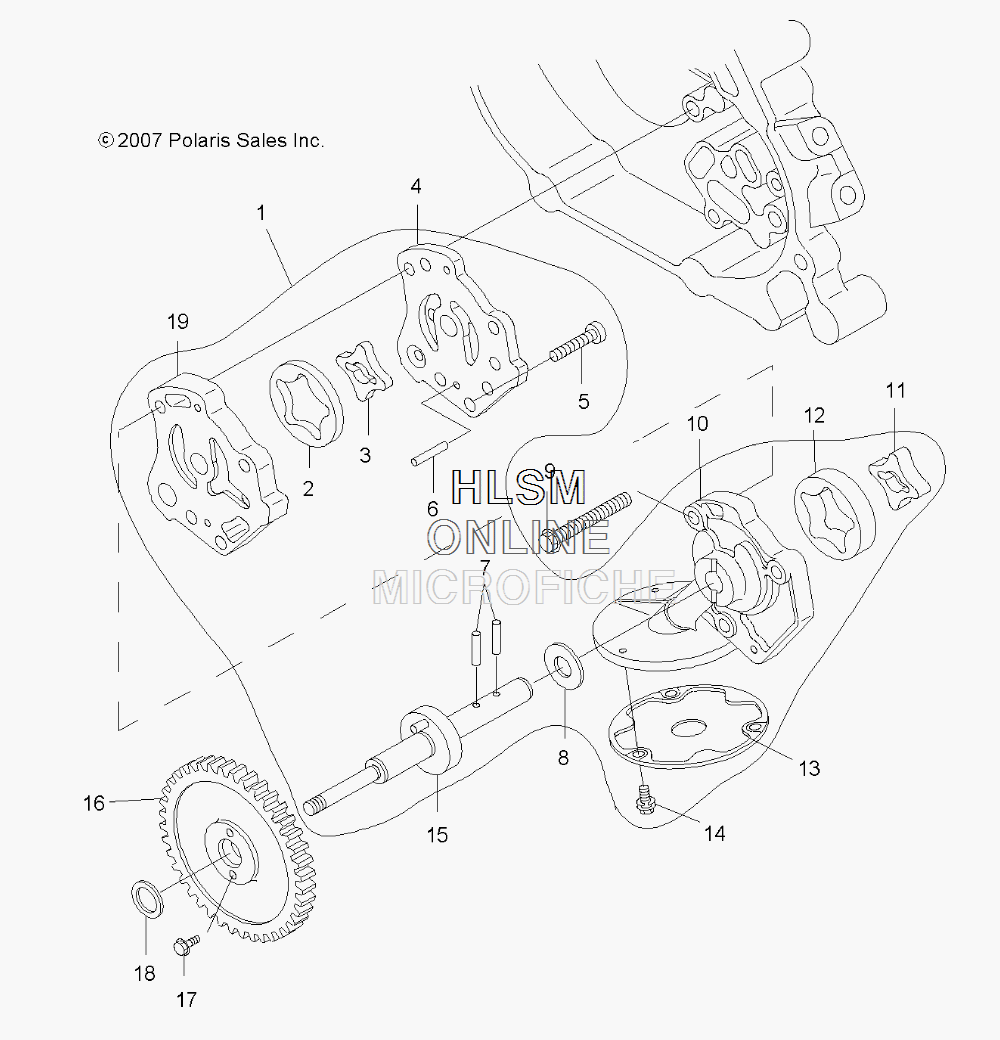

OIL PUMP для Polaris SCRAMBLER 500 4X4 (A11NG50AA) - 2011 года выпуска`
-
№АртикулНазвание
-
13090032 ASM., OIL PUMP (INCL. 2-8,10-15,19)ASM., OIL PUMP (INCL. 2-8,10-15,19)
-
23084949 ROTOR, OUTER, FEEDROTOR, OUTER, FEED
-
33084948 ROTOR, INNER, FEEDROTOR, INNER, FEED
-
43090000 PUMP, OIL, CASE 1PUMP, OIL, CASE 1
-
53085535 SCREWSCREW
-
63084955 PIN, DOWELPIN, DOWEL
-
73084954 PIN, DOWELPIN, DOWEL
-
83084953 WASHERWASHER
-
93084962 BOLT AND WASHERBOLT AND WASHER
-
103087265 PUMP, OIL, CASE 3PUMP, OIL, CASE 3
-
113084950 ROTOR, INNERROTOR, INNER
-
123084951 ROTOR, OUTERROTOR, OUTER
-
133084956 UNIT, OIL STRAINERUNIT, OIL STRAINER
-
143084205 SCREW AND WASHERSCREW AND WASHER
-
153085858 SHAFT, PUMPSHAFT, PUMP
-
163090033 GEAR 2, PUMPGEAR 2, PUMP
-
173089505 BOLT, FLANGEBOLT, FLANGE
-
183084959 SPACER, 0.8SPACER, 0.8
-
183084960 SPACER, 1.0SPACER, 1.0
-
183084961 SPACER, 1.2SPACER, 1.2
-
193084946 PUMP, OIL, CASE 2PUMP, OIL, CASE 2
