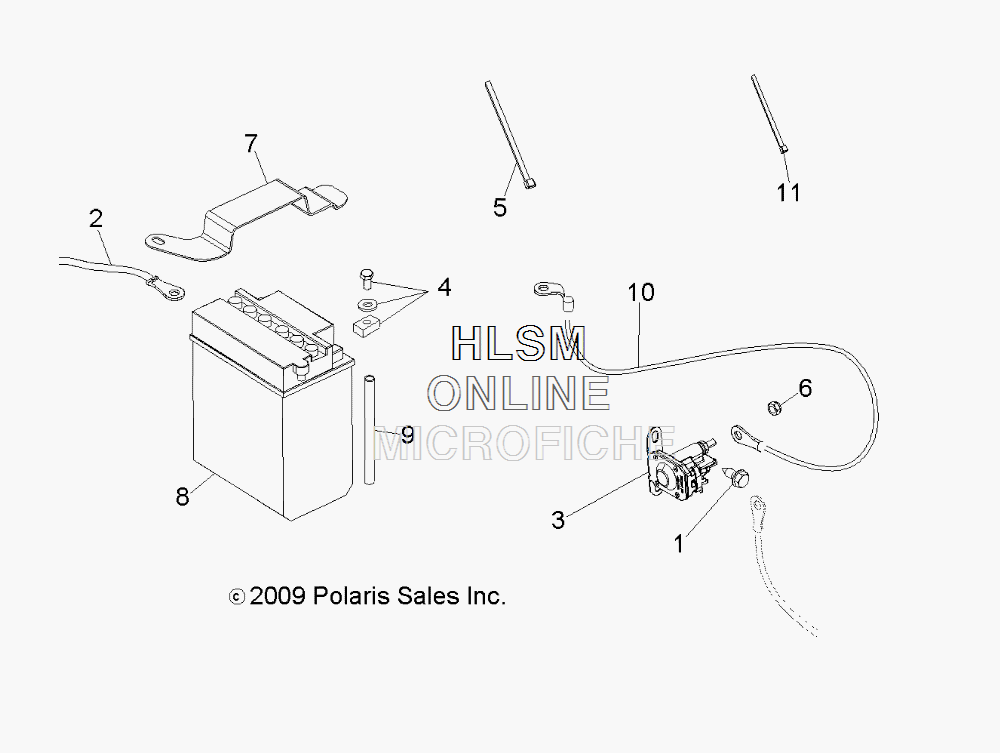

BATTERY для Polaris SCRAMBLER 500 4X4 (A11NG50AA) - 2011 года выпуска
-
№АртикулНазвание
-
17517386 SCREWSCREW
-
24011552 CABLE, GROUND, FRAME/BATTERYCABLE, GROUND, FRAME/BATTERY
-
34012001 SOLENOID, STARTERSOLENOID, STARTER
-
42200361 KIT, BATTERY BOLTKIT, BATTERY BOLT
-
57080492 CABLE TIECABLE TIE
-
67547270 NUTNUT
-
75253559 STRAP, BATTERYSTRAP, BATTERY
-
84140006 BATTERYBATTERY
-
95432077 TUBE, VENTTUBE, VENT
-
104010471 CABLE, BATTERY/SOLENOIDCABLE, BATTERY/SOLENOID
-
117080138 CABLE TIECABLE TIE
