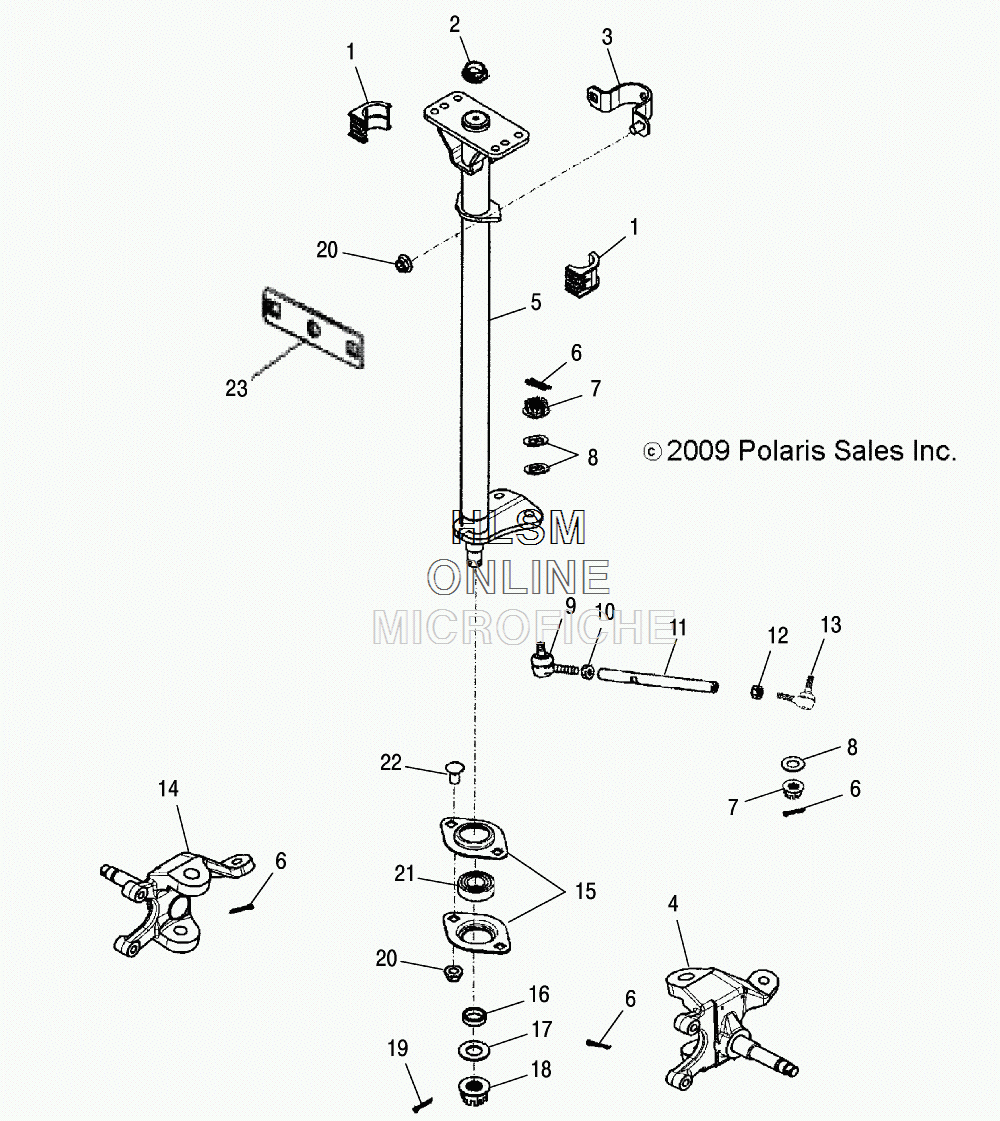

STEERING POST W/TIE RODS для Polaris PHOENIX 200 (A11PB20AB) - 2011 года выпуска
-
№АртикулНазвание
-
10452709 BUSHING, STEERING, UPPERBUSHING, STEERING, UPPER
-
20453125 CAP, RUBBERCAP, RUBBER
-
30454077 BRACKET, BUSHING, UPPER W/BOLTSBRACKET, BUSHING, UPPER W/BOLTS
-
40454646 ASM., KNUCKLE (LEFT)ASM., KNUCKLE (LEFT)
-
50454052-067 POST, STEERING (BLACK) (INCL. 2)POST, STEERING (BLACK) (INCL. 2)
-
60450719 PIN, COTTERPIN, COTTER
-
70450502 NUT, CASTLENUT, CASTLE
-
80450279 WASHERWASHER
-
90454743 ASM., END, TIE ROD (LEFT) (INCL. 10)ASM., END, TIE ROD (LEFT) (INCL. 10)
-
100453131 NUT, HEXNUT, HEX
-
110453802 TIE RODTIE ROD
-
120450224 NUT, JAMNUT, JAM
-
130454744 ASM., END, TIE ROD (RIGHT) (INCL. 12)ASM., END, TIE ROD (RIGHT) (INCL. 12)
-
140454647 ASM., KNUCKLE (RIGHT)ASM., KNUCKLE (RIGHT)
-
150452707 FLANGETTEFLANGETTE
-
160452719 SPACER, RINGSPACER, RING
-
170452671 WASHERWASHER
-
180452669 NUT, CASTLENUT, CASTLE
-
190450395 PIN, COTTERPIN, COTTER
-
200453866 NUTNUT
-
210453978 BEARING, BALLBEARING, BALL
-
220452776 BOLT, CARRIAGEBOLT, CARRIAGE
-
230454053 BRACKET, STEERING POSTBRACKET, STEERING POST
