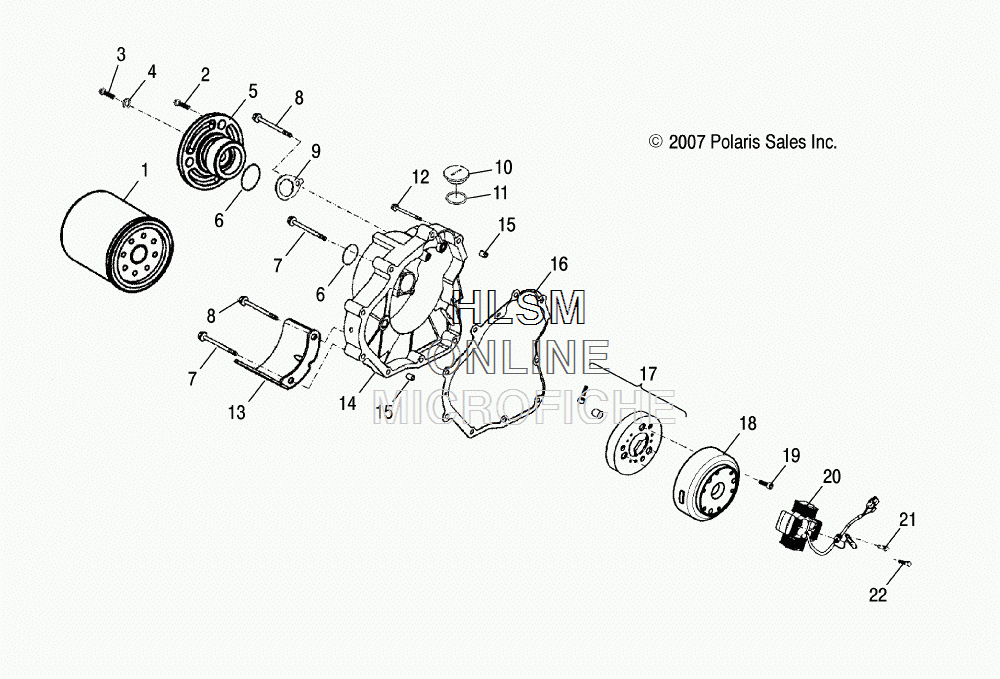

CRANKCASE COVER - RIGHT для Polaris PHOENIX 200 (A11PB20AB) - 2011 года выпуска
-
№АртикулНазвание
-
10452462 FILTER, OILFILTER, OIL
-
20452413 BOLTBOLT
-
30452463 BOLTBOLT
-
40452464 WASHER, FLAT, COPPERWASHER, FLAT, COPPER
-
50452458 CAP, COVER (RIGHT)CAP, COVER (RIGHT)
-
60453777 O-RINGO-RING
-
70452401 BOLTBOLT
-
80452330 BOLTBOLT
-
90452637 RETAINER, SIGHT GLASSRETAINER, SIGHT GLASS
-
100452460 CAPCAP
-
110452461 O-RINGO-RING
-
120452343 BOLTBOLT
-
130452636 SHIELDSHIELD
-
140452446 COVER, CRANKCASE (RIGHT)COVER, CRANKCASE (RIGHT)
-
150452342 PIN, DOWELPIN, DOWEL
-
160452447 GASKET, COVERGASKET, COVER
-
170452450 ASM., ONE WAY CLUTCHASM., ONE WAY CLUTCH
-
180452448 ASM., FLYWHEELASM., FLYWHEEL
-
190452457 BOLTBOLT
-
200452449 ASM., STATORASM., STATOR
-
210453029 BOLT W/WASHERBOLT W/WASHER
-
220452456 SCREWSCREW
