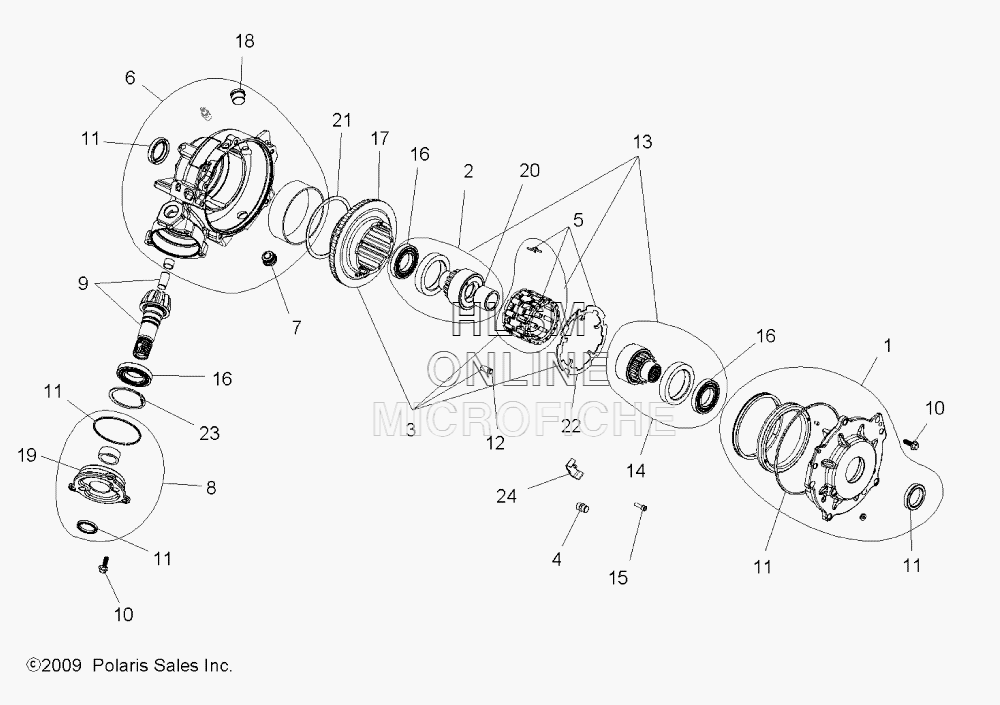

DRIVE TRAIN- FRONT GEARCASE [BUILT 11/01/09 AND BEFORE] для Polaris SPORTSMAN 500 HO INTL (A10MH50FX) (SAGE BRUSH GREEN METALLIC) - 2010 года выпуска`
-
№АртикулНазвание
-
111332772 ASM., GEARCASE, FRONT (INCL. ALL)ASM., GEARCASE, FRONT (INCL. ALL)
-
13234402 ASM., COVER, OUTPUT (INCL. COIL, THRUST PLATE, O-RING, SEAL, INSERT, SET SCREW)ASM., COVER, OUTPUT (INCL. COIL, THRUST PLATE, O-RING, SEAL, INSERT, SET SCREW)
-
23234403 ASM., HUB, RACE/OUTPUT (INCL. BEARING, HUB ASM., SPACER)ASM., HUB, RACE/OUTPUT (INCL. BEARING, HUB ASM., SPACER)
-
33234897 ASM., CLUTCH (INCL. ARMATURE PLATE, CLUTCH HOUSING/RING GEAR, ROLL CAGE)ASM., CLUTCH (INCL. ARMATURE PLATE, CLUTCH HOUSING/RING GEAR, ROLL CAGE)
-
43234594 ASM., THRUST BUTTON (INCL. SEAL)ASM., THRUST BUTTON (INCL. SEAL)
-
53234466 ASM., ROLL CAGE (INCL. ROLL CAGE, ARMATURE PLATE)ASM., ROLL CAGE (INCL. ROLL CAGE, ARMATURE PLATE)
-
63234411 ASM., GEARCASE (INCL. BUSHINGS, SEAL, VENT, PLUGS)ASM., GEARCASE (INCL. BUSHINGS, SEAL, VENT, PLUGS)
-
73234412 ASM., DRAIN PLUG, MAGNETIC (INCL. MAGNET)ASM., DRAIN PLUG, MAGNETIC (INCL. MAGNET)
-
83234463 ASM., COVER, INPUT (INCL. BUSHING, O-RING, SEAL)ASM., COVER, INPUT (INCL. BUSHING, O-RING, SEAL)
-
93234415 ASM., GEAR, PINION (INCL. PIN)ASM., GEAR, PINION (INCL. PIN)
-
103234405 KIT, BOLT (INCL. ALL BOLTS)KIT, BOLT (INCL. ALL BOLTS)
-
113234406 KIT, SEAL REPAIR (INCL. ALL SEALS, O-RINGS}KIT, SEAL REPAIR (INCL. ALL SEALS, O-RINGS}
-
123234836 KIT, ROLLER, OVERSIZED (INCL. COMPLETE SET ROLLERS)KIT, ROLLER, OVERSIZED (INCL. COMPLETE SET ROLLERS)
-
133234464 KIT, CAGE, SPRING/OUTPUT HUBS (INCL. SPACER)KIT, CAGE, SPRING/OUTPUT HUBS (INCL. SPACER)
-
143234465 HUB, OUTPUT RIGHT HAND (INCL. SPACER, BEARING, HUB, BUSHING)HUB, OUTPUT RIGHT HAND (INCL. SPACER, BEARING, HUB, BUSHING)
-
153234408 SET, SCREWSET, SCREW
-
163234390 BEARINGBEARING
-
173234896 CLUTCH, HOUSINGCLUTCH, HOUSING
-
183234414 PLUG, OIL FILLPLUG, OIL FILL
-
193234418 COVER, INPUTCOVER, INPUT
-
203234436 BUSHINGBUSHING
-
213234437 RING, SPACER, GEARRING, SPACER, GEAR
-
223234407 PLATE, ARMATUREPLATE, ARMATURE
-
233234416 RING, RETAININGRING, RETAINING
-
243234595 PLATE, THRUSTPLATE, THRUST
