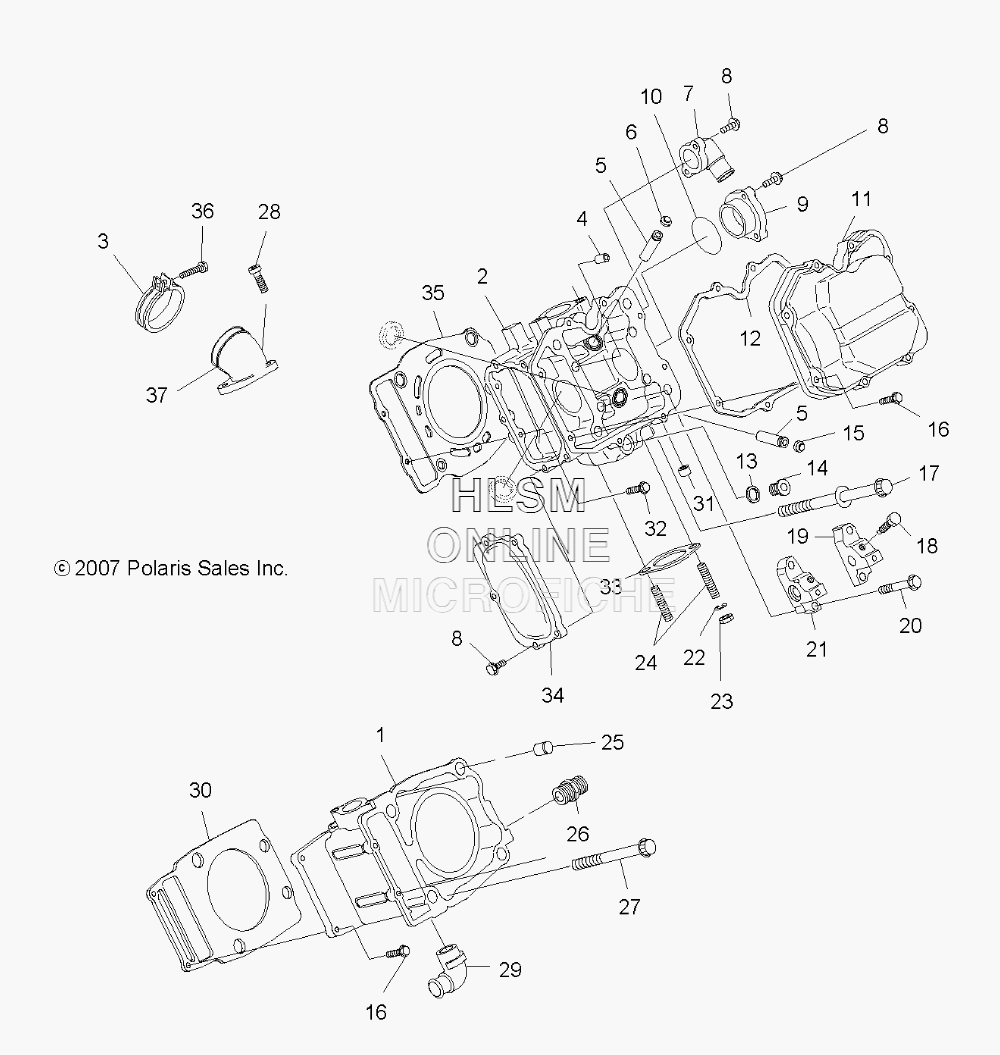

CYLINDER AND HEAD для Polaris SPORTSMAN 500 HO INTL (A10MH50FX) (SAGE BRUSH GREEN METALLIC) - 2010 года выпуска
-
№АртикулНазвание
-
13089256 ASM., CYLINDER (INCL. 29)ASM., CYLINDER (INCL. 29)
-
23085527 HEAD, CYLINDER, COMPLETE (INCL. 4-6,13-15,24,31)HEAD, CYLINDER, COMPLETE (INCL. 4-6,13-15,24,31)
-
33090209 ASM., BAND (INCL. 36)ASM., BAND (INCL. 36)
-
43084857 PIN, STRAIGHTPIN, STRAIGHT
-
53084994 GUIDE, VALVEGUIDE, VALVE
-
63090098 SEAL, EXHAUST VALVESEAL, EXHAUST VALVE
-
73084870 ADAPTERADAPTER
-
83084877 BOLT, FLANGEBOLT, FLANGE
-
93084866 ADAPTER, CAMSHAFTADAPTER, CAMSHAFT
-
103084867 O-RINGO-RING
-
113085073 COVER, ROCKERCOVER, ROCKER
-
123085074 GASKET, ROCKER COVERGASKET, ROCKER COVER
-
133084861 GASKETGASKET
-
143084860 PLUGPLUG
-
153090098 SEAL, EXHAUST VALVESEAL, EXHAUST VALVE
-
163084874 BOLT, FLANGEBOLT, FLANGE
-
173084875 BOLTBOLT
-
183085854 BOLT, ROCKER SHAFTBOLT, ROCKER SHAFT
-
193084864 SUPPORT, VALVE ROCKER SHAFTSUPPORT, VALVE ROCKER SHAFT
-
203084876 BOLTBOLT
-
213084863 SUPPORT, VALVE ROCKER SHAFTSUPPORT, VALVE ROCKER SHAFT
-
223080530 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
233087199 NUTNUT
-
243085326 STUDSTUD
-
253087266 PIPE, KNOCKPIPE, KNOCK
-
263089956 UNIONUNION
-
273084873 BOLT, FLANGEBOLT, FLANGE
-
283081330 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
293086747 PIPE, ELBOW, 2PIPE, ELBOW, 2
-
303089966 GASKET, CYLINDERGASKET, CYLINDER
-
313084862 PLUG, BLINDPLUG, BLIND
-
323086781 BOLT, FLANGEBOLT, FLANGE
-
333085075 GASKETGASKET
-
343089242 COVER, CAMSHAFTCOVER, CAMSHAFT
-
353085371 GASKET, HEADGASKET, HEAD
-
363081497 ASM., SCREW AND WASHERASM., SCREW AND WASHER
-
373085809 ADAPTERADAPTER
